D-Link DWR-933 User Manual

17D-Link DWR-933 User Manual
Section 3 - Conguration
In this section you have the option of changing your Wi-Fi access name and password as well as security features, which help protect your network
from unwanted intruders. Note that the 2.4 GHz and 5 GHz radios must be congured separately, but the options are the same.
Wi-Fi Status
Access Name Wi-Fi 2.4
GHz
Encryption Mode
WPA Mode
Cipher Mode
Pre -Shared Key
The name of your wireless access point.
By default encryption mode is set to Advanced
Protection. You may change this to Basic Protection
or No Protection but it is not recommended.
Auto (WPA or WPA2) - The router will automatically
determine the version of WPA to be used based on
the client that is connecting to it.
WPA2 - Clients will only be able to associate with the
router using the WPA2 standard. Clients which do not
support WPA2 will not be able to associate with the
router.
AES - A newer cipher used by the WPA2 standard.
Use of this cipher type is required in order to achieve
best speeds and maximum security.
AES/TKIP - TKIP is an encryption method commonly
used by older devices. Select this option for greater
compatibility with old and new devices.
The pre-shared key is the password which clients will
require in order to connect to your network. Enter a
password of between 8 and 63 characters in length.

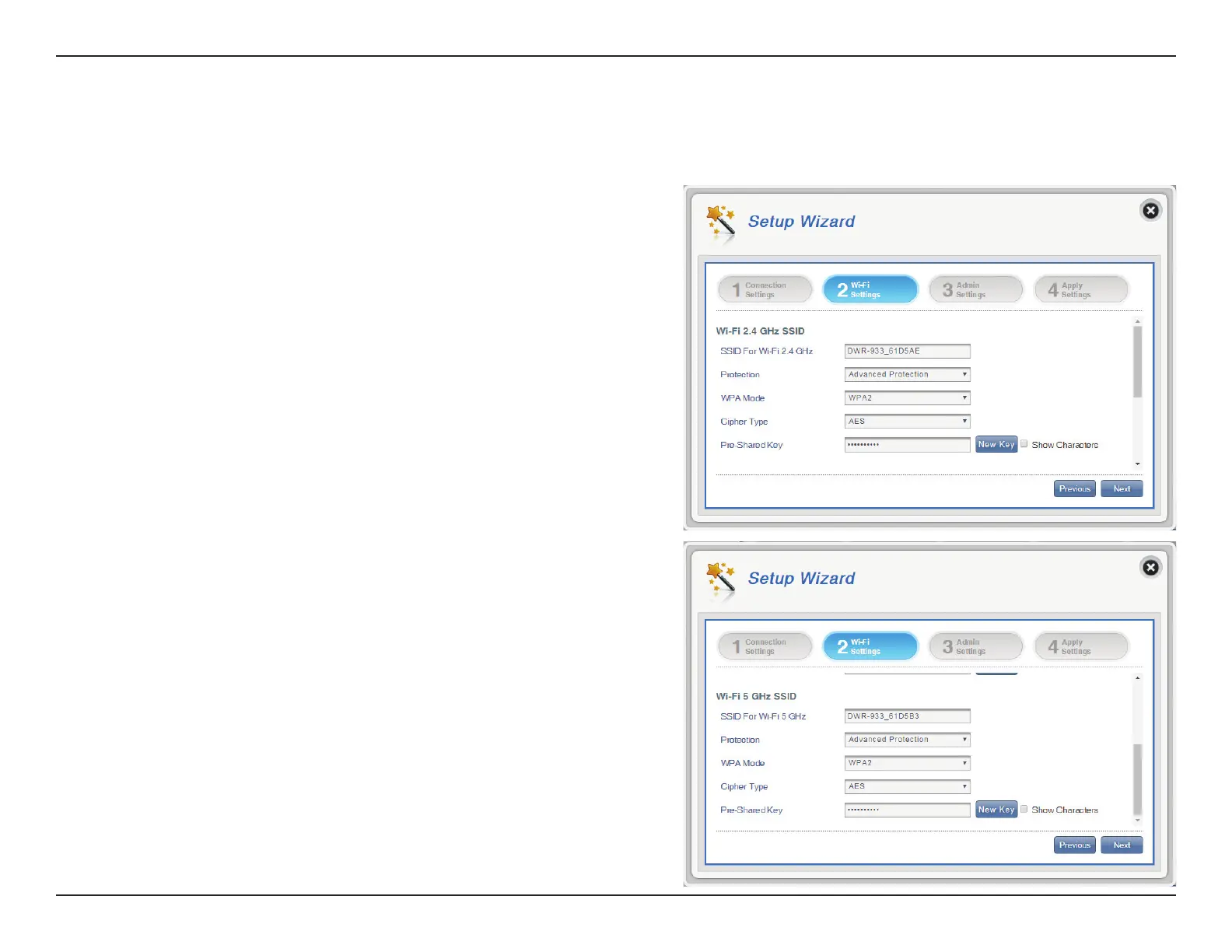

Wi-Fi 2.4/5 GHz SSID

D-Link DWR-933 Specifications

General

SIM card slot	Yes
3G/4G USB modem compatibility	No
Product type	Portable router
Product color	Black
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	- Mbit/s
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN interface type	Not available
4G standard	LTE
3G standards	DC-HSDPA, HSPA, HSPA+, WCDMA
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2, WPS
Number of products included	1 pc(s)
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	64 GB
Ethernet LAN (RJ-45) ports	0
Output current	1 A
Output voltage	5 V
Battery capacity	2800 mAh
Power source type	Battery
Battery life (max)	16 h
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	BSMI, RoHS
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	64 mm
Width	105 mm
Height	14 mm
Weight	140 g
