D-Link DWR-933 User Manual

32D-Link DWR-933 User Manual

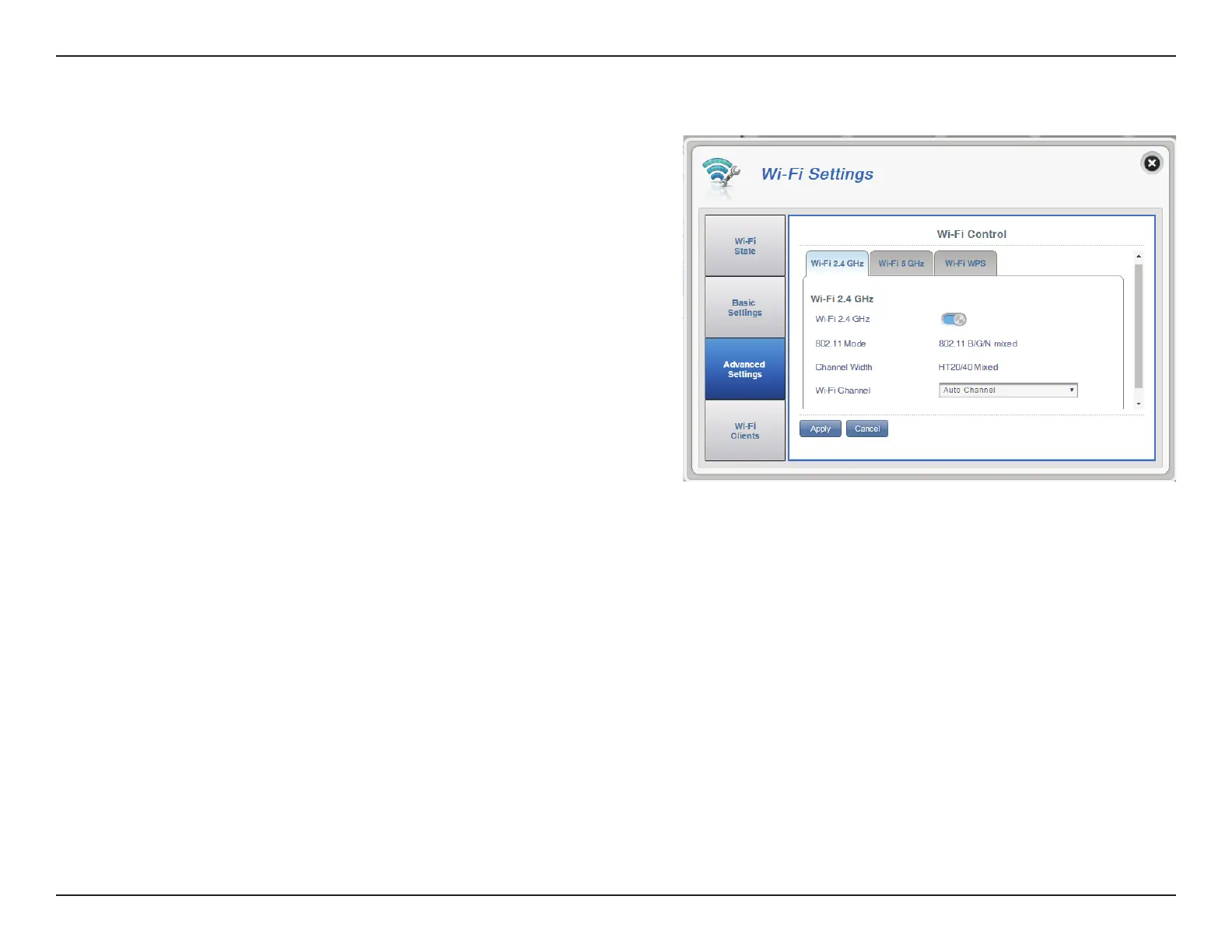

Section 3 - Conguration
Advanced Settings
Wi-Fi 2.4/5 GHz
802.11 Mode
Channel Width
Wi-Fi Channel
Toggle the switch to enable/disable Wi-Fi functionality
on your router.
Indicates the type of Wi-Fi connection currently being
accepted by the router.
Indicates the current channel width being used by your
router.
Choose the clearest channel to help optimize the
performance and coverage of your wireless network. By
default the channel is set to Auto Channel. This can be
changed to t the channel setting for an existing wireless
network or to customize your wireless network. Note that
not all channels are available in all regions. If you cannot
see your SSID from your device, try manually setting a
low-numbered channel.
Click Apply to save changes.
Wi-Fi 2.4/5 GHz

D-Link DWR-933 Specifications

General

SIM card slot	Yes
3G/4G USB modem compatibility	No
Product type	Portable router
Product color	Black
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	- Mbit/s
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN interface type	Not available
4G standard	LTE
3G standards	DC-HSDPA, HSPA, HSPA+, WCDMA
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2, WPS
Number of products included	1 pc(s)
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	64 GB
Ethernet LAN (RJ-45) ports	0
Output current	1 A
Output voltage	5 V
Battery capacity	2800 mAh
Power source type	Battery
Battery life (max)	16 h
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	BSMI, RoHS
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	64 mm
Width	105 mm
Height	14 mm
Weight	140 g
