D-Link DWR-933 User Manual

47D-Link DWR-933 User Manual
Section 3 - Conguration

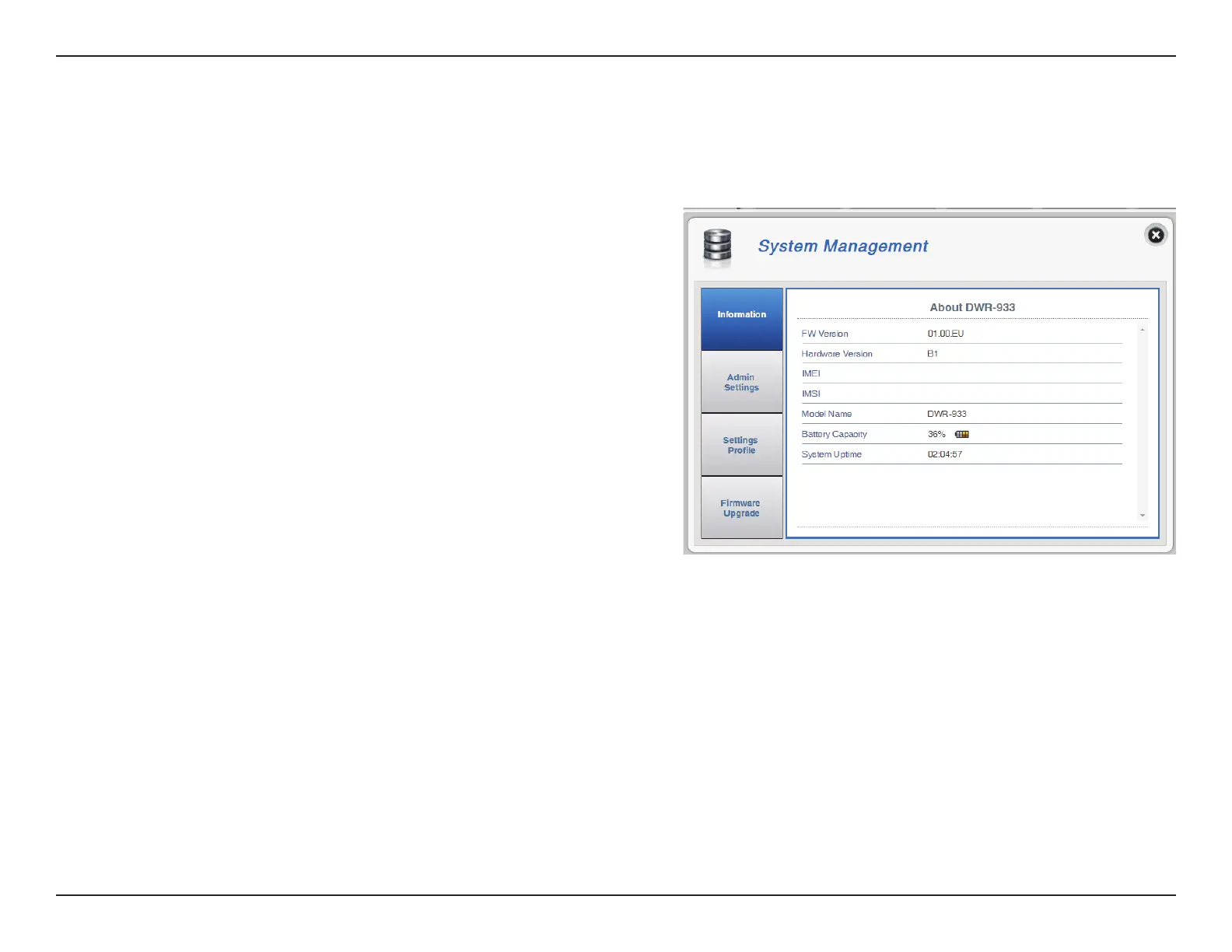

System
System Information
FW Version
Hardware Version
IMEI
SIM IMSI
Model Name
Battery Capacity
System Uptime
The current rmware version of the DWR-933.
The current rmware version of the DWR-933.
International Mobile Equipment Identity is a unique
number assigned to every mobile device.
The SIM/USIM card has a unique number called an
International Mobile Subscriber Identity (IMSI). This
is used to identify and authenticate users on cellular
devices.
The model name of your D-Link router.
Your router’s battery capacity expressed as a percent.
The length of time since last restart.
Note: The FW version number and Modem Version
number displayed on the image above may dier from
the model you have purchased due to rmware updates
or regional variation.
About DWR-933

D-Link DWR-933 Specifications

General

SIM card slot	Yes
3G/4G USB modem compatibility	No
Product type	Portable router
Product color	Black
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	- Mbit/s
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN interface type	Not available
4G standard	LTE
3G standards	DC-HSDPA, HSPA, HSPA+, WCDMA
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2, WPS
Number of products included	1 pc(s)
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	64 GB
Ethernet LAN (RJ-45) ports	0
Output current	1 A
Output voltage	5 V
Battery capacity	2800 mAh
Power source type	Battery
Battery life (max)	16 h
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	BSMI, RoHS
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	64 mm
Width	105 mm
Height	14 mm
Weight	140 g
