D-Link DWR-933 User Manual

33D-Link DWR-933 User Manual
Section 3 - Conguration

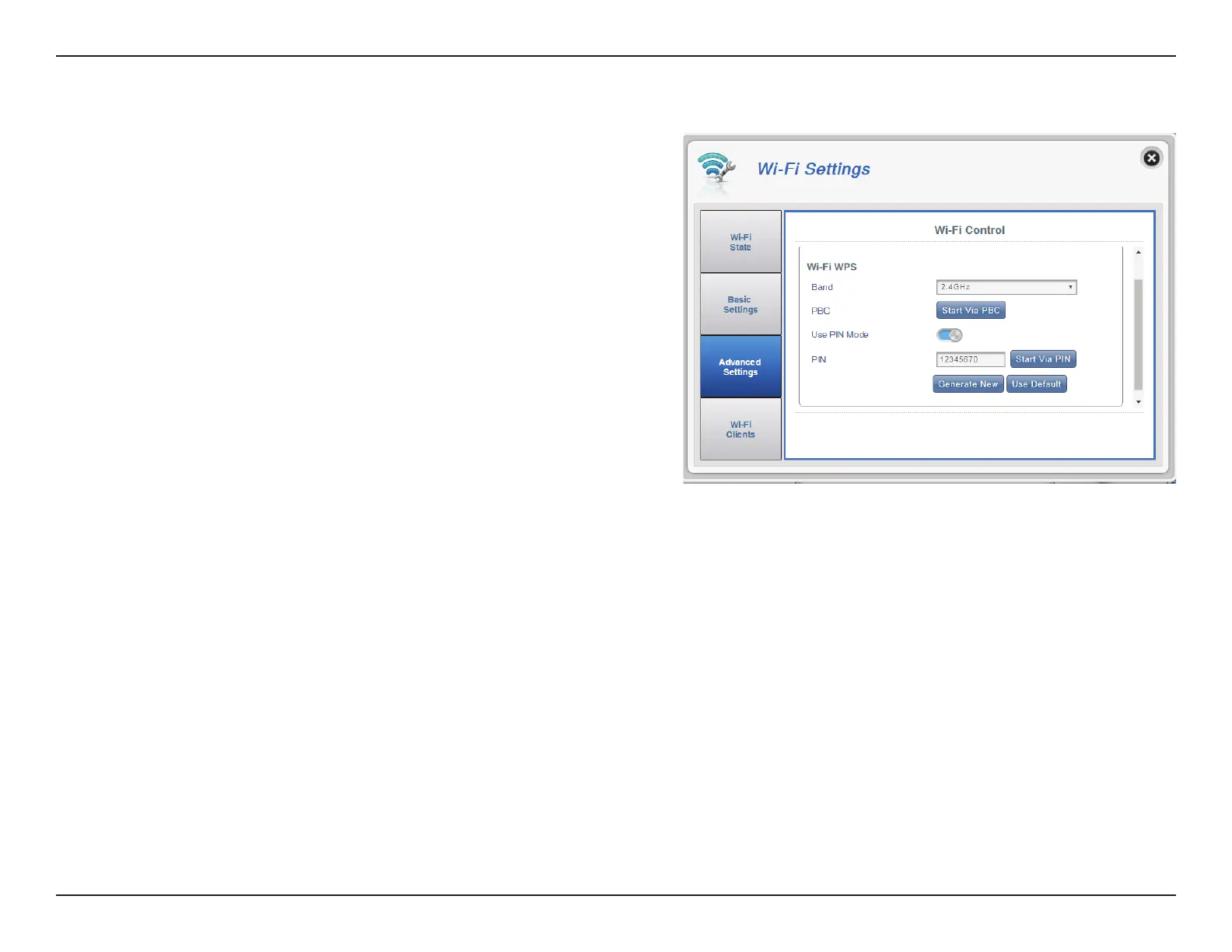

Wi-Fi WPS
Band
PBC
Use PIN Mode
PIN
Select the band to which the WPS settings will apply.
Push Button Conguration (PBC) enables you to easily
connect your devices to the DWR-933 by pushing a PBC
button on both devices. Press your device’s PBC button
and then click Start Via PBC, to begin the WPS process.
Move the toggle to enable PIN protection for use with
the WPS feature.
Note: WPS PIN Mode is disabled by default. This mode is
less secure and is not recommended. It is retained in this
product for compatibility purposes only.
The PIN is a unique number that can be used to
congure your router. Click Generate New to generate
a new random PIN, or select Use Default to restore
the factory PIN. Note that if the WPS PIN feature is
enabled, using a new PIN is strongly recommended.
Click Apply to save changes.

D-Link DWR-933 Specifications

General

SIM card slot	Yes
3G/4G USB modem compatibility	No
Product type	Portable router
Product color	Black
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	- Mbit/s
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN interface type	Not available
4G standard	LTE
3G standards	DC-HSDPA, HSPA, HSPA+, WCDMA
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2, WPS
Number of products included	1 pc(s)
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	64 GB
Ethernet LAN (RJ-45) ports	0
Output current	1 A
Output voltage	5 V
Battery capacity	2800 mAh
Power source type	Battery
Battery life (max)	16 h
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	BSMI, RoHS
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	64 mm
Width	105 mm
Height	14 mm
Weight	140 g
