D-Link DWR-933 User Manual

19D-Link DWR-933 User Manual
Section 3 - Conguration

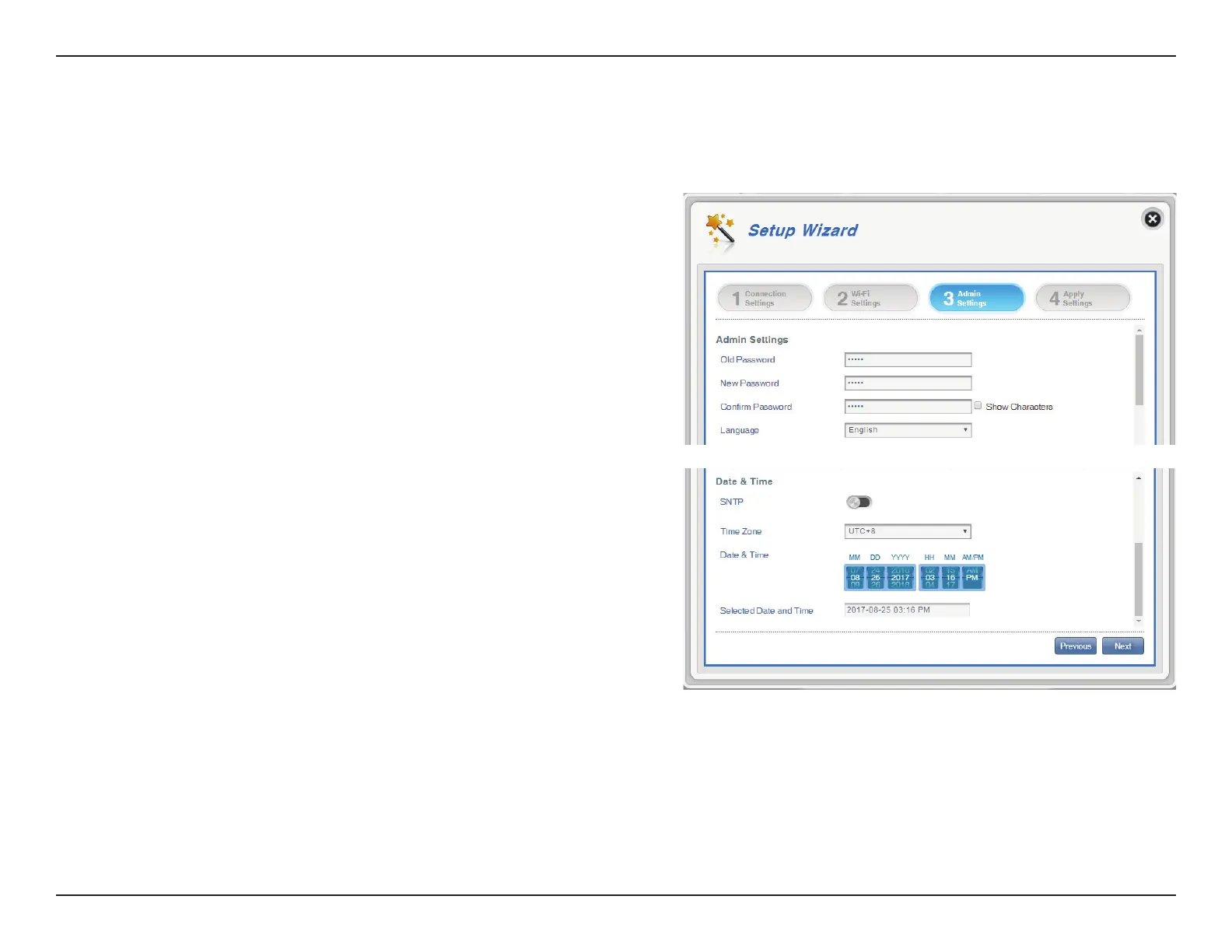

Admin Settings
Enter your desired username here.
Enter your desired password here.
Re-enter your password to conrm.
Select your desired interface language
here.
In this section, you can adjust your admin username and password for logging
in via your web browser, as well as the time and date.
Admin Settings
Date & Time
SNTP
Time Zone
Date & Time
Selected Date and Time
Toggle the switch to Enable or Disable to
automatically synchronize the time with a Simple
Network Time Protocol (SNTP) server.
Select your current time zone relative to UTC
(Coordinated Universal Time).
Adjust the dials on the screen with your mouse
cursor or pointer to set the time and date.
Displays your new, dial-adjusted time.
Username
Password
Conrm Password:
Language
If SNTP is Disabled:

D-Link DWR-933 Specifications

General

SIM card slot	Yes
3G/4G USB modem compatibility	No
Product type	Portable router
Product color	Black
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	- Mbit/s
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN interface type	Not available
4G standard	LTE
3G standards	DC-HSDPA, HSPA, HSPA+, WCDMA
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2, WPS
Number of products included	1 pc(s)
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	64 GB
Ethernet LAN (RJ-45) ports	0
Output current	1 A
Output voltage	5 V
Battery capacity	2800 mAh
Power source type	Battery
Battery life (max)	16 h
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	BSMI, RoHS
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	64 mm
Width	105 mm
Height	14 mm
Weight	140 g
