Configuration D-Link Web Smart Switch User Manual
5
5
3
3

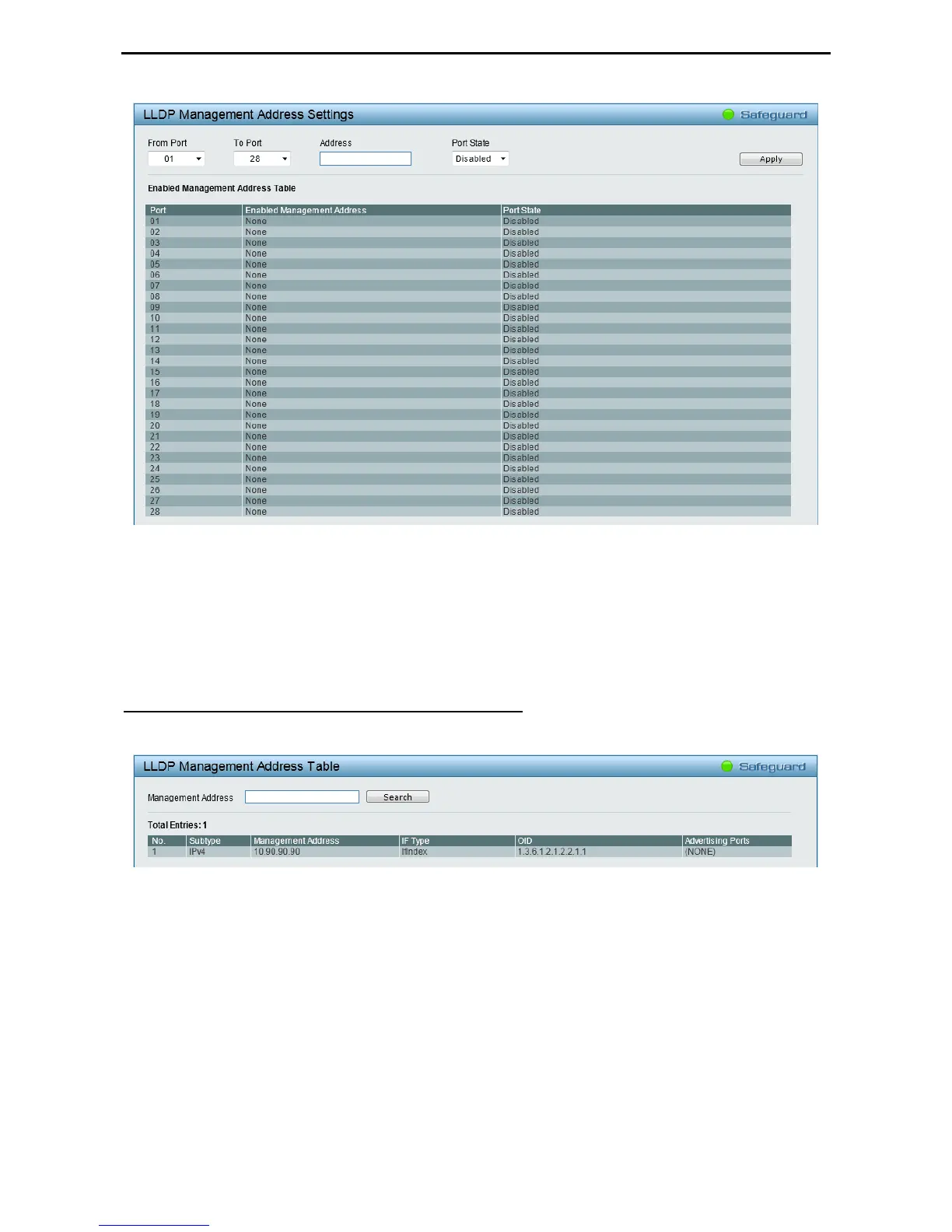

Figure 4.59 – L2 Functions > LLDP > LLDP Management Address Settings
From Port / To Port: A consecutive group of ports may be configured starting with the selected port.
Address: Enter the management IPv4 address.
Port State: Specify whether the Port State is enabled on the port.
Click Apply to implement the changes made.
The LLDP Management Address Table page displays the detailed management address information for the
entry.
L2 Functions > LLDP > LLDP Management Address Table
Figure 4.60 – L2 Functions > LLDP > LLDP Management Address Table
Management Address: Enter the IP address. Click Search and the table will update and display the values
required.
Subtype: Displays the managed address subtype. For example, MAC address or IPv4 address.
Management Address: Displays the IP address.
IF Type: Displays the IF Type.
OID: Displays the SNMP OID.
Advertising Ports: Displays the advertising ports.
