To view the statistics of individual ports, click one of the linked port numbers for details.

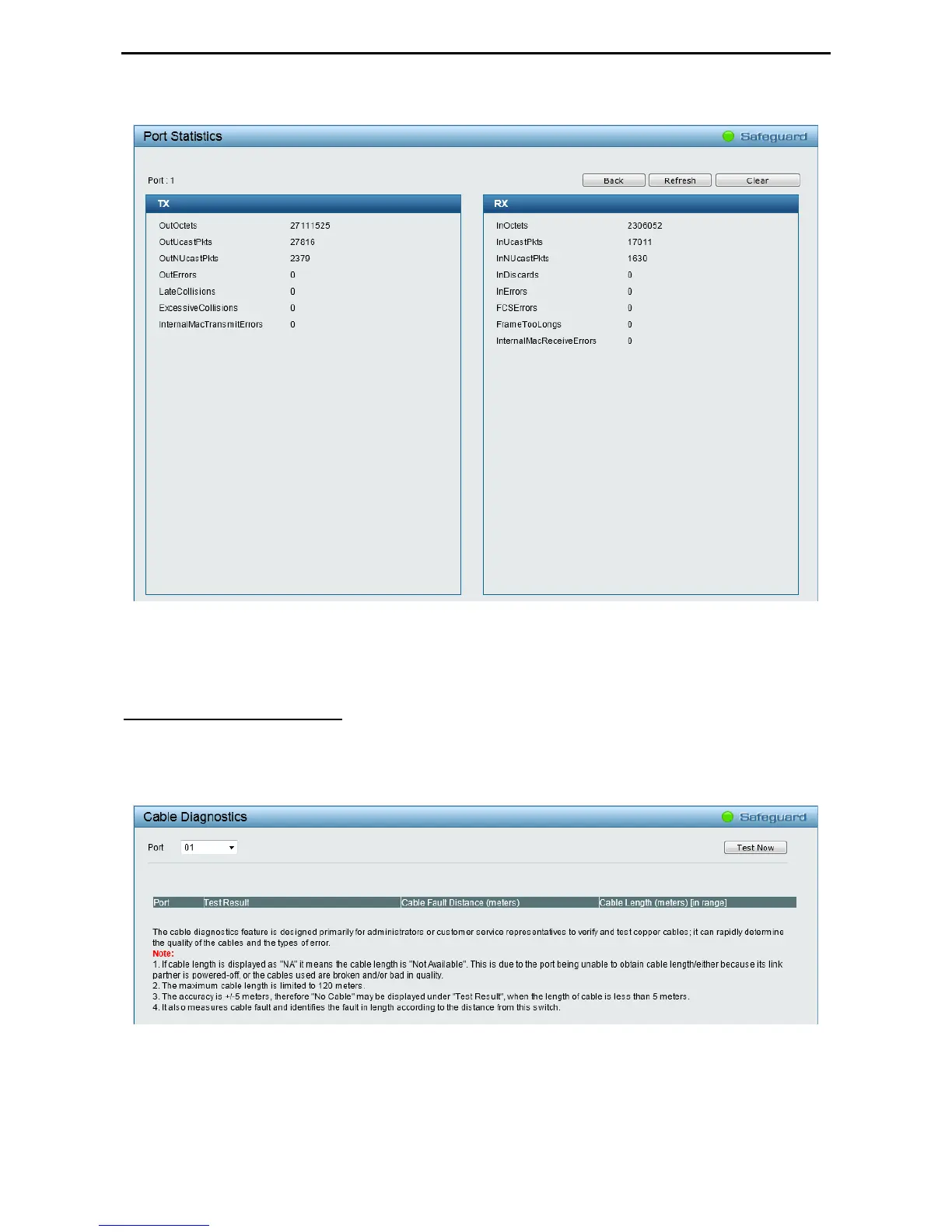

Figure 4.109 – Monitoring > Port Statistics
Click Back to go back to the previous page. Click Refresh to renew the information. Click Clear to reset the
details.
The Cable Diagnostics is designed primarily for administrators and customer service representatives to
examine the copper cable quality. It rapidly determines the type of cable errors occurred in the cable.
Monitoring > Cable Diagnostics
Select a port and then click the Test Now button to start the diagnosis.
Figure 4.110 – Monitoring > Cable Diagnostic
Test Result: The description of the cable diagnostic results.
• OK means the cable is good for the connection.
• Short in Cable means the wires of the RJ45 cable may be in contact somewhere.
