Indoor Unit SiBE121123_A
33 Printed Circuit Board Connector Wiring Diagram
1.3 FTXS35/42/50K2V1B, FTXS20/25/35/42/50J2V1B,
ATXS20/25/35/42/50G2V1B

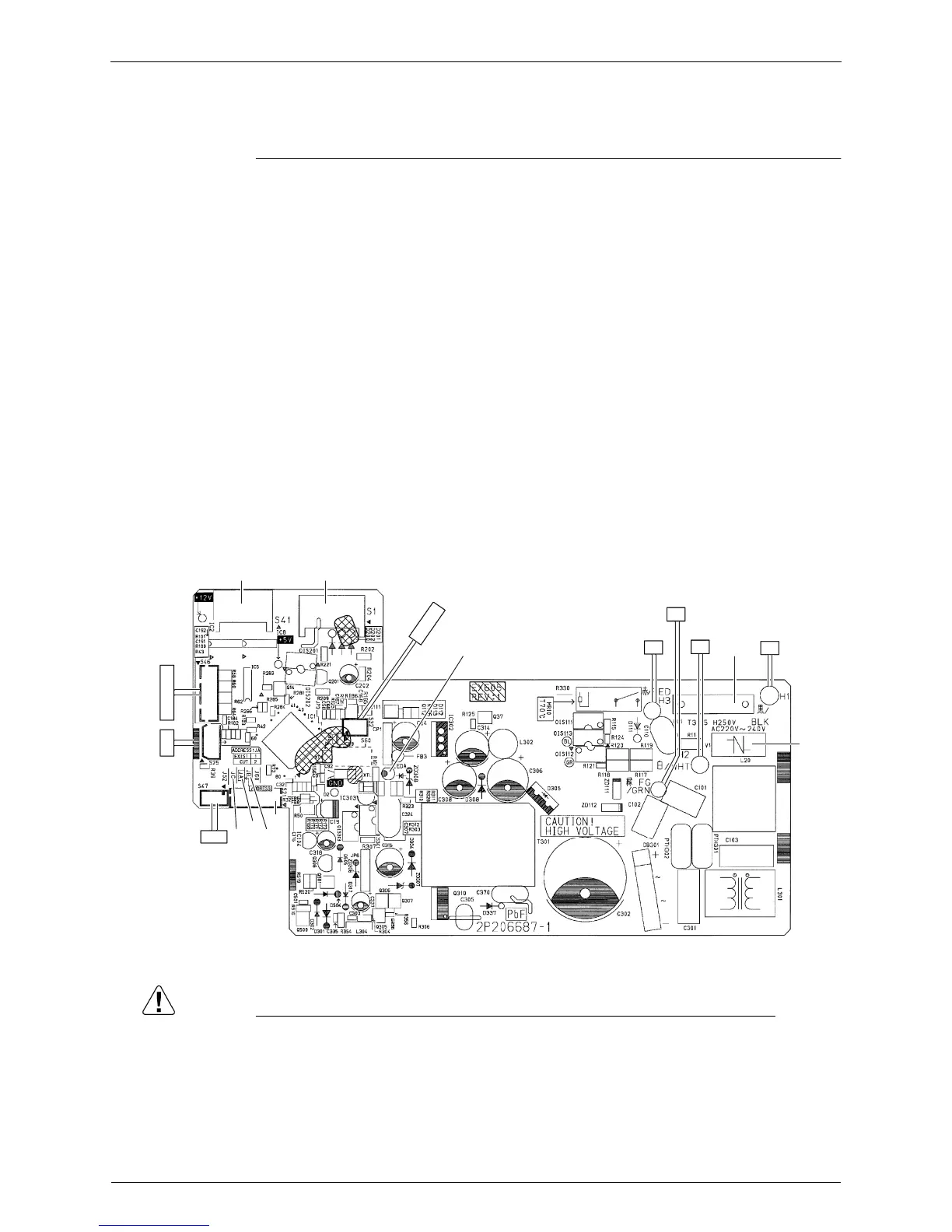

Control PCB
Caution Replace the PCB if you accidentally cut the jumpers other than JA, JB and JC.
Jumpers are necessary for electronic circuit. Improper operation may occur if you cut any of
them.
1) S1 Connector for DC fan motor
2) S21 Connector for centralized control (HA)
3) S25 Connector for INTELLIGENT EYE sensor PCB
4) S32 Indoor heat exchanger thermistor
5) S41 Connector for swing motors
6) S46 Connector for display PCB
7) S47 Connector for signal receiver PCB
8) H1, H2, H3,
FG
Connector for terminal board
9) JA Address setting jumper
Refer to page 226 for detail.
10) JB Fan speed setting when compressor stops for thermostat OFF
JC Power failure recovery function (auto-restart)
Refer to page 230 for detail.
11) LED A LED for service monitor (green)
12) FU1 (F1U) Fuse (3.15 A, 250 V)
13) V1 Varistor
V1
FU1
S1S41
S21
S47
JB
JA
JC
S46
S25
LED A
S32
FG
H1H2H3
2P206687-1
2P206687-5
