SiBE041101 Indoor Unit
Removal Procedure 136

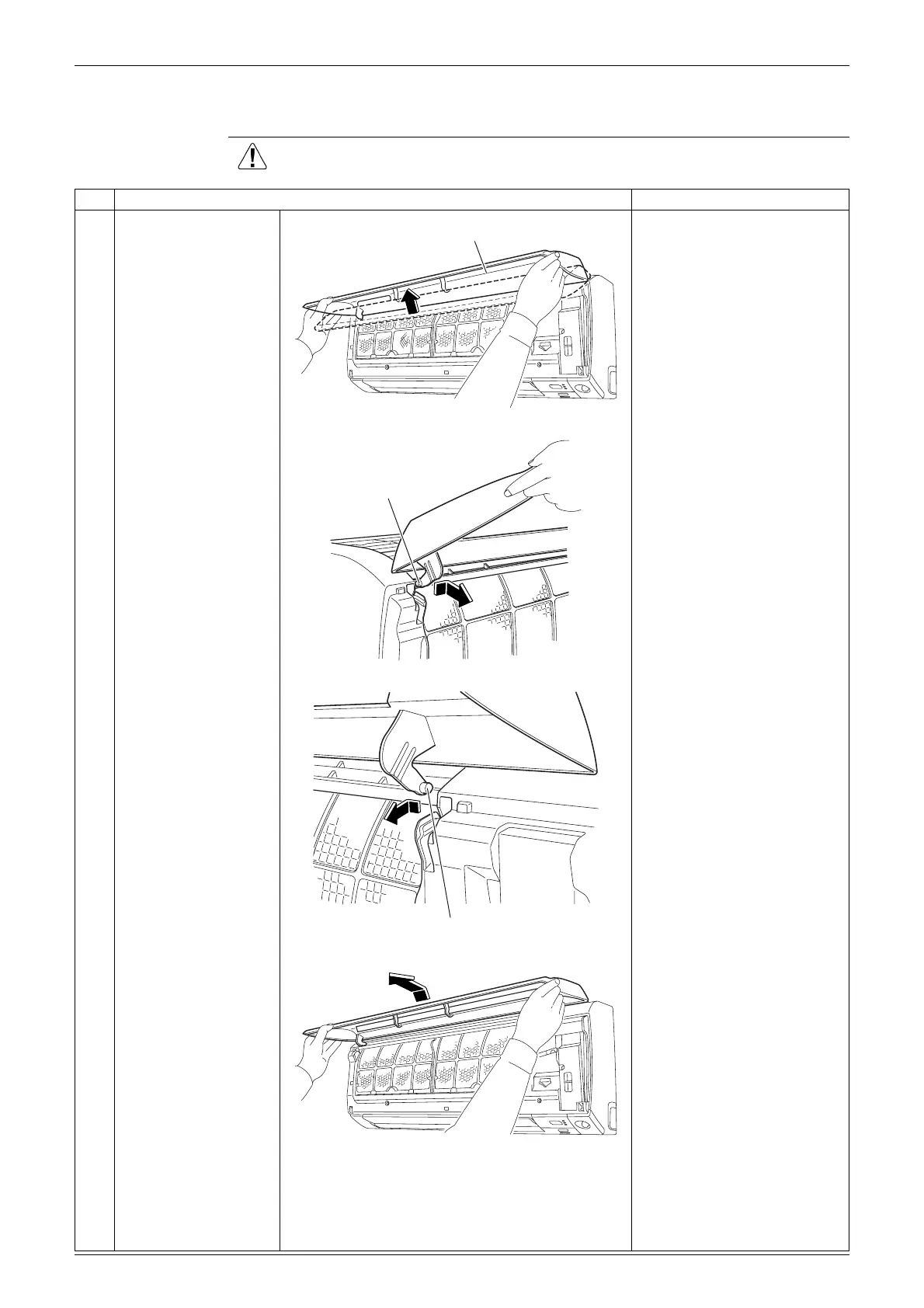

1.2 Removal of Front Panel
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1
Hold the both sides of
the front panel, and
open the panel over the
position where it stops.
2
Slide the left rotary
shaft to the right and
release it.
3
Slide the right rotary
shaft to the left and
release it.
4
Remove the front panel.
(R7906)
Front panel
(R7907)
Rotary shaft
(R7909)
Rotary shaft
(R7910)
