Outdoor Unit - RK(X)S42J2V1B SiBE041101

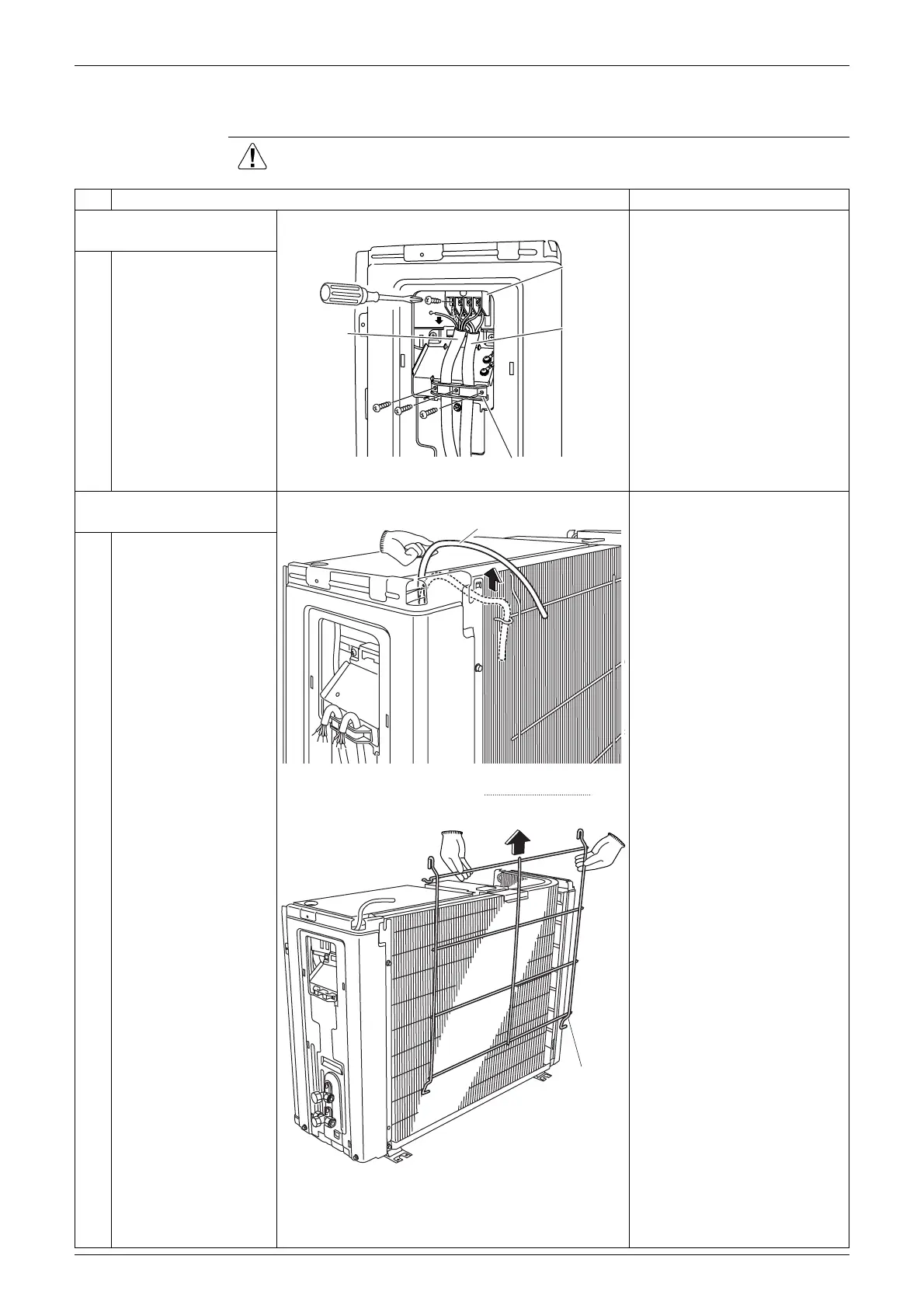

193 Removal Procedure
3.2 Removal of Electrical Box
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1. Disconnect the
connecting wires.

When reassembling, fasten
the wires with screws on the
terminal board.
1
Remove the 3 screws
to remove the wiring
fixture.
Then remove the all
screws to disconnect
the power supply
cables and the
connecting wires.
2. Remove the electrical
box.
1
Release the outdoor
temperature thermistor.
2
Lift up the guard net
and remove it.
(R12192)
Wiring fixture
Power
supply
cable
Connecting
wire
Terminal
board
(R12193)
Outdoor temperature thermistor
(R8143)
Guard net
