Daikin J-Series User Manual

SiBE041101 Outdoor Unit - RK(X)S50J2V1B
Removal Procedure 234

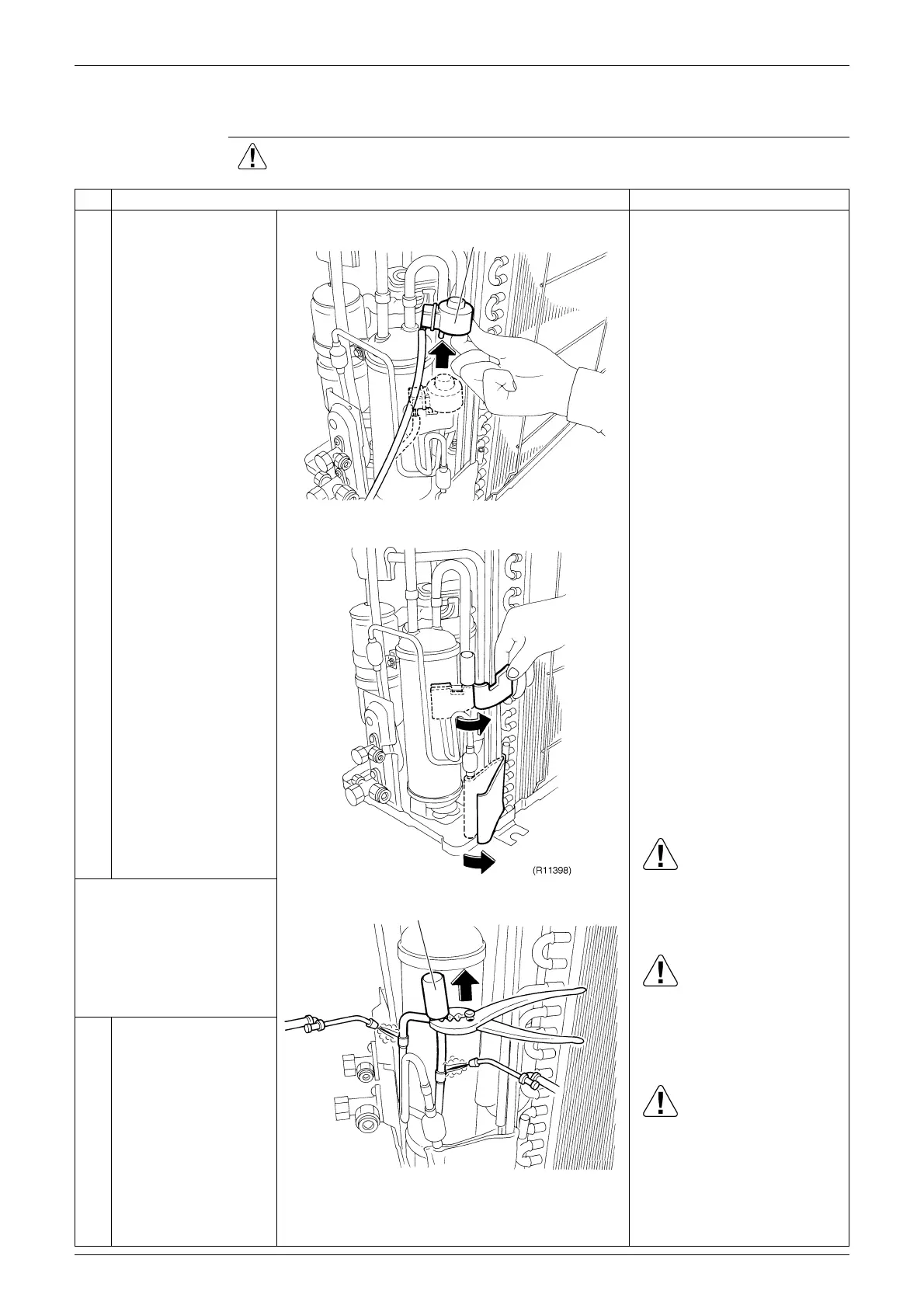

4.7 Removal of Electronic Expansion Valve
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1
Pull out the electronic
expansion valve coil.
2
Remove the sheets of
putty.
Warning
Be careful not to get yourself
burnt with the pipes and other
parts that are heated by the
gas brazing machine.
Warning
If the refrigerant gas leaks
during work, ventilate the
room. (If the refrigerant gas is
exposed to flames, toxic gas
may be generated.)
Caution
From the viewpoint of global
environment protection, do
not discharge the refrigerant
gas in the atmosphere. Make
sure to collect all the
refrigerant gas.

Before working, make
sure that the refrigerant
gas is empty in the circuit.

Be sure to apply nitrogen
replacement when
heating up the brazed
part.
3
Heat up the 2 brazed
parts of the electronic
expansion valve and
remove it.
Electronic expansion valve coil
(R2737)
Electronic expansion valve
(R2739)
