Daikin J-Series User Manual

Outdoor Unit - RK(X)S42J2V1B SiBE041101
203 Removal Procedure
3.4 Removal of Sound Blankets
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points

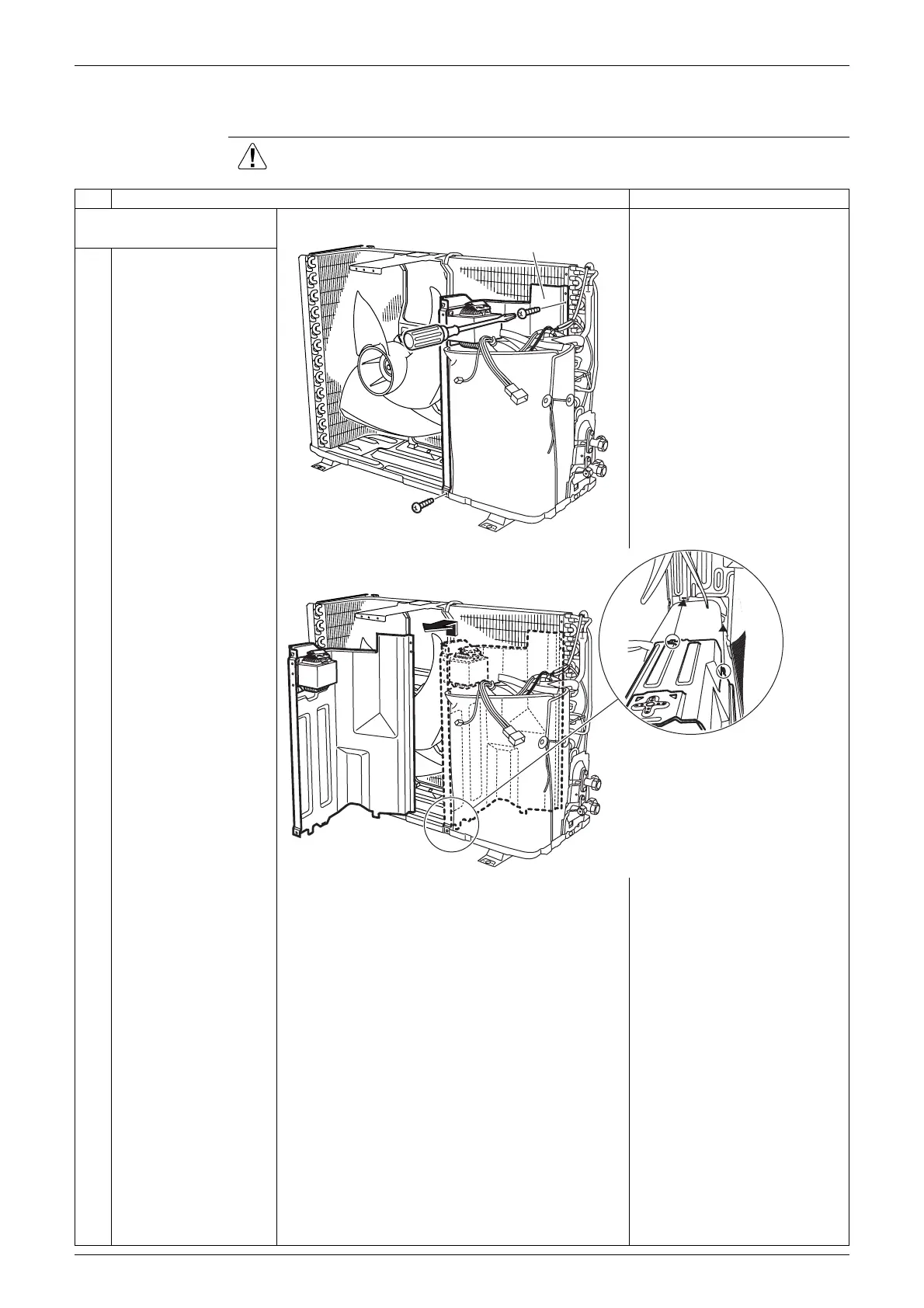

1. Remove the partition
plate.

When reassembling, fit the
lower hook into the bottom
frame.
1
Remove the 2 screws.
2
The partition plate has
hooks on the lower
side. Lift and pull the
partition plate to
remove.
(R12282)
Partition plate
(R8174)
(R8175)

Remove the screw to remove
the reactor.
