Daikin J-Series User Manual

SiBE041101 Outdoor Unit - RK(X)S42J2V1B
Removal Procedure 198

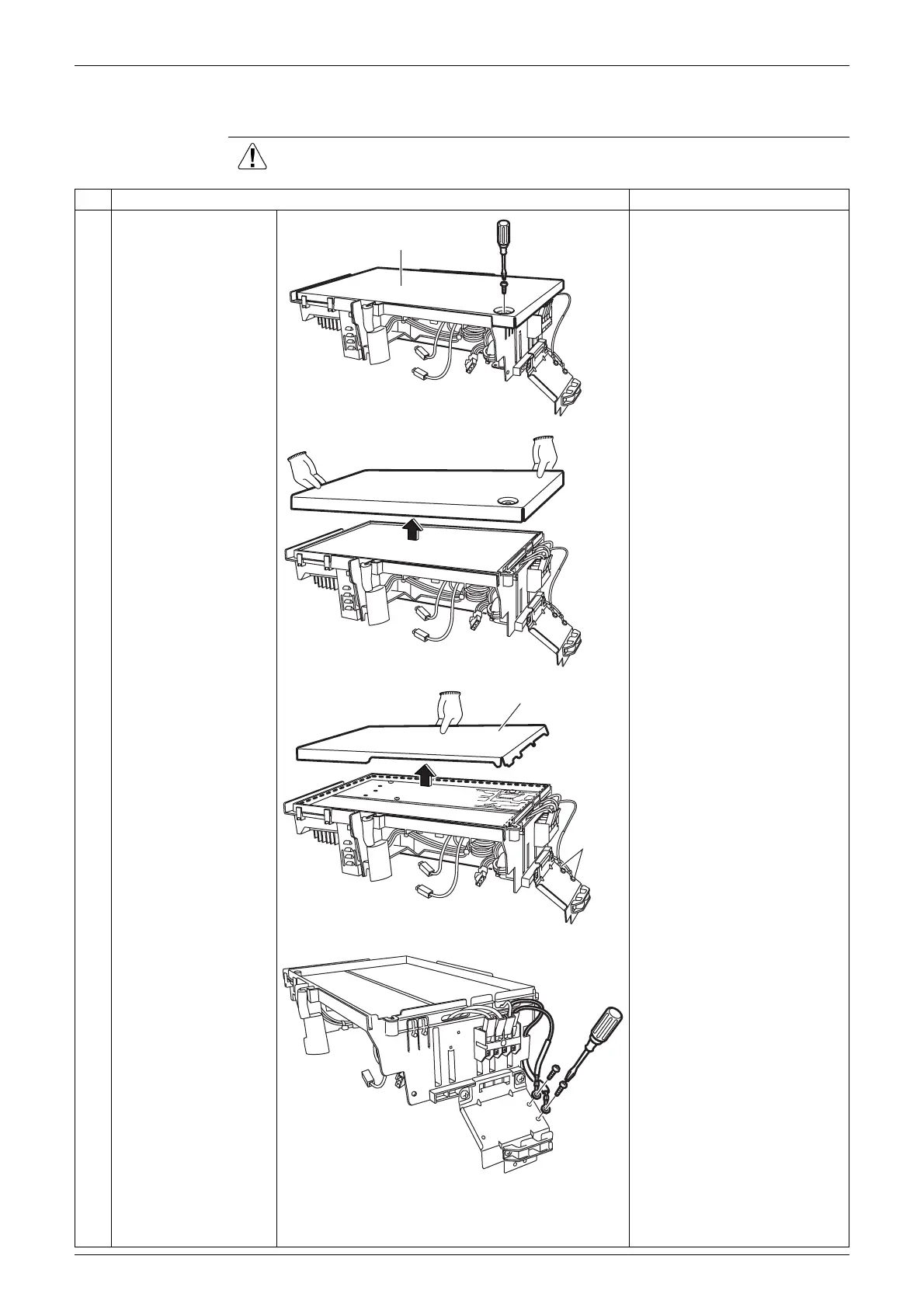

3.3 Removal of PCB
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1
Remove the screw and
remove the electrical
box cover.
Preparation

Remove the panels
according to the “Removal of
Outer Panels”.

Remove the electrical box
according to the “Removal of
Electrical Box”.
2
Detach the insulation
sheet.

The trimmed part goes front.
3
Remove the 2 screws
of the earth terminals.
(R12274)
Electrical box cover
(R8156)
(R8157)
Insulation
sheet
Earth
terminals
(R8158)
