Outdoor Unit - RK(X)S42J2V1B SiBE041101
191 Removal Procedure
3. Outdoor Unit - RK(X)S42J2V1B
Note: Illustrations are for heat pump models as representative.

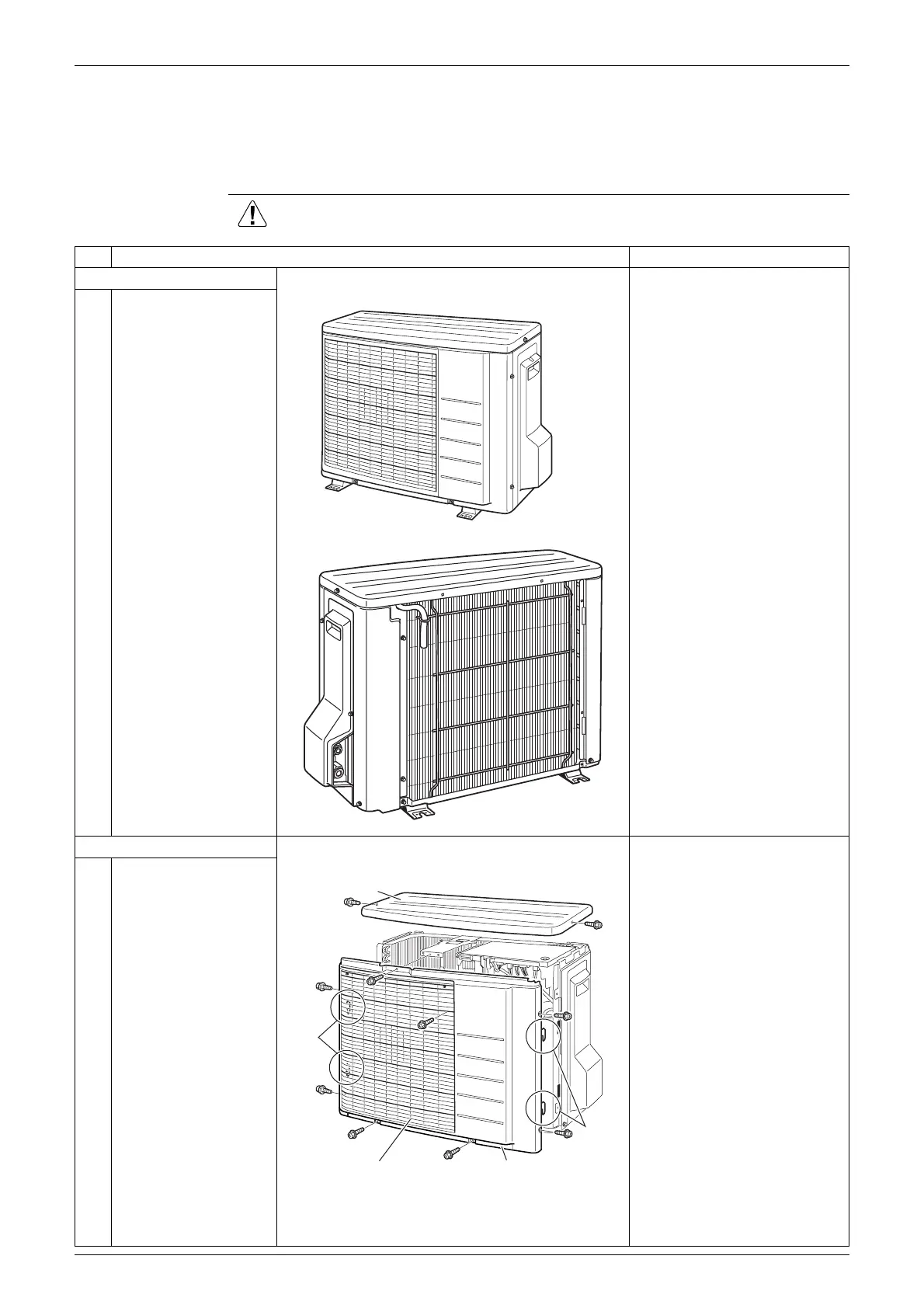

3.1 Removal of Outer Panels
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1. Appearance features
2. Remove the panels.
1
Remove the 2 screws
to remove the top
panel, and 8 screws to
remove the front panel.
The front panel has 4 hooks.
DAIKIN
INVERTER
(R7186)
(R12281)
(R9363)
Top panel
Hooks
Hooks
Discharge grille
Front panel
To Next Page
