Outdoor Unit - RK(X)S42J2V1B SiBE041101
205 Removal Procedure

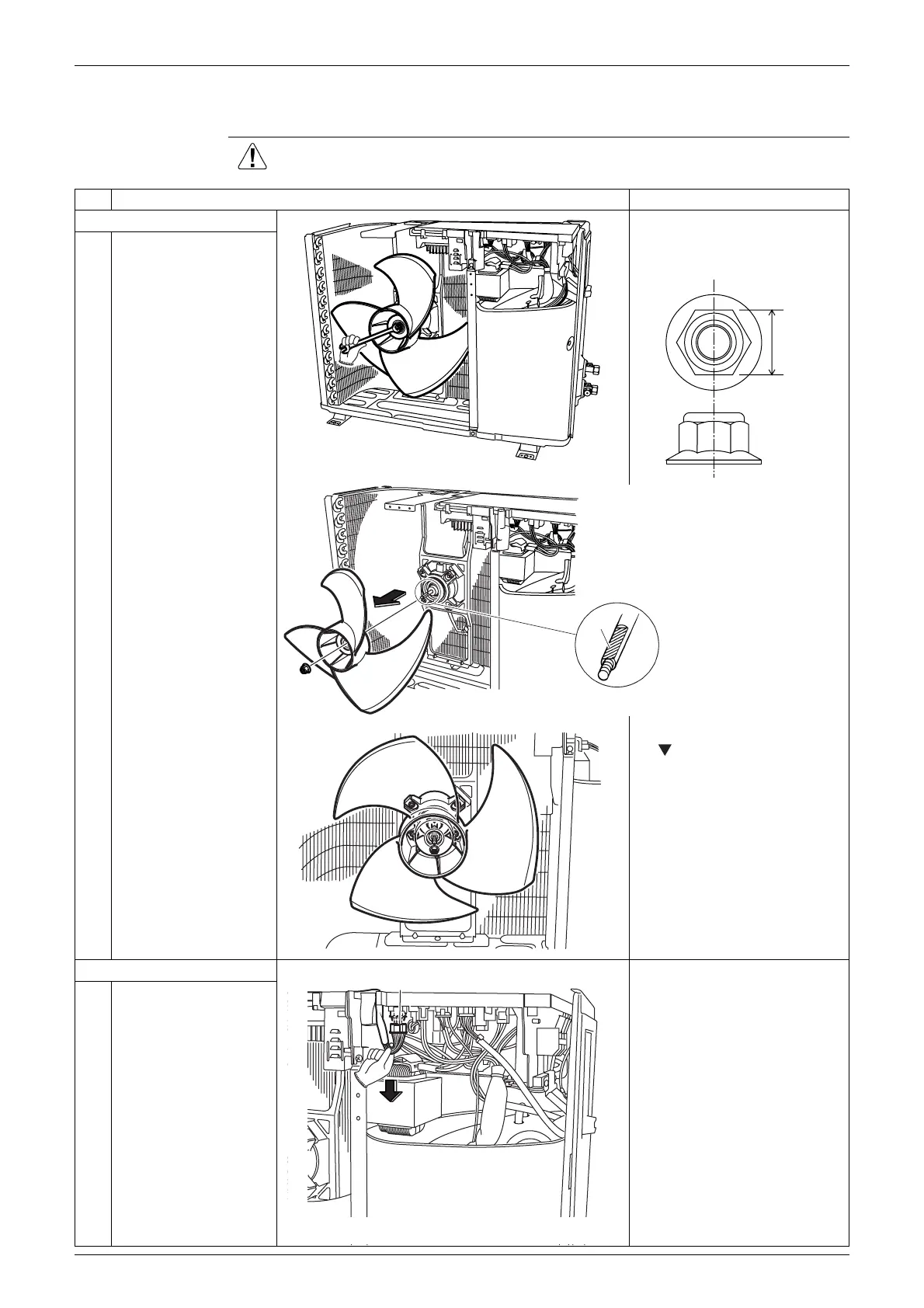

3.5 Removal of Outdoor Fan / Fan Motor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1. Remove the outdoor fan.

The screw has reverse
winding.

Nut size: M6
1
Remove the washer
fitted nut of the outdoor
fan.
2
Remove the outdoor
fan.

When reassembling, align
mark of the outdoor fan
with D-cut section of the
motor shaft.
2. Remove the fan motor.
1
Disconnect the
connector for the fan
motor [S70].
(R8181)
10 mm
(R12236)
(R8182)
D-cut
(R8183)
(R8184)
[S70]
