SiBE041101 Indoor Unit
Removal Procedure 138
1.3 Removal of Front Grille
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points

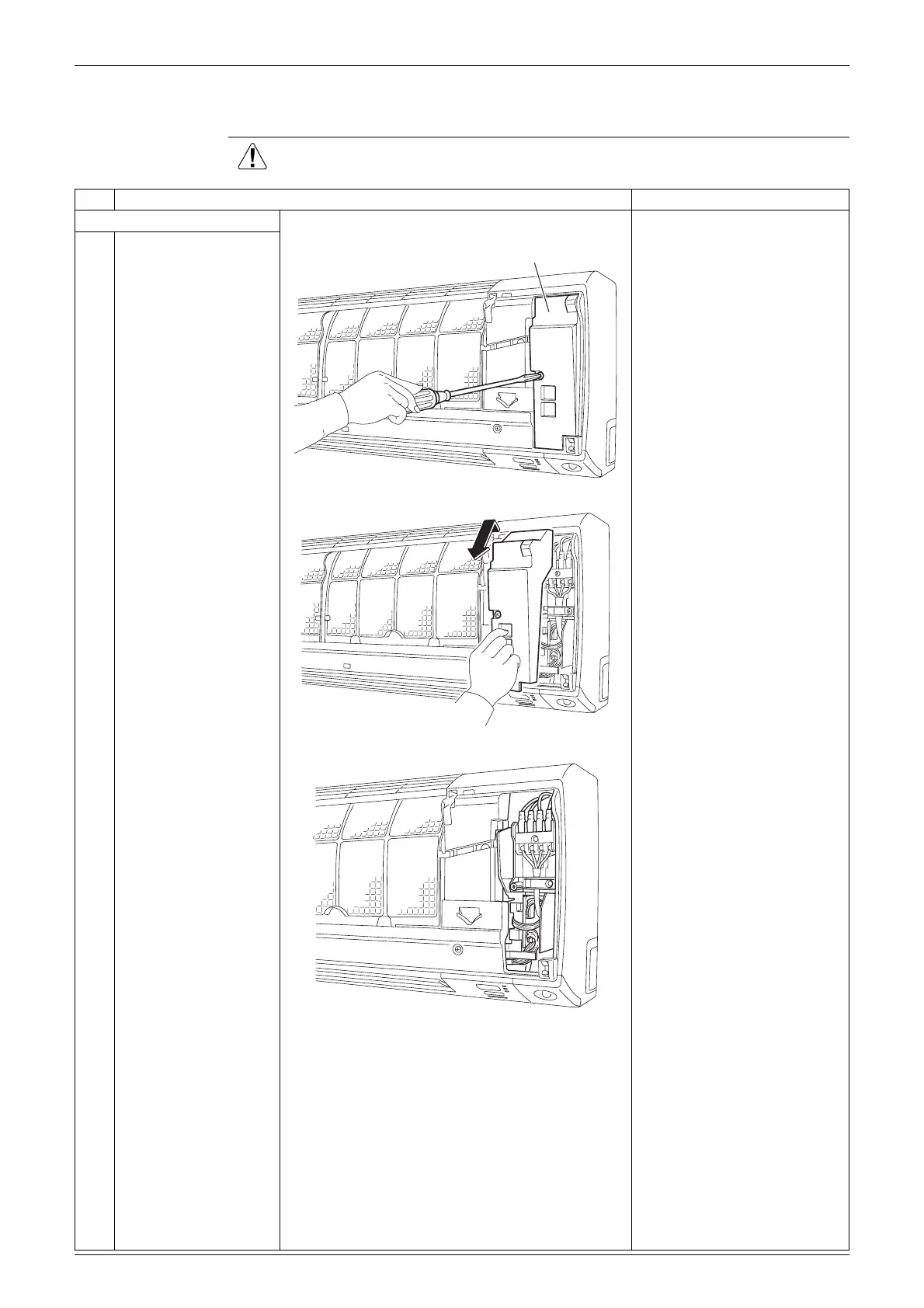

1. Remove the service cover.
1
Remove the screw of
the service cover.
Preparation
Remove the front panel
according to the “Removal
of Front Panel”.
2
Pull out the service
cover diagonally down
in the direction of the
arrow.
3
The figure shows the
appearance of the
inside.
(R7911)
Service cover
(R8077)
(R7913)
