Daikin Super multi NX E Series User Manual

SiBE121135_A RA Indoor Unit
Remote Controller 134

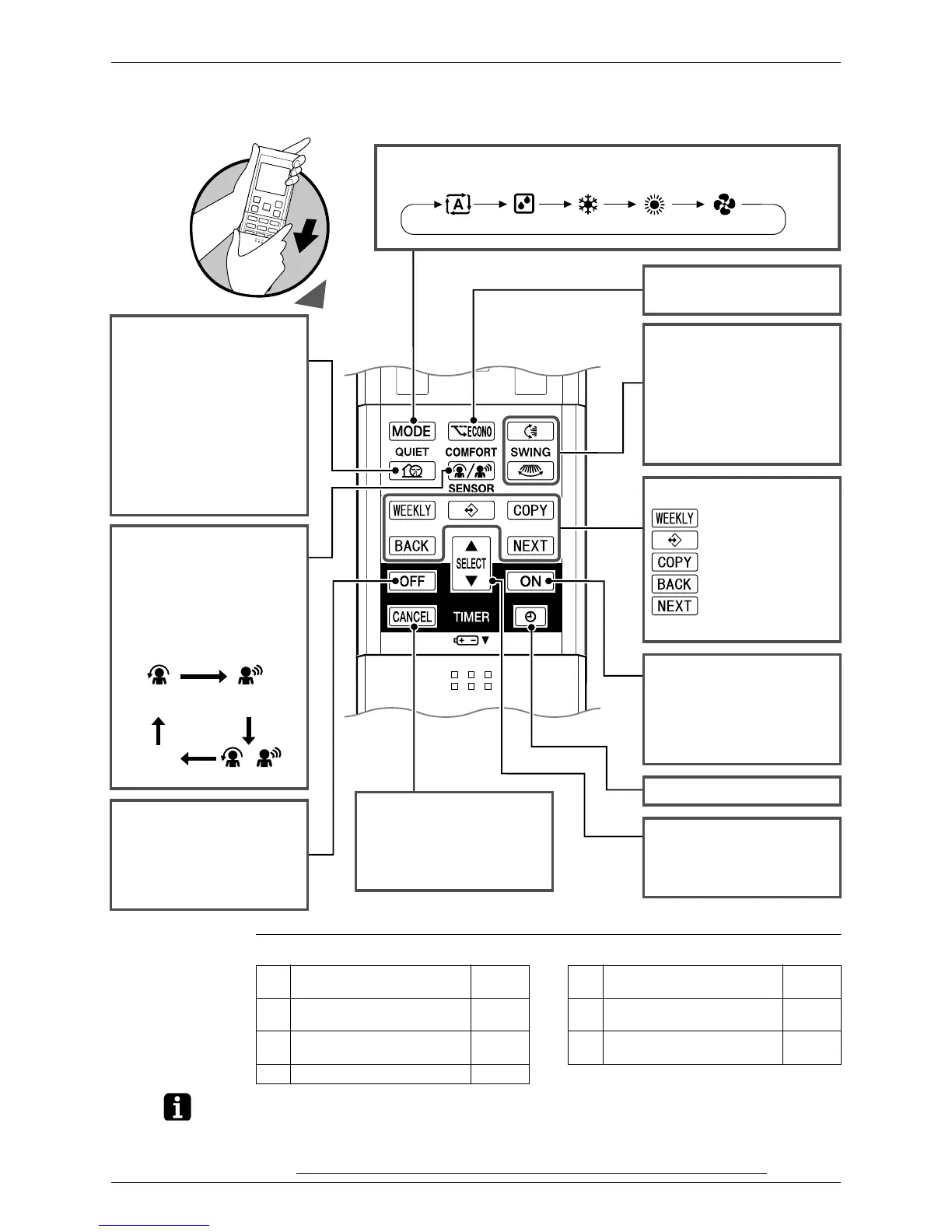

Reference Refer to the following pages for detail.
Note: Refer to the operation manual of applicable model for detail. You can download operation
manual from ‘DISTRIBUTOR’S PAGE’:
DISTRIBUTOR’S PAGE → Product Information → Operation/Installation Manual
(URL: http://global.daikin.com/Daikin/global/Distributors_admin/user_mng/login.php
)
OFF TIMER button
• ECONO operation.
ON TIMER button
WEEKLY button
: WEEKLY button
: PROGRAM button
: COPY button
: BACK button
: NEXT button
• WEEKLY TIMER
8
operation.
SELECT button
MODE button
• Selects the operation mode.
blank
No Setting
Combination
Open the Front Cover
ECONO
6
button
SWING
7
button
• Adjusts the airflow direction.
• When you press the SWING
button, the flap moves up and
down, or (and) the louver
moves right and left. The flap
(louver) stops when you press
the SWING button again.
• Press this button and adjust
the day and time with the
SELECT button.
Press this button again to
complete TIMER setting.
CLOCK
9
button
• It changes the ON/OFF
TIMER and WEEKLY TIMER
settings.
TIMER CANCEL
button
• Cancels the timer setting.
• Cannot be used for the
WEEKLY TIMER operation.
• Press this button and adjust
the day and time with the
SELECT button.
Press this button again to
complete TIMER setting.
COMFORT/SENSOR
button
(COMFORT AIRFLOW Operation
3
/
INTELLIGENT EYE Operation
4 5
)
INTELLIGENT
EYE
COMFORT
AIRFLOW
• Every time you press the
COMFORT/SENSOR button,
the setting changes in the
following order.
QUIET button
• OUTDOOR UNIT QUIET
operation.
• QUIET operation is not
available in FAN and DRY
operation.
• QUIET operation and
POWERFUL operation
cannot be used at the same
time. Priority is given to the
function you pressed last.
(R18209)
(heat pump only) (heat pump only)
3
COMFORT AIRFLOW
operation
P.78,
80
7 Auto swing setting P.76
4
2-area INTELLIGENT EYE
operation (20-50 class)
P.91 8 WEEKLY TIMER operation P.97
5 INTELLIGENT EYE operation
(60/71 class)
P.90 9 Clock setting P.96
6 ECONO operation P.87
