SiBE121135_A Indoor Unit

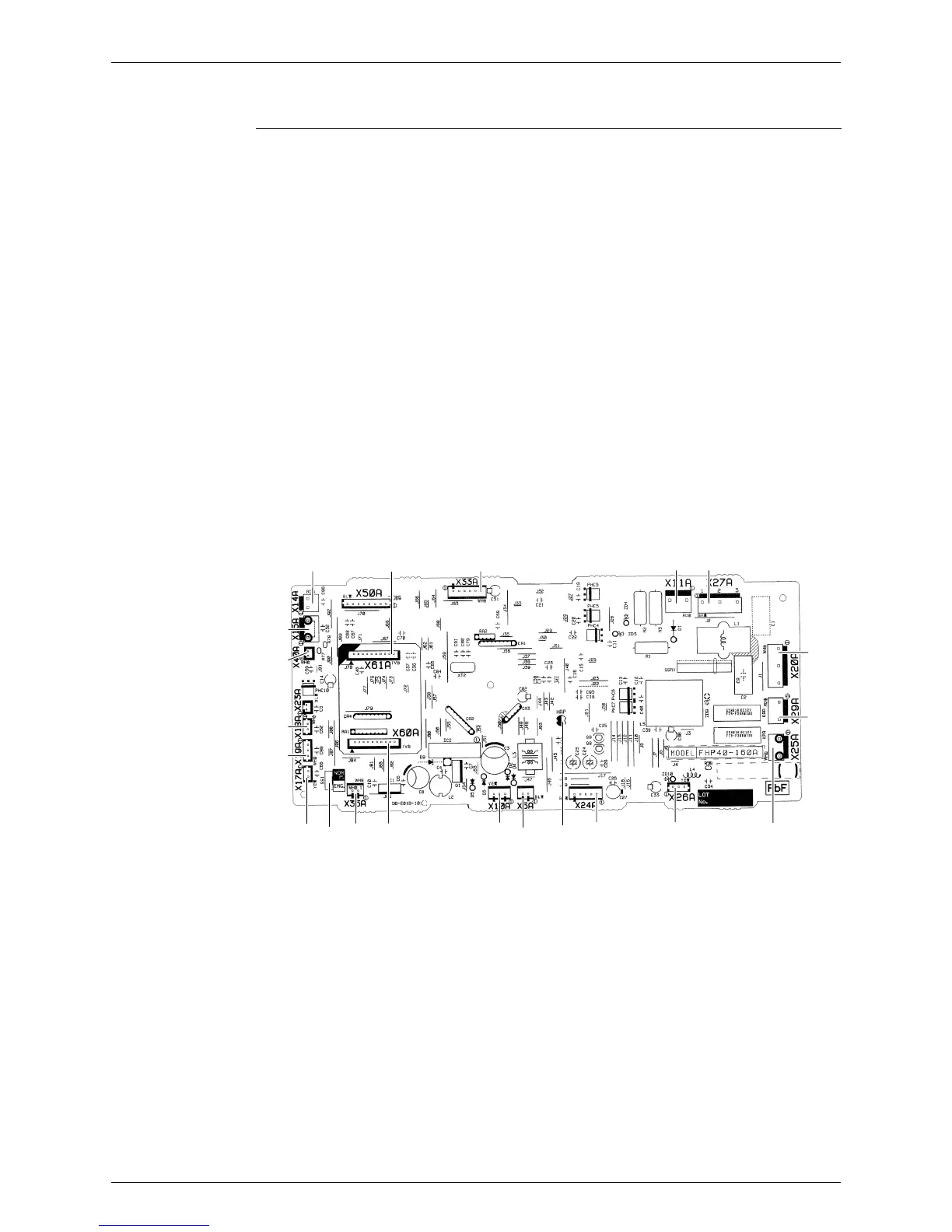

Printed Circuit Board Connector Wiring Diagram 66
2.11 FHQ35/50/60BWV1B
Control PCB
1) X5A Connector for terminal board (for wired remote controller)
2) X10A, X11A Connector for transformer
3) X14A Connector for limit switch (for swing flap)
4) X15A Connector for float switch (option)
5) X17A, X18A Connector for indoor heat exchanger thermistor
6) X19A Connector for room temperature thermistor
7) X20A, X26A Connector for fan motor
8) X24A Connector for signal receiver PCB
(when the wireless remote controller is used)
9) X25A Connector for drain pump motor (option)
10) X27A Connector for terminal board (for inter-unit wiring)
11) X29A Connector for swing motor
12) X33A Connector for wring adaptor PCB (option)
13) X35A Connector for group control adaptor (option)
14) X40A Connector for ON/OFF input from outside (option)
15) X60A, X61A Connector for interface adaptor (option)
16) HAP LED for service monitor (green)
17) SS1 Selector switch for emergency
2P197075-6
X19A
X18A
X40A
X15A
X14A X61A X33A
X20A
X11A X27A
X17A X35A X60A X5AX10A HAP X24A X26A X25A
X29A
SS1
