Open the Front Cover
Reference
Refer to the following pages for detail.
Note: Refer to the operation manual of applicable model for detail. You can download operation
manuals from ‘DISTRIBUTOR’S PAGE’:
DISTRIBUTOR’S PAGE → Product Information → Operation/Installation Manual
(URL: http://global.daikin.com/Daikin/global/Distributors_admin/user_mng/login.php
)

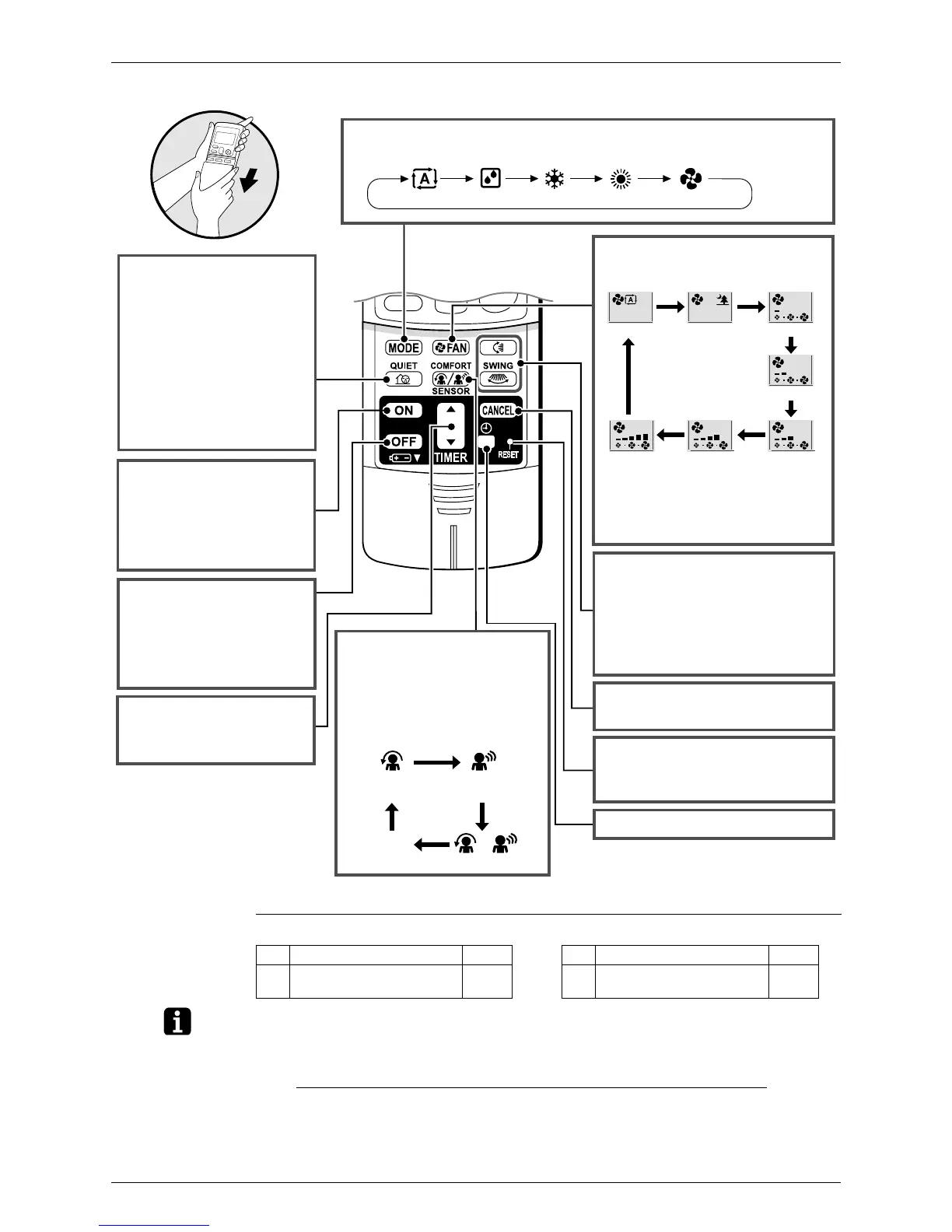

SWING
3
button
• Adjusts the airflow direction.
• When you press the SWING button,
the flap moves up and down, or
(and) the louver moves right and left.
The flap (louver) stops when you
pressed the SWING button again.
(R18211)
RESET button
• Restarts the unit if it freezes.
• Use a thin object to push.
Low
Middle low
MiddleMiddle highHigh
QUIET button
• OUTDOOR UNIT QUIET
operation.
• QUIET operation is not
available in FAN and DRY
operation.
• QUIET operation and
POWERFUL operation
cannot be used at the same
time. Priority is given to the
function you pressed last.
ON TIMER button
• Press this button and adjust
the day and time with TIMER
setting button.
Press this button again to
complete TIMER setting.
OFF TIMER button
• Press this button and adjust
the day and time with TIMER
setting button.
Press this button again to
complete TIMER setting.
TIMER Setting button
• It changes the ON/OFF
TIMER settings.
CLOCK
6
button
TIMER CANCEL button
• Cancels the timer setting.
blank
No Setting
Combination
COMFORT
AIRFLOW
INTELLIGENT
EYE
COMFORT/SENSOR button
(
COMFORT AIRFLOW Operation
4
/
INTELLIGENT EYE Operation
5
)
• Every time you press the
COMFORT/SENSOR button, the
setting changes in the following order.
• In indoor unit quiet operation,
operation sound becomes weak.
(The airflow rate also decreases.)
• In DRY operation, the airflow rate
setting is not available.
Auto
Indoor unit quiet
FAN setting button
• Selects the airflow rate setting
every time you press this button.
MODE button
• Selects the operation mode.
3 Auto swing setting P.76 5 INTELLIGENT EYE operation P.90
4
COMFORT AIRFLOW
operation
P.78,
80
6 Clock setting P.96
