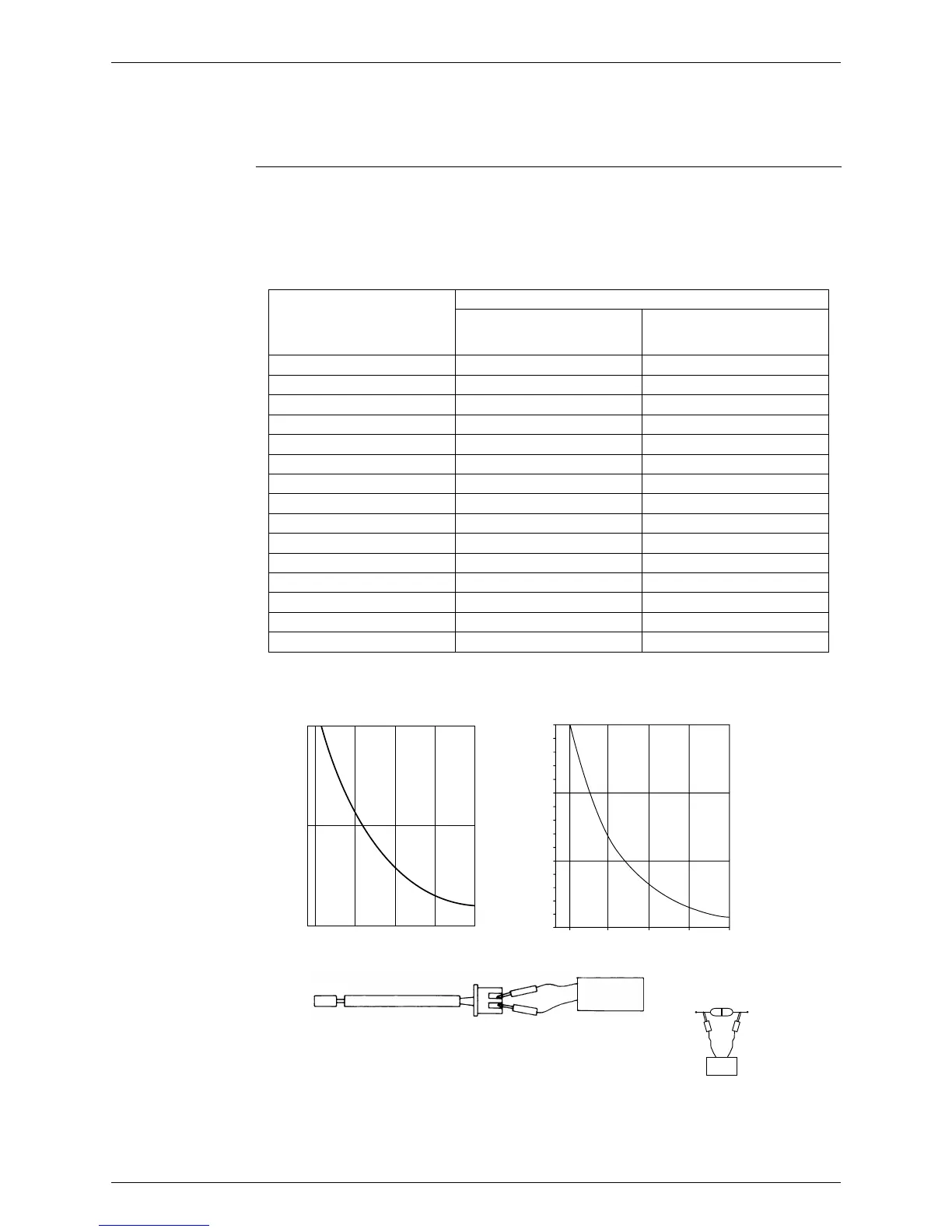

8.1 Thermistor Resistance Check
Check No.01 Disconnect the connectors of the thermistors from the PCB, and measure the resistance of
each thermistor using tester.
The relationship between normal temperature and resistance is shown in the table and the
graphs below.
When the room temperature thermistor is directly mounted on a PCB, remove the PCB from
the control PCB to measure the resistance.
When the connector of indoor heat exchanger thermistor is soldered on the PCB, remove
the thermistor and measure the resistance.
The data is for reference purpose only.
Thermistor temperature (°C)
Resistance (kΩ)
Room temperature thermistor
for CTXS and FTXS20/25K
series
Other thermistors
–20 73.4 197.8
–15 57.0 148.2
–10 44.7 112.1
–5 35.3 85.60
0 28.2 65.93
5 22.6 51.14
10 18.3 39.99
15 14.8 31.52
20 12.1 25.02
25 10.0 20.00
30 8.2 16.10
35 6.9 13.04
40 5.8 10.62
45 4.9 8.707
50 4.1 7.176
(R25°C = 10 kΩ, B = 3435 K) (R25°C = 20 kΩ, B = 3950 K)
Room temperature thermistor
for CTXS and FTXS20/25K
(˚C)
50
25
0
–15
0
15 30
45
(kΩ)
(11952)
Other thermistors
(˚C)
(kΩ)
–15
0
15 30
45
150
100
50
Tester
(R17417)
Room temperature
thermistor
Tester
Resistance range
(R18296)
