6 Introduction

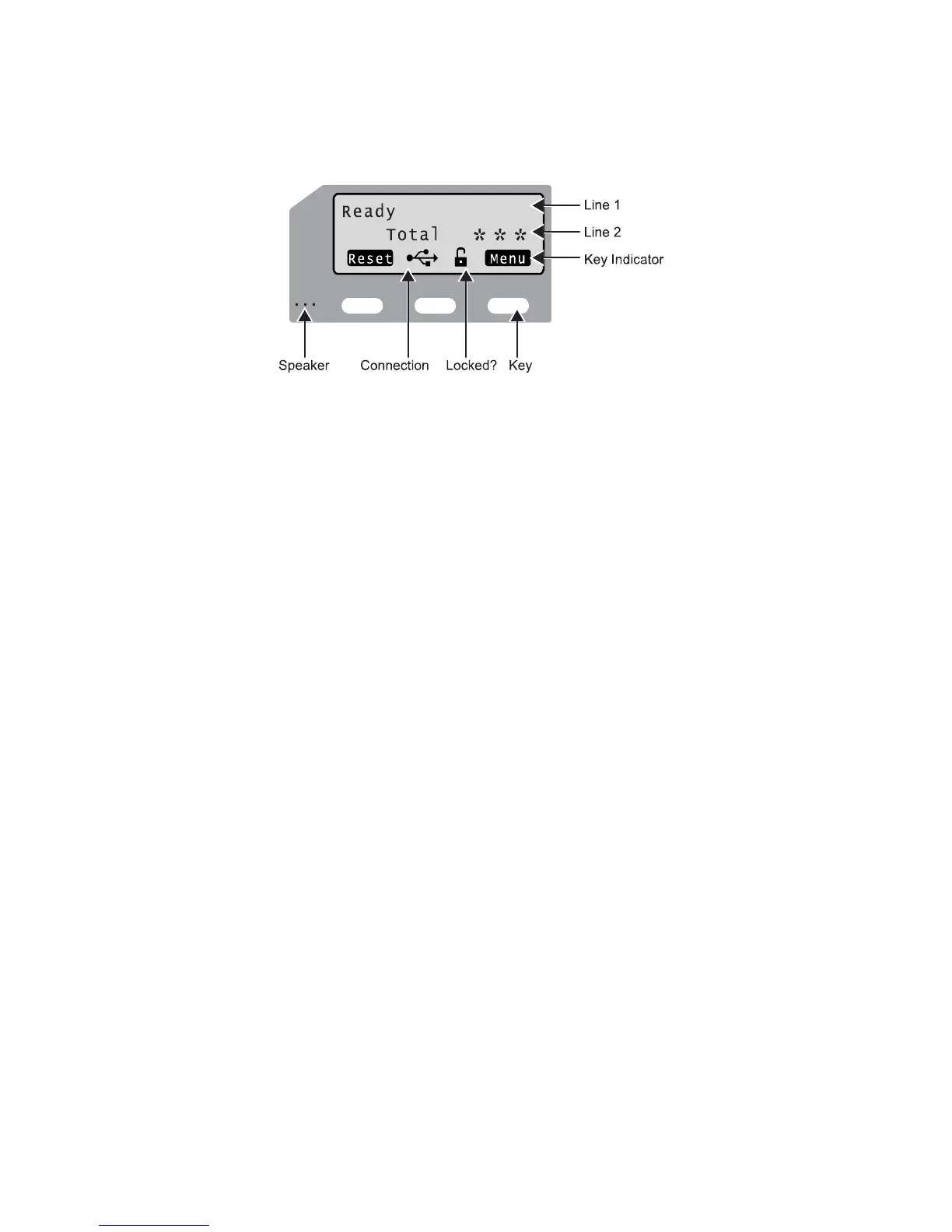

Card Printer LCD Panel
Line1 Displaysthecurrentprinterstatus,suchasReadyor
Printing.Italsoshowsthemenunamewhenusing
menus.Ifanerroroccurs,amessagedisplayshereand
ontheStatusMonitor.
Line2 Displayscardcountsorselectionsavailableforthe
menus.Itcanalsodisplaythestatusofthe
laminator,if
used.Referto“DisplayingLaminatorStatusontheLCD
Panel”onpage 68forinstructions.
KeyIndicator Displaysthecurrentnameorfunctionofthekeydirectly
beneaththeindicator.
Keys Presskeystonavigatethemenuanddisplayinformation
abouttheprinterandlaminator,andtovieworchange
settingsorperform
functions.
Locked? Indicateswhethertheprinter(andlaminator,ifused)is
lockedorunlocked.
Connection Indicateswhethertheprinterisconnectedthrougha
USBcableoranetworkconnection,andwhetherornot
theprinterhasanIPaddress.Alsoindicatesifthe
laminatorisconnected.
Speaker(buzzer) Providesanelectronicbeeptoindicatethat
anerrorhas
happenedortoconfirmthatsettingshavebeensaved.
Thebuzzerfunctioncanbeturnedonoroffusingthe
LCDpanelortheStatusMonitor.
