SR200 & SR300 Card Printers and LM200 & LM300 Laminators User’s Guide 9

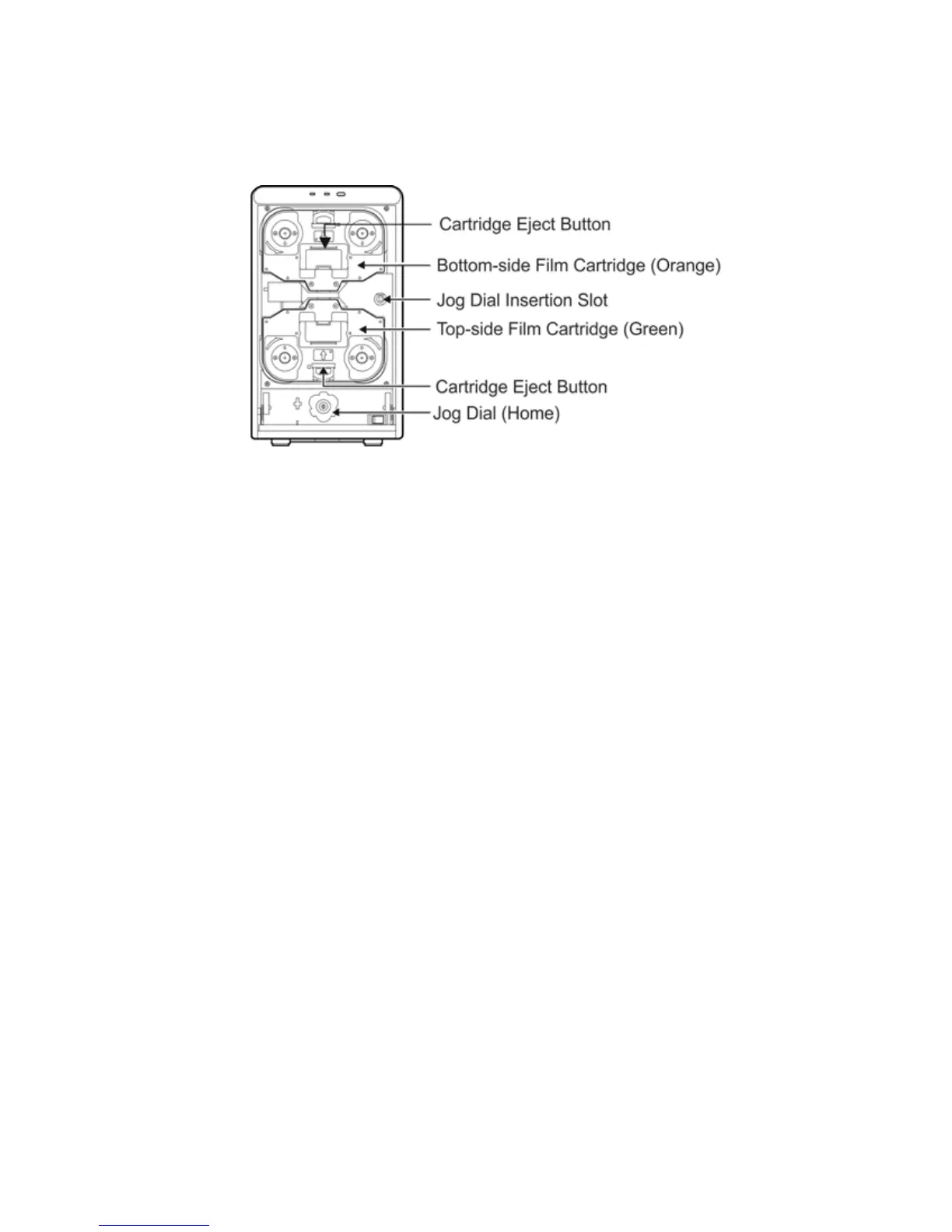

The Inside of the Laminator
CartridgeReleaseButton Pressthebuttontoremovethebottom‐sidelaminate
filmcartridge.
Bottom‐SideFilmCartridge
(Orange)
Holdsthelaminatefilmforthebottomsideofthecard.
(LM300only.Aremovablecoverislocatedhereonthe
LM200.)
JogDialInsertionSlot Attachthejogdialheretoclearacard
jam.Referto
“ClearingaCardJam”onpage 91forinstructions.
Top‐SideFilmCartridge(Green) Holdsthelaminatefilmforthetopsideofthecard.
CartridgeReleaseButton Pressthebuttontoremovethetop‐sidelaminatefilm
cartridge.
JogDial(Home) Usethisremovabledialwhenclearingacardjam.Return
it
tothehomelocationafteruse.Refertotheprocedure
describedin“RecoveringfromLaminatorErrors”on
page 91forinstructionsonusingthejogdial.
