Standard Cable Pinouts
Product Reference Guide 335
Standard Cable Pinouts
Figure 7 and Table 46 provide standard pinout information for the imager’s cable.

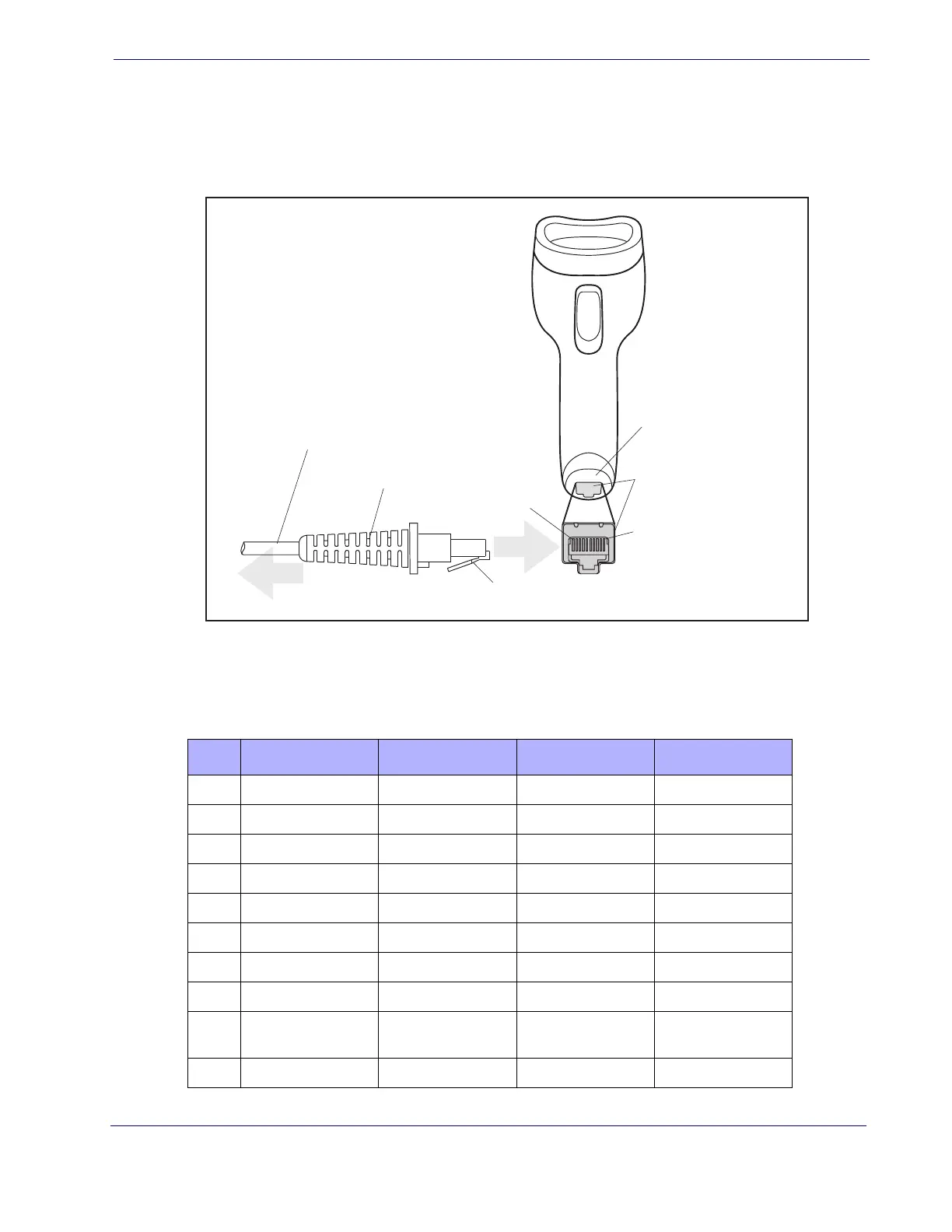

Figure 7. Standard Cable Pinouts
The signal descriptions in Table 46 apply to the connector on the imager and are for ref-
erence only.
Table 46. Standard Cable Pinouts — Imager Side
Cable Clip (Latch)
To Host
Cable
Cable Strain Relief
Bottom of Imager
Interface Cable Port
Pin 1
Pin 10
Pin RS-232 OEM USB Keyboard Wedge
1RTS (out)
2 D+ CLKIN (KBD side)
3 D- DATAIN (KBD side)
4 GND GND GND GND
5RX
6TX
7 VCC VCC VCC VCC
8 IBM_B CLKOUT (PC side)
9IBM_A
DATAOUT (PC
side)
10 CTS (in)

Datalogic QuickScan i QD2100 Specifications

General

Scan speed	8 sec/page
Wavelength	610 nm
Tilt angle range	-65 - 65 °
Decoding standards	1D / GS1 DataBar China Post GS1 DataBar Expanded/ Stacked/ Stacked Omnidirectional
Dimensions (WxDxH)	170 x 66 x 71 mm
Standard interfaces	RS-232, USB, Keyboard wedge
Input voltage	5 V
Power consumption	340 mA
Product color	White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	121.9 g
