Datalogic QuickScan i QD2100 User Manual

Product Reference Guide 41
Chapter 5
RS-232 ONLY Interface
Introduction
Use the programming bar codes in this chapter if modifications to the standard RS-232
interface settings are necessary to meet your system’s requirements. Additional settings
which apply to both the RS-232 and USB interfaces are available in Chapter 6, RS-232/
USB-Com Interfaces
.
RS-232 Standard Factory Settings
Reference Appendix B, Standard Defaults for a listing of standard factory settings.
Baud Rate
Baud rate is the number of bits of data transmitted per second. Set the reader's baud rate
to match the baud rate setting of the host device. With an improper baud rate setting,
data may not reach the host correctly.

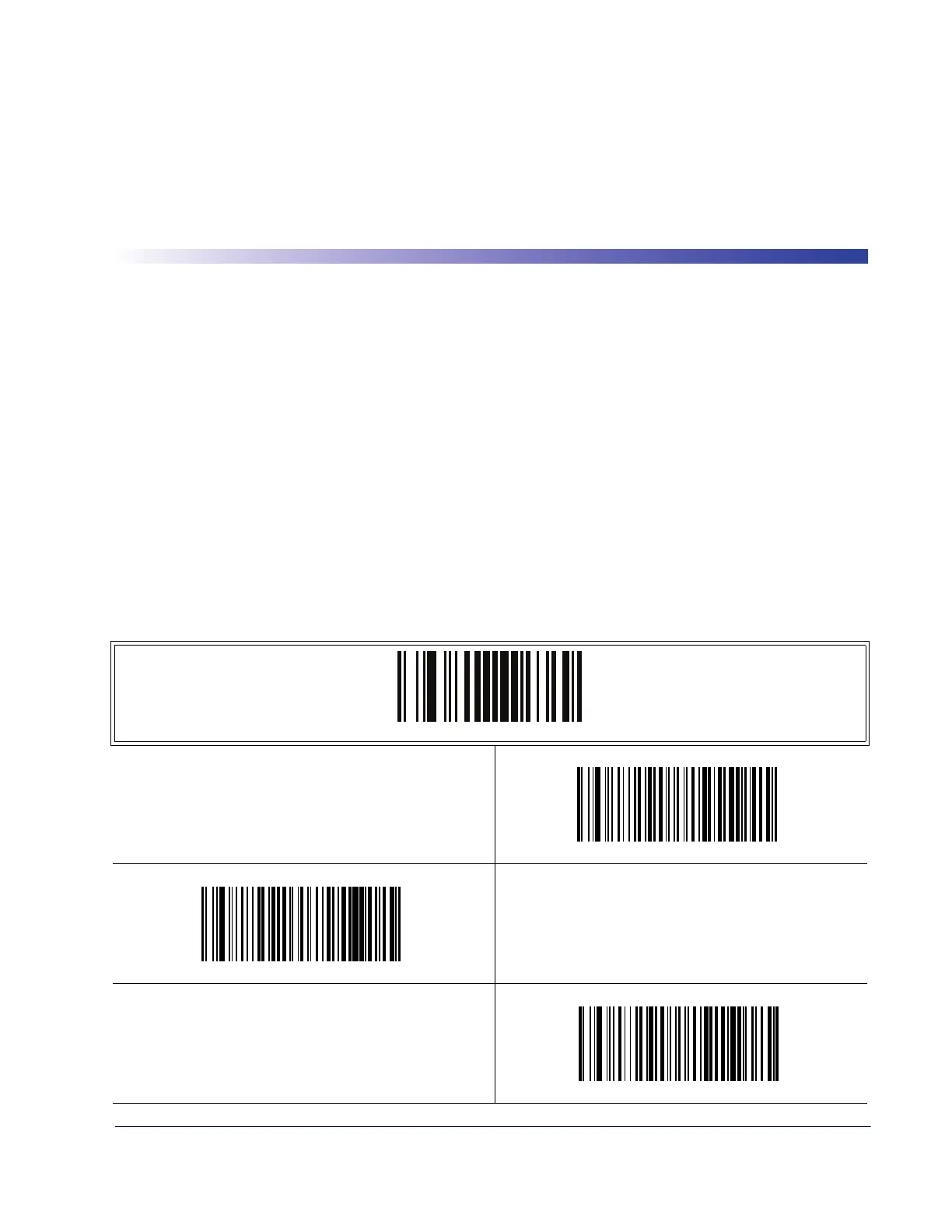

ENTER/EXIT PROGRAMMING MODE
Baud Rate = 1200
Baud Rate = 2400
Baud Rate = 4800

Datalogic QuickScan i QD2100 Specifications

General

Scan speed	8 sec/page
Wavelength	610 nm
Tilt angle range	-65 - 65 °
Decoding standards	1D / GS1 DataBar China Post GS1 DataBar Expanded/ Stacked/ Stacked Omnidirectional
Dimensions (WxDxH)	170 x 66 x 71 mm
Standard interfaces	RS-232, USB, Keyboard wedge
Input voltage	5 V
Power consumption	340 mA
Product color	White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	121.9 g
