Datalogic QuickScan i QD2100 User Manual

RS-232 ONLY Interface
46 QuickScan
TM
QD2100
Handshaking Control
The data interface consists of an RS-232 port designed to operate either with or without
the hardware handshaking lines, Request to Send (RTS), and Clear to Send (CTS). Hand-
shaking Control includes the following options:
• RTS — RTS is asserted during transmissions. CTS is ignored.
• RTS/CTS — RTS is asserted during transmissions. CTS gates transmissions.
• RTS/XON/XOFF — RTS is asserted during transmissions. CTS is ignored. XON and
X
OFF gate transmissions.
• RTS On/CTS — RTS is always asserted. CTS gates transmissions.
• RTS/CTS Scan Control — RTS is asserted during transmissions. CTS gates transmis-
sions and controls enable and disable state of scanner.

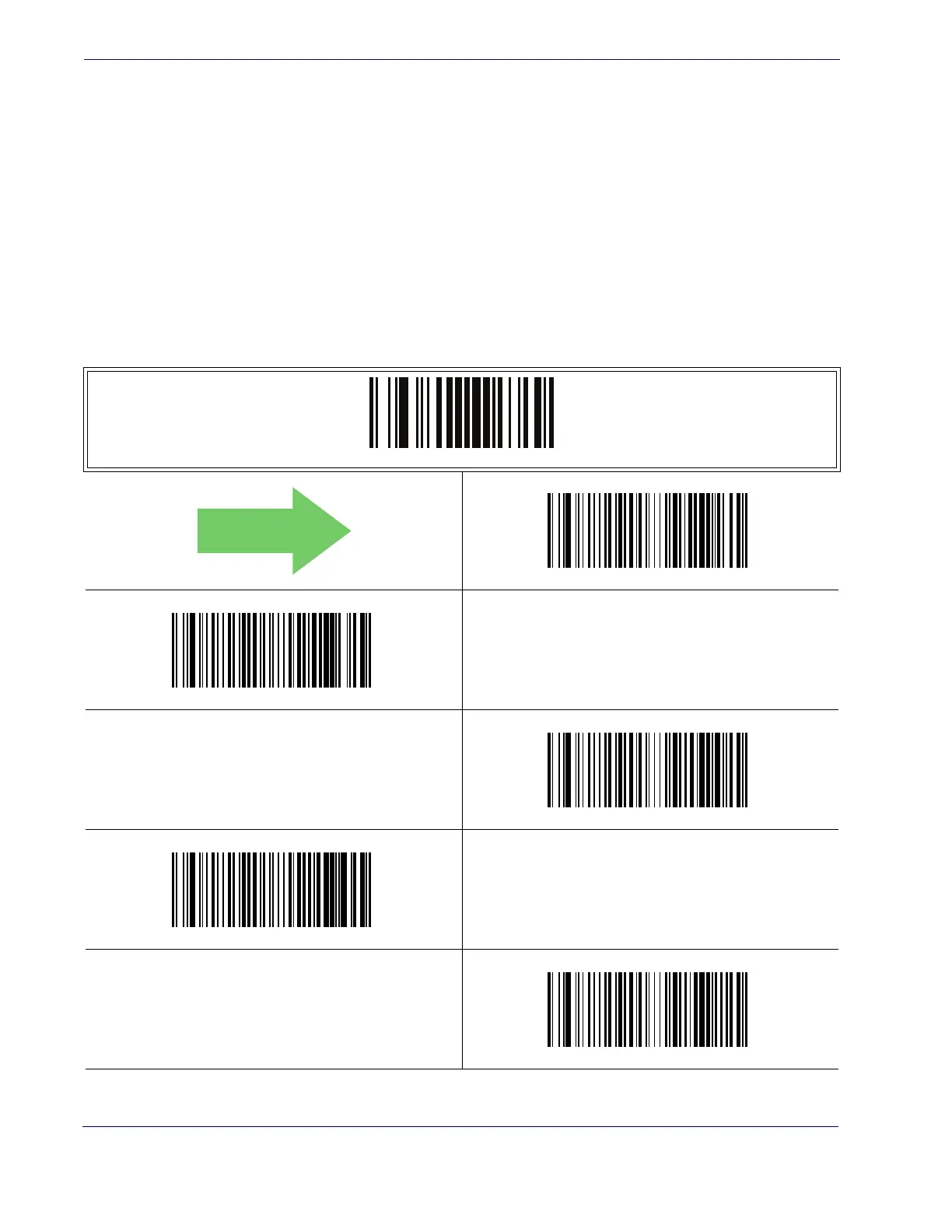

ENTER/EXIT PROGRAMMING MODE
DEFAULT
Handshaking Control = RTS
Handshaking Control = RTS/CTS
Handshaking Control = RTS/XON/XOFF
Handshaking Control = RTS On/CTS
Handshaking Control = RTS/CTS Scan Control

Datalogic QuickScan i QD2100 Specifications

General

Scan speed	8 sec/page
Wavelength	610 nm
Tilt angle range	-65 - 65 °
Decoding standards	1D / GS1 DataBar China Post GS1 DataBar Expanded/ Stacked/ Stacked Omnidirectional
Dimensions (WxDxH)	170 x 66 x 71 mm
Standard interfaces	RS-232, USB, Keyboard wedge
Input voltage	5 V
Power consumption	340 mA
Product color	White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	121.9 g
