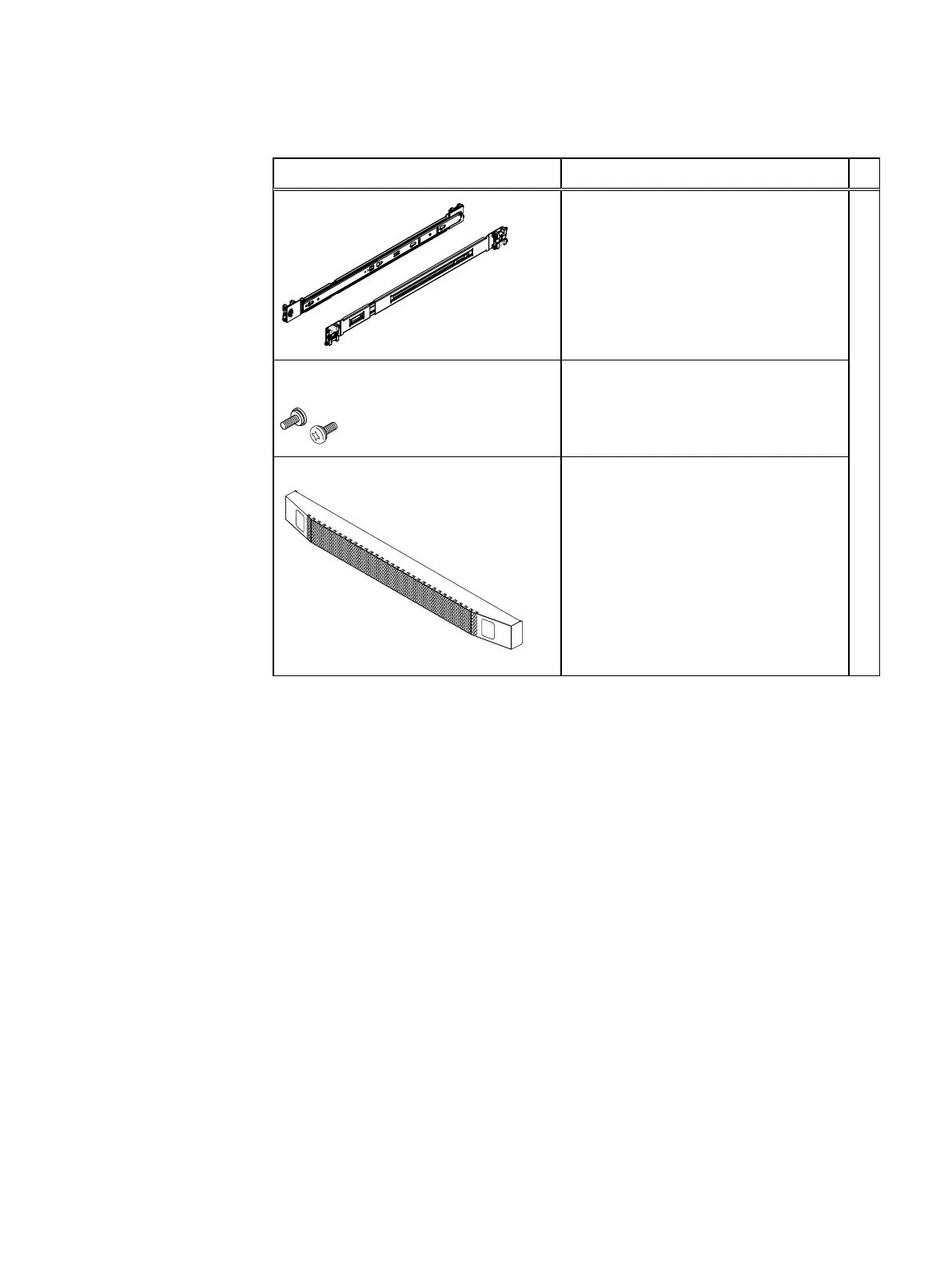

Table 5 Mounting kit parts (continued)
Component Use
Four Phillips pan-head 8-32 x 0.35 in
screws
Stabilize the server and rail mounting
1U bezel (application specific)
CL4887
Covers front of server in cabinet
You need a # 2 Phillips-head screwdriver to complete the installation of the rails and
server.
Removing inner rails from the rail assemblies
Perform the procedure that follows on each rail assembly. Refer to Figure 2 on page
22 while performing the procedure.
Procedure
1. Slide the inner rail out from the slide rail as far as possible.
2. On the inner rail, slide the blue disconnect tab forward to release the inner rail
from the slide rail.
3. Slide the inner rail completely out of the slide rail.
2U1N Configuration Equipment Installation
Removing inner rails from the rail assemblies 21

Dell 100 Series Specifications

General

Processor	Intel Xeon E3-1200 series
Hard Drives	Up to 2 x 3.5" SATA HDD
Storage	SATA
Expansion Slots	1 x PCIe x16
Networking	Dual Gigabit Ethernet
