Dell 100 Series User Manual

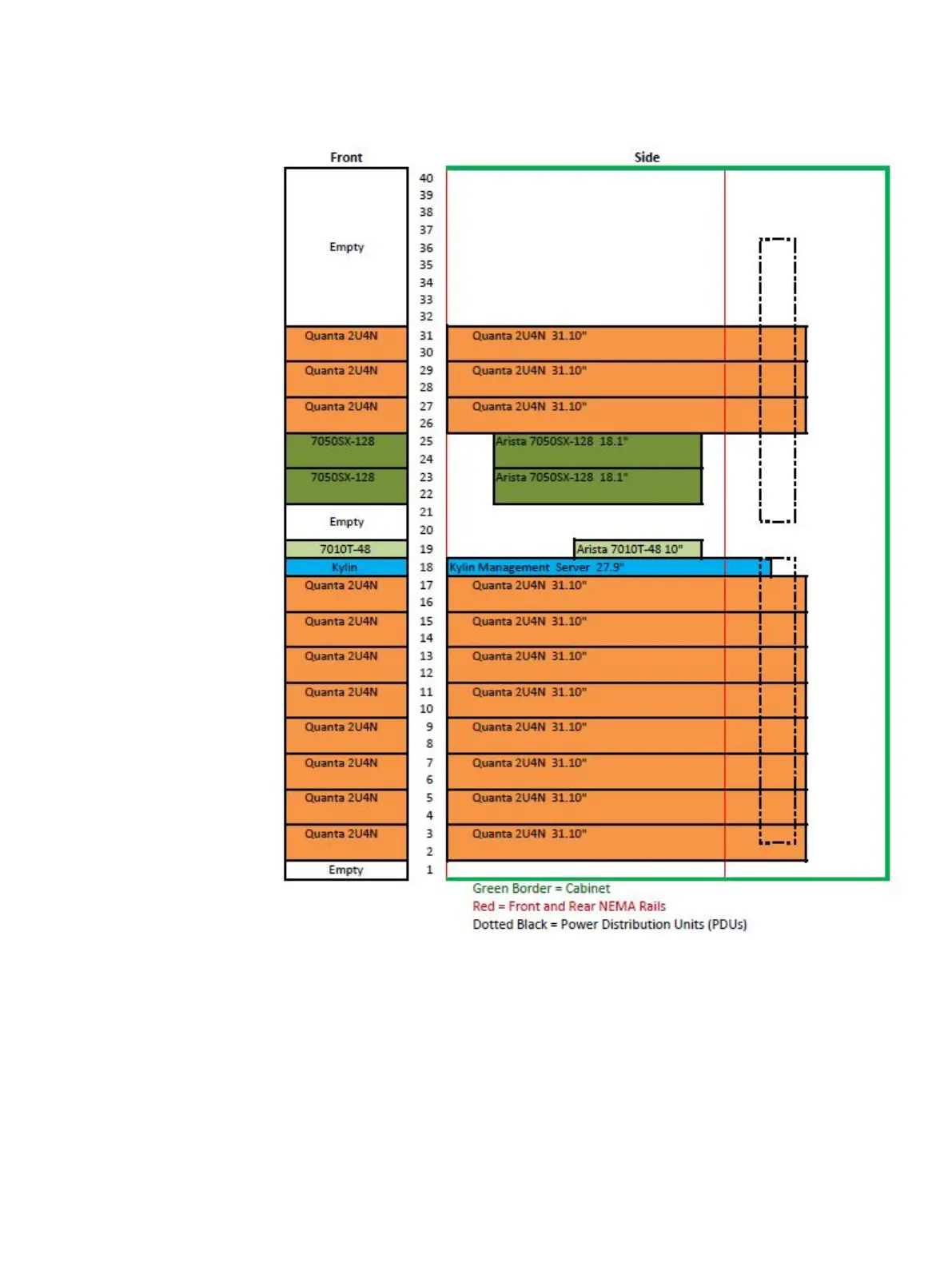

Figure 9 Stack up in cabinets with 3-phase delta or 3-phase wye power distribution
Install the 2U4N server in the cabinet
There are cabinet slides (left and right). Each cabinets slide consists of the part that is
installed in the cabinet (slide rail) and the part that is mounted on the side of the
server (inner rail).
Procedure
1. Separate the inner rails from the slide rails.
2U4N Configuration Equipment Installation
Install the 2U4N server in the cabinet 35

Dell 100 Series Specifications

General

Processor	Intel Xeon E3-1200 series
Hard Drives	Up to 2 x 3.5" SATA HDD
Storage	SATA
Expansion Slots	1 x PCIe x16
Networking	Dual Gigabit Ethernet
