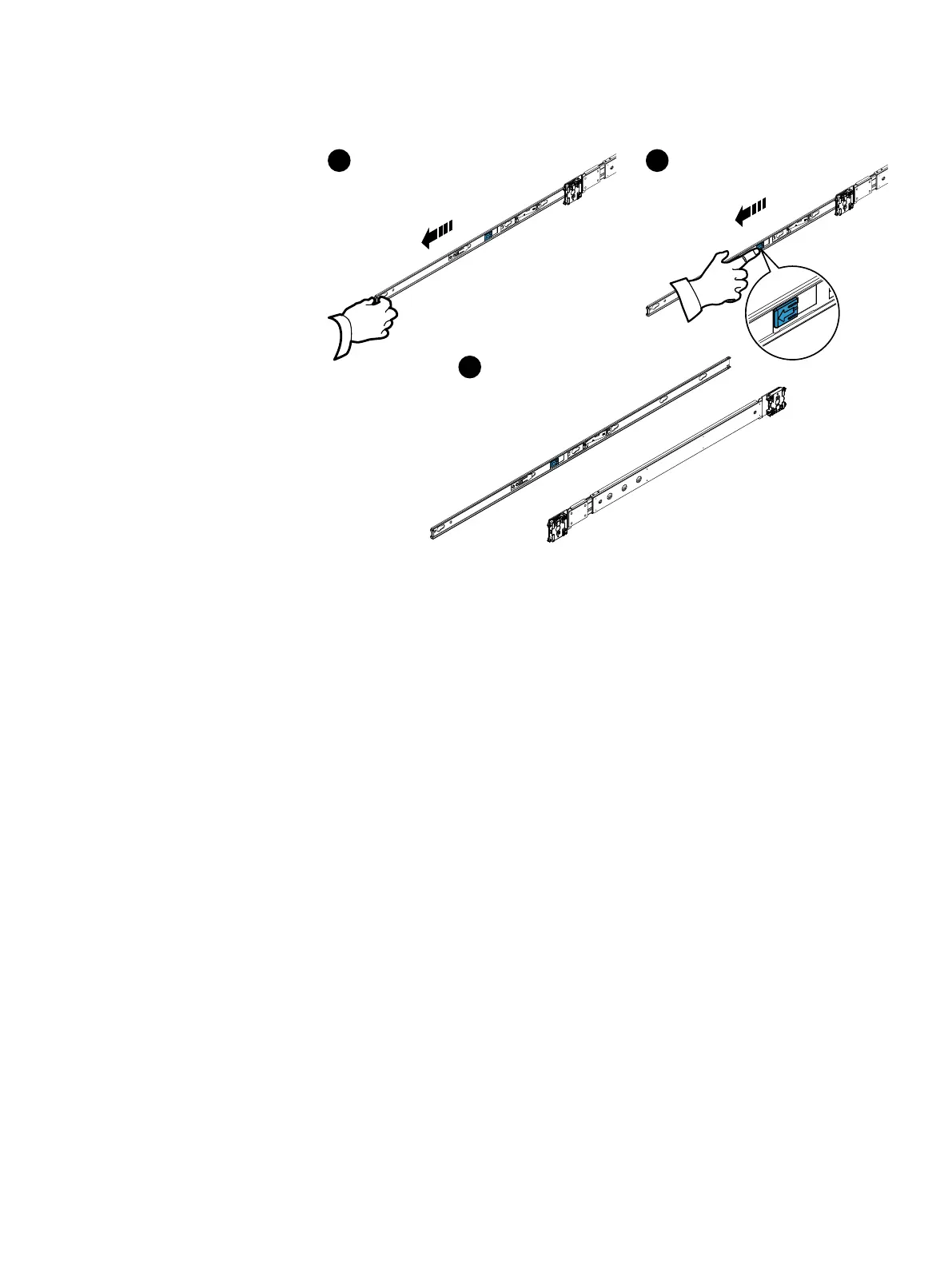

Figure 16 Removing the inner rail from the slide rail
CL4883
3
1 2
Attach the inner rails to the server
Attach an inner rail to each side of the server by performing the procedure that
follows for each rail.
Procedure
1. With the flat side of the inner rail facing the side of the server, align the large
end of the rail notches of the inner rail with the connection studs on the server
and push the inner rail onto the connection studs.
2. Slide the inner rail forward along the server until the studs fit securely into the
small end of the rail notches.
An audible click indicates that the rail is secure.
2U4N Configuration Equipment Installation
40 VxRack Node Hardware Installation Guide

Dell 100 Series Specifications

General

Processor	Intel Xeon E3-1200 series
Hard Drives	Up to 2 x 3.5" SATA HDD
Storage	SATA
Expansion Slots	1 x PCIe x16
Networking	Dual Gigabit Ethernet
