Guidelines for wiring a 2U1N configuration
Use the following illustration as reference for connectors on rear of the servers:

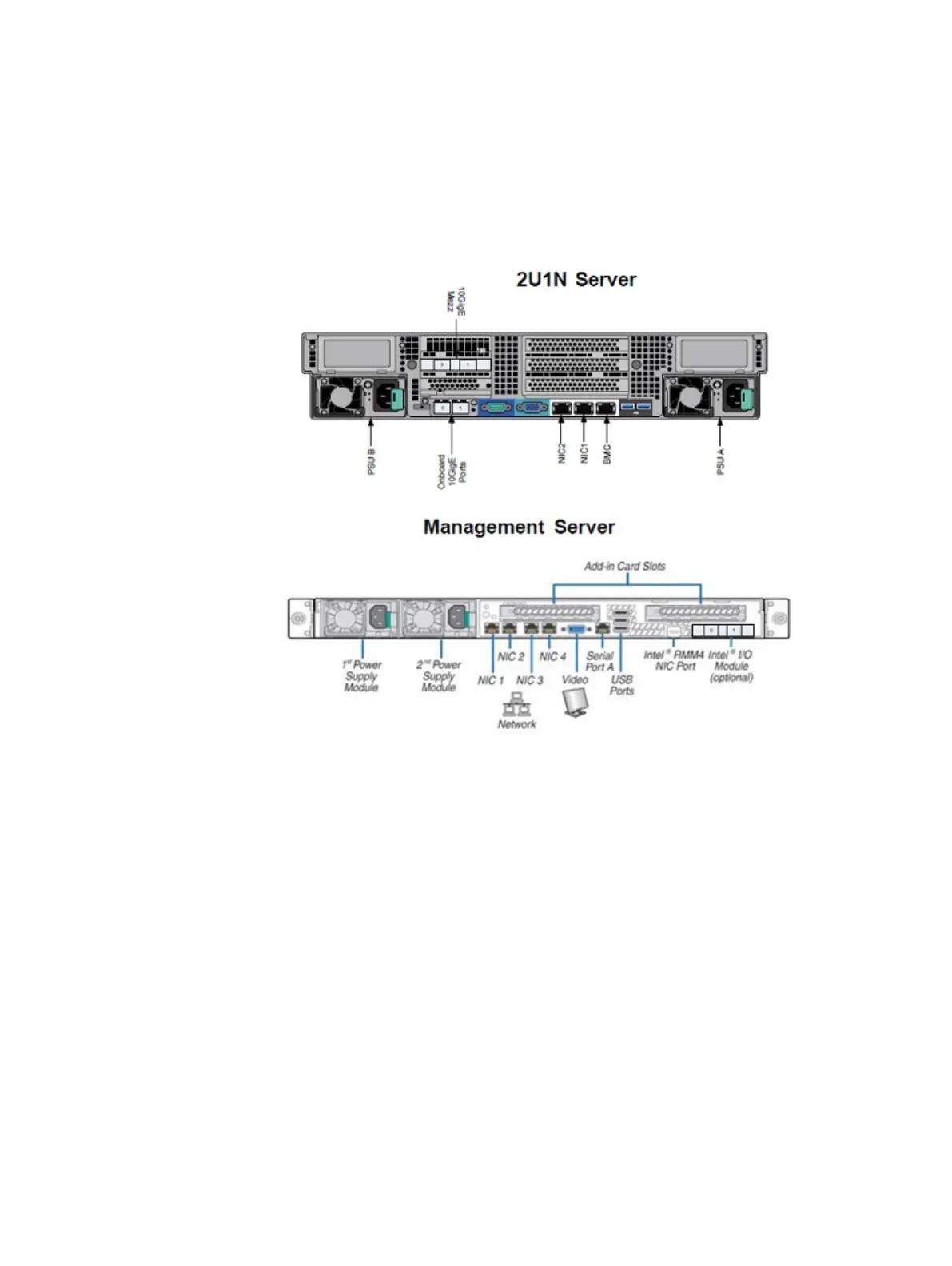

Figure 22 Connectors on rear of servers
Use the wiring diagrams to connect power, management, and data cables.
As cables are installed and connected, dress and tie cables frequently so that excess
slack does not interfere with routing of adjacent cables.
Install and connect cables in the following order:
l
Power (as cabinet applicable):
n
Single-phase Single-phase wiring for 2U1N configuration on page 51
n
3-Phase delta Three-phase delta wiring for 2U1N configuration on page 53
n
3-Phase wye Three-phase wye wiring for 2U1N configuration on page 55
l
Management Management network wiring for 2U1N configuration on page 57
l
Data A Data network A wiring for 2U1N configuration on page 60
l
Data B Data network B wiring for 2U1N configuration on page 63
Wiring Diagrams for a 2U1N Configuration
50 VxRack Node Hardware Installation Guide
