Top Lighting-Board Components
9 hard-drive LED connector
(HDD_LED1)
10 hard-drive LED connector
(HDD_LED2)
11 USB connector (MB_USB) 12 main-power connector (PWR1)
13 system-board lighting (MB_MIO) 14 hard-drive fan connector
(FAN_HDD)
15 right side-panel connector
(SIDE_R)
16 ODD sensors (ODD_SW)
17 ODD LED connector
(ODD_LED)
18 front-default connector
(FACTORY_DEFAULT)
19 Debug connector (DEBUG) 20 graphics-temperature sensor
connector (GFX_TEMP)
21 graphics-pump connector (GFX_PUMP)

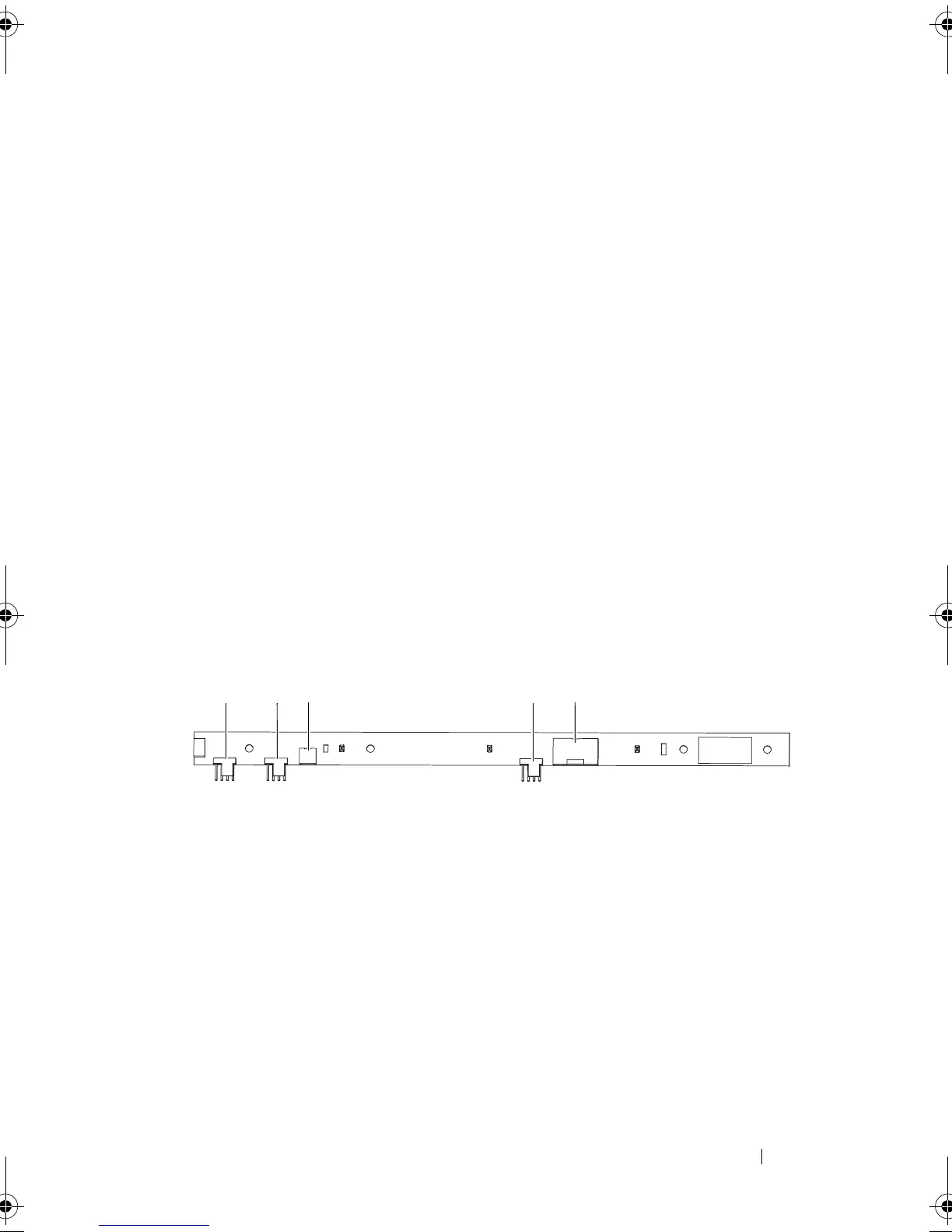

1 System fan connector (SYS FAN) 2 CPU fan connector (CPU FAN)
3 Temperature sensor connector
(TEMP SENSOR)
4 Memory fan connector
(MEM FAN)
5 CPU pump connector (CPU PUMP)
1 2
3 4 5
