90 Coin-Cell Battery

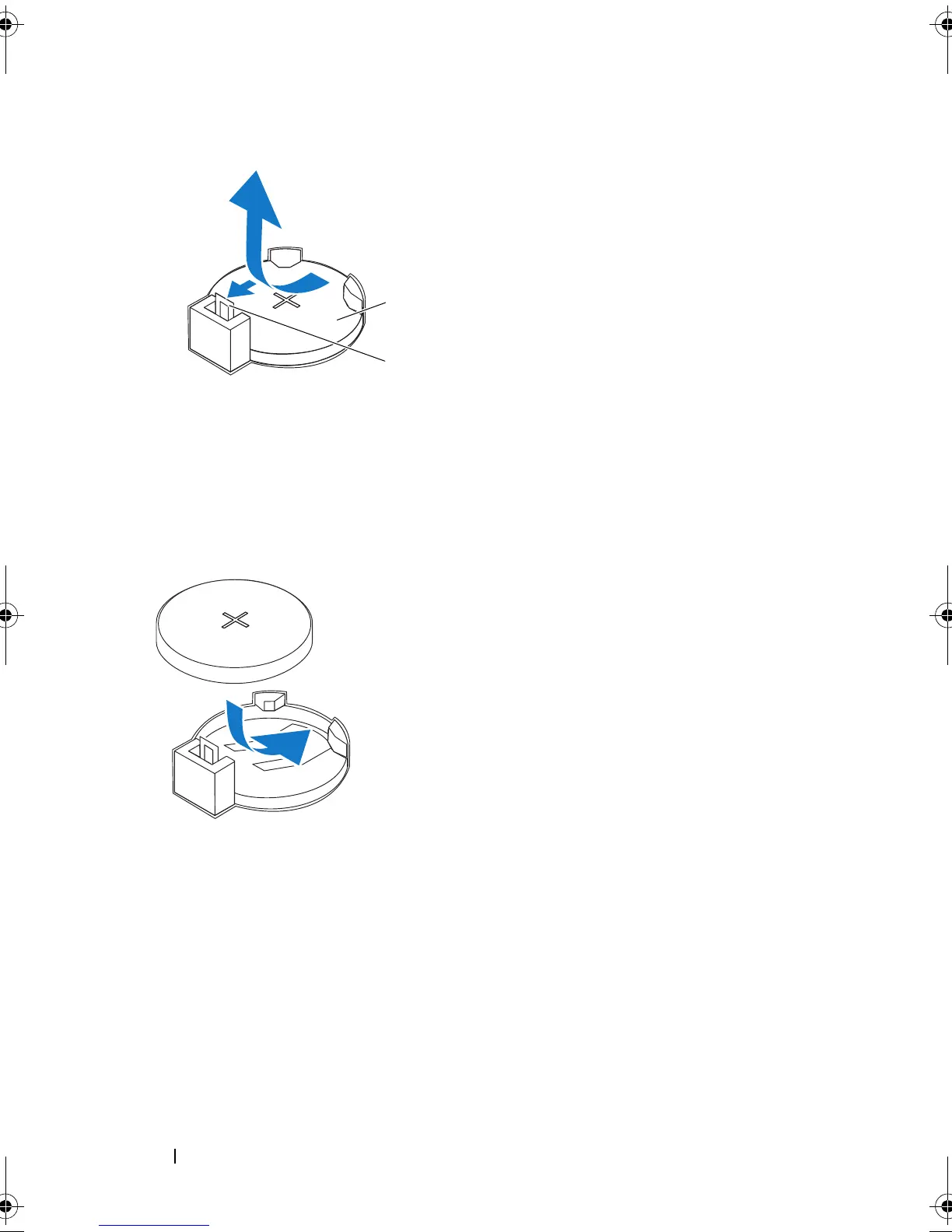

Replacing the Coin-Cell Battery
1
Insert the battery into the socket with the side labeled
+
facing up and
press down the battery in the socket.
Postrequisites
1
Replace the PCI-Express x1 card. See "Replacing the PCI-Express x1 Card"
on page 50.
2
Replace the graphics card. See "Replacing the Graphics Card" on page 58.
3
Close the PCI shroud. See "Closing the PCI Shroud" on page 46.
4
Replace the left side-panel. See "Replacing the Left Side-Panel" on
page 27.
5
Follow the steps in "After Working Inside Your Computer" on page 15.
1 coin-cell battery 2 battery-release lever
book.book Page 90 Wednesday, May 16, 2012 2:37 PM
