72 Processor Liquid-Cooling Assembly
Replacing the Processor Liquid-Cooling
Assembly
CAUTION: Incorrect alignment of the processor liquid-cooling assembly can
damage the system board and processor.

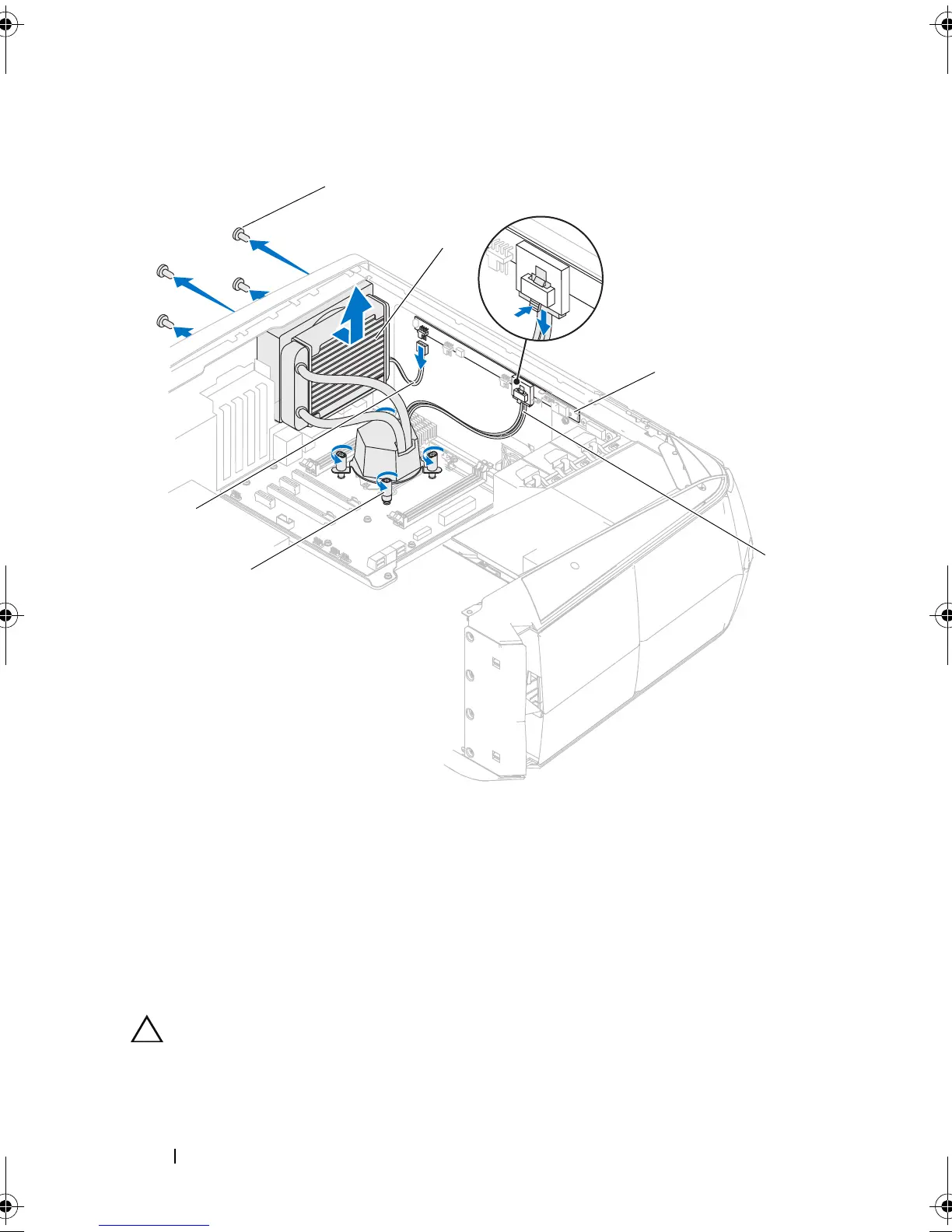

1 screws (4) 2 processor liquid-cooling assembly
3 top lighting-board 4 CPU-pump cable
5 captive screws (4) 6 system-fan cable
1
2
3
4
5
6
