48 Drive-Bay Shroud
Replacing the Drive-Bay Shroud
1
Align the drive-bay shroud with the slots on the chassis.
2
Slide the drive-bay shroud toward the front of the chassis until it clicks
into place.
Postrequisites
1
Replace the left side-panel. See "Replacing the Left Side-Panel" on
page 27.
2
Follow the steps in "After Working Inside Your Computer" on page 15.
3
Close the PCI shroud. See "Closing the PCI Shroud" on page 46.

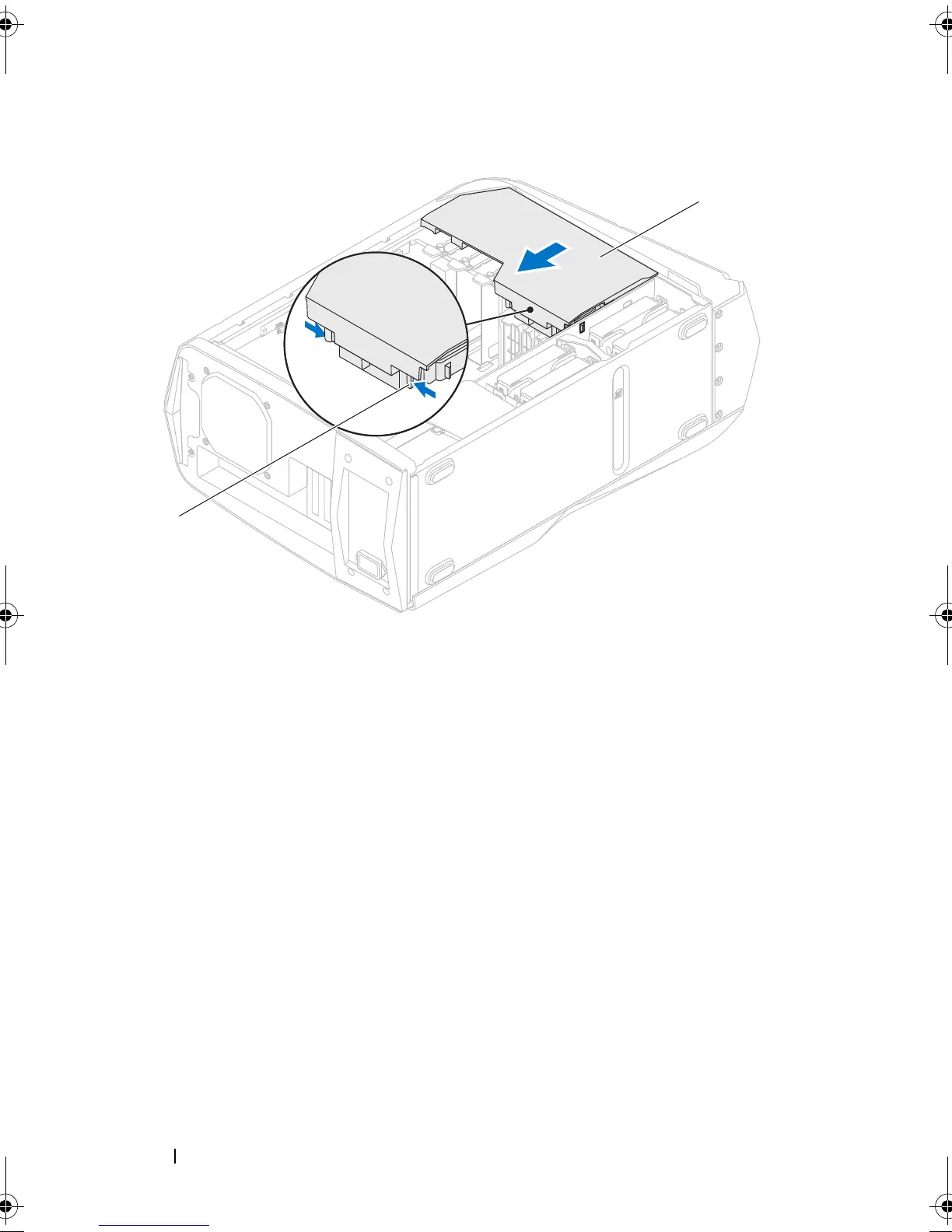

1 tabs (2) 2 drive-bay shroud
