Dell Embedded Box PC5000 Service Manual

Replacing the heat sink
WARNING: Before working inside your Embedded Box PC, read the safety
information that shipped with your Embedded Box PC and follow the steps
in Before working inside your Embedded Box PC. After working inside your
Embedded Box PC, follow the steps in After working inside your Embedded
Box PC. For more safety best practices, see the Regulatory Compliance
home page at www.dell.com/regulatory_compliance.
Procedure

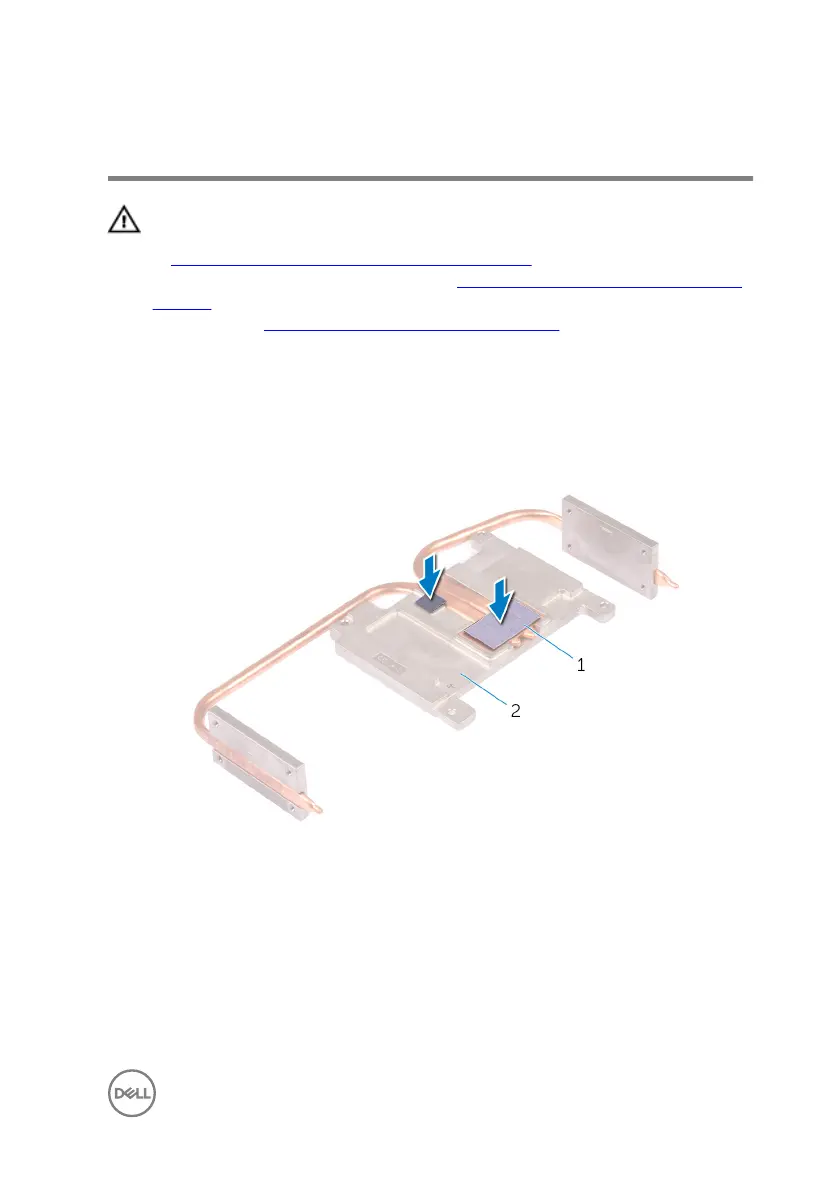

1 Replace the thermal pads on the heat sink.
2 Place the heat sink on the CPU board.
3 Align the screw holes on the heat sink with the screw holes on the CPU board.
4 In sequential order (indicated on the heat sink), replace the screws that secure
the heat sink to the CPU board.
5 Replace the screws that secure the chassis heat-sinks to the sides of the
chassis.
103
