Procedure
Follow these steps to install a PCI or PCIe card into an empty PCI/PCIe card slot.
1 Remove the screws that secure the PCI/PCIe ller plate to the top cover.

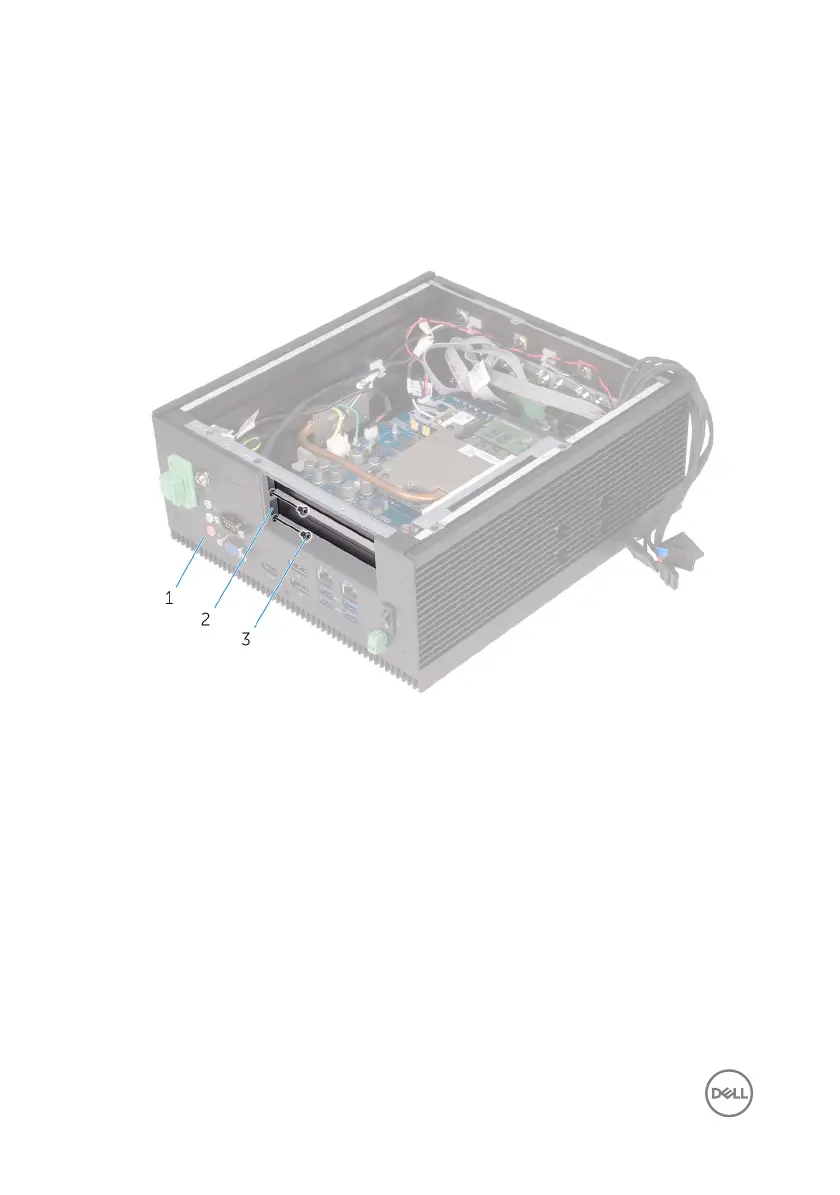

1 chassis 2 PCI/PCIe ller plate
3 M3x5 countersunk screws (2)
2 Remove the screws that secure the PCI/PCIe ller-plate bracket to the chassis.
3 Remove the bracket from the chassis.
