Dell Embedded Box PC5000 Service Manual
5
of 1
of 1 rating
136 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
5

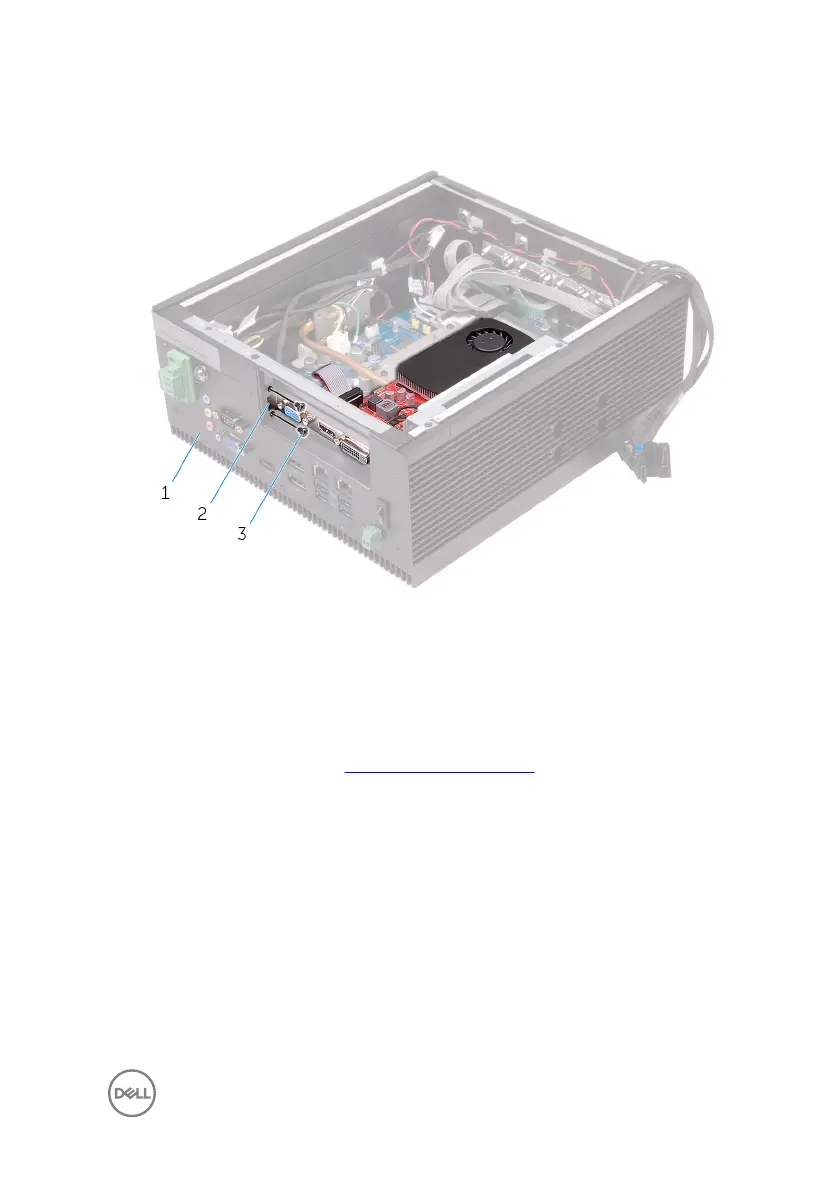

Replace the scr
ews that secur
e the PCI/PCIe card and the
ller
plat
e to the
chassis.
1
chassis
2
ller
plat
e
3
M3x5 count
ersunk scr
ews (2
)
P
ost
-r
equisit
es
Follow st
ep 2 to st
ep 8 in “
Replacing the back cov
er
”
.
49
48
50
Table of Contents
Default Chapter
3
Table of Contents
3
Before Working Inside Your Embedded Box PC
11
Before You Begin
11
Safety Instructions
11
Recommended Tools
12
Screw List
13
After Working Inside Your Embedded Box PC
15
Technical Overview
16
System-Board Components
17
Removing the Back Cover
19
Procedure
20
Replacing the Back Cover
23
Procedure
23
Removing the Hard-Drive Cage
24
Prerequisites
24
Procedure
24
Replacing the Hard-Drive Cage
26
Procedure
26
Post-Requisites
26
Removing the Drives from the Hard-Drive Cage
27
Prerequisites
27
Procedure
27
Procedure to Remove Bottom Drive
28
Replacing the Drives in to the Hard-Drive Cage
30
Procedure
30
Procedure to Replace Bottom Drive
30
Post-Requisites
30
Removing the Solid-State Drive from Bracket
31
Prerequisites
31
Procedure
31
Replacing the Solid-State Drive in to Bracket
33
Procedure
33
Post-Requisites
33
Removing the Interposer Board
34
Prerequisites
34
Procedure
34
Replacing the Interposer Board
36
Procedure
36
Post-Requisites
36
Installing a Pci/Pcie Card
37
Prerequisites
37
Procedure
38
Post-Requisites
42
Removing the Pci/Pcie Card
43
Prerequisites
43
Procedure
44
Replacing the Pcie Card
47
Procedure
47
Post-Requisites
49
Removing the Memory Module
50
Prerequisites
50
Procedure
50
Replacing the Memory Module
52
Procedure
52
Post-Requisites
54
Removing the WLAN-Antenna Connectors
55
Prerequisites
55
Procedure
55
Replacing the WLAN-Antenna Connectors
58
Procedure
58
Post-Requisites
58
Removing the WLAN Card
59
Prerequisites
59
Procedure
59
Replacing the WLAN Card
61
Procedure
61
Post-Requisites
63
Removing the WWAN-Antenna Connectors
64
Prerequisites
64
Procedure
64
Replacing the WWAN-Antenna Connectors
67
Procedure
67
Post-Requisites
67
Removing the WWAN Card
68
Prerequisites
68
Procedure
68
Replacing the WWAN Card
70
Procedure
70
Post-Requisites
72
Removing the SIM Card
73
Prerequisites
73
Procedure
73
Replacing the SIM Card
75
Procedure
75
Post-Requisites
76
Removing the Canbus Cable
77
Prerequisites
77
Procedure
77
Replacing the Canbus Cable
79
Procedure
79
Post-Requisites
79
Removing the Canbus Card
80
Prerequisites
80
Procedure
80
Replacing the Canbus Card
82
Procedure
82
Post-Requisites
83
Removing the Coin-Cell Battery
84
Prerequisites
84
Procedure
84
Replacing the Coin-Cell Battery
86
Procedure
86
Post-Requisites
86
Removing the Intrusion Switch
87
Prerequisites
87
Procedure
87
Replacing the Intrusion Switch
89
Procedure
89
Post-Requisites
89
Removing the Serial Ports
90
Prerequisites
90
Procedure
91
Replacing the Serial Ports
93
Procedure
93
Post-Requisites
93
Removing the Bottom Cover
94
Prerequisites
94
Procedure
94
Replacing the Bottom Cover
96
Procedure
96
Post-Requisites
96
Removing the Riser Card
97
Prerequisites
97
Procedure
97
Replacing the Riser Card
100
Procedure
100
Post-Requisites
100
Removing the Heat Sink
101
Prerequisites
101
Procedure
101
Replacing the Heat Sink
103
Procedure
103
Post-Requisites
104
Removing the Power Connectors
105
Prerequisites
105
Procedure
105
Replacing the Power Connectors
108
Procedure
108
Post-Requisites
108
Removing the Top Cover
109
Prerequisites
109
Procedure
109
Replacing the Top Cover
112
Procedure
112
Post-Requisites
112
Removing the Power Switch
113
Prerequisites
113
Procedure
113
Replacing the Power Switch
115
Procedure
115
Post-Requisites
115
Removing the CPU Board
116
Prerequisites
116
Procedure
116
Replacing the CPU Board
118
Procedure
118
Post-Requisites
118
Removing the System Board
119
Prerequisites
119
Procedure
120
Replacing the System Board
123
Procedure
123
Post-Requisites
123
Entering the Service Tag in the BIOS Setup Program
124
BIOS Setup Program
125
Entering BIOS Setup Program
125
Clearing Forgotten Passwords
125
Clearing CMOS Settings
126
Removing the Dell Logo Board
128
Prerequisites
128
Procedure
129
Replacing the Dell Logo Board
132
Procedure
132
Post-Requisites
132
Technology and Components
134
Power
134
Processor
134
Mechanical
134
Peripherals
135
Wlan/Wwan
135
Zigbee
135
Canbus
136
5
Based on 1 rating
