Table 2. Features available on the front of the system
Item Ports, panels, and
slots
Icon Description
4 Right control panel N/A Contains the power button, USB port, iDRAC Direct micro port,
and the iDRAC Direct status LED.
5 Information tag
The Information tag is a slide-out label panel that contains
system information such as Service Tag, NIC, MAC address,
and so on. If you have opted for the secure default access
to iDRAC, the Information tag also contains the iDRAC secure
default password.
For more information about the ports, see the www.dell.com/poweredgemanuals section.

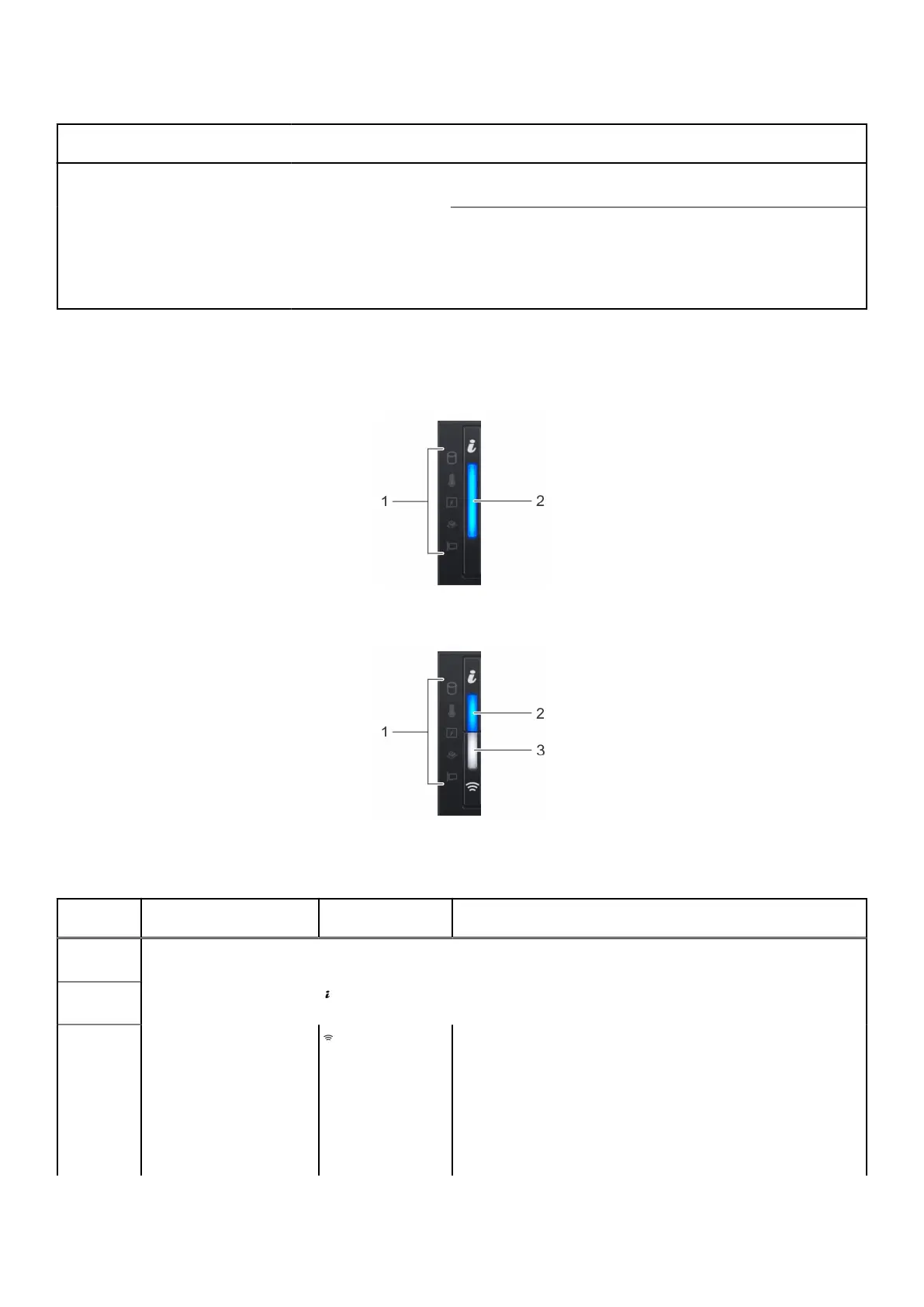

Left control panel view
Figure 6. Left control panel without optional iDRAC Quick Sync 2 indicator
Figure 7. Left control panel with optional iDRAC Quick Sync 2 indicator
Table 3. Left control panel (continued)
Item Indicator, button, or
connector
Icon Description
1 Status LED indicators N/A Indicates the status of the system. For more information, see
the Status LED indicators section.
2
System health and system
ID indicator
Indicates the system health. For more information, see the
System health and system ID indicator codes section.
3
iDRAC Quick Sync
2 wireless indicator
(optional)
Indicates if the iDRAC Quick Sync 2 wireless option is activated.
The Quick Sync 2 feature allows management of the system
using mobile devices. This feature aggregates hardware/
firmware inventory and various system level diagnostic/error
information that can be used in troubleshooting the system.
You can access system inventory, Dell Lifecycle Controller
logs or system logs, system health status, and also configure
iDRAC, BIOS, and networking parameters. You can also launch
System overview 11
