Dell EMC PowerEdge R7525 Service Manual

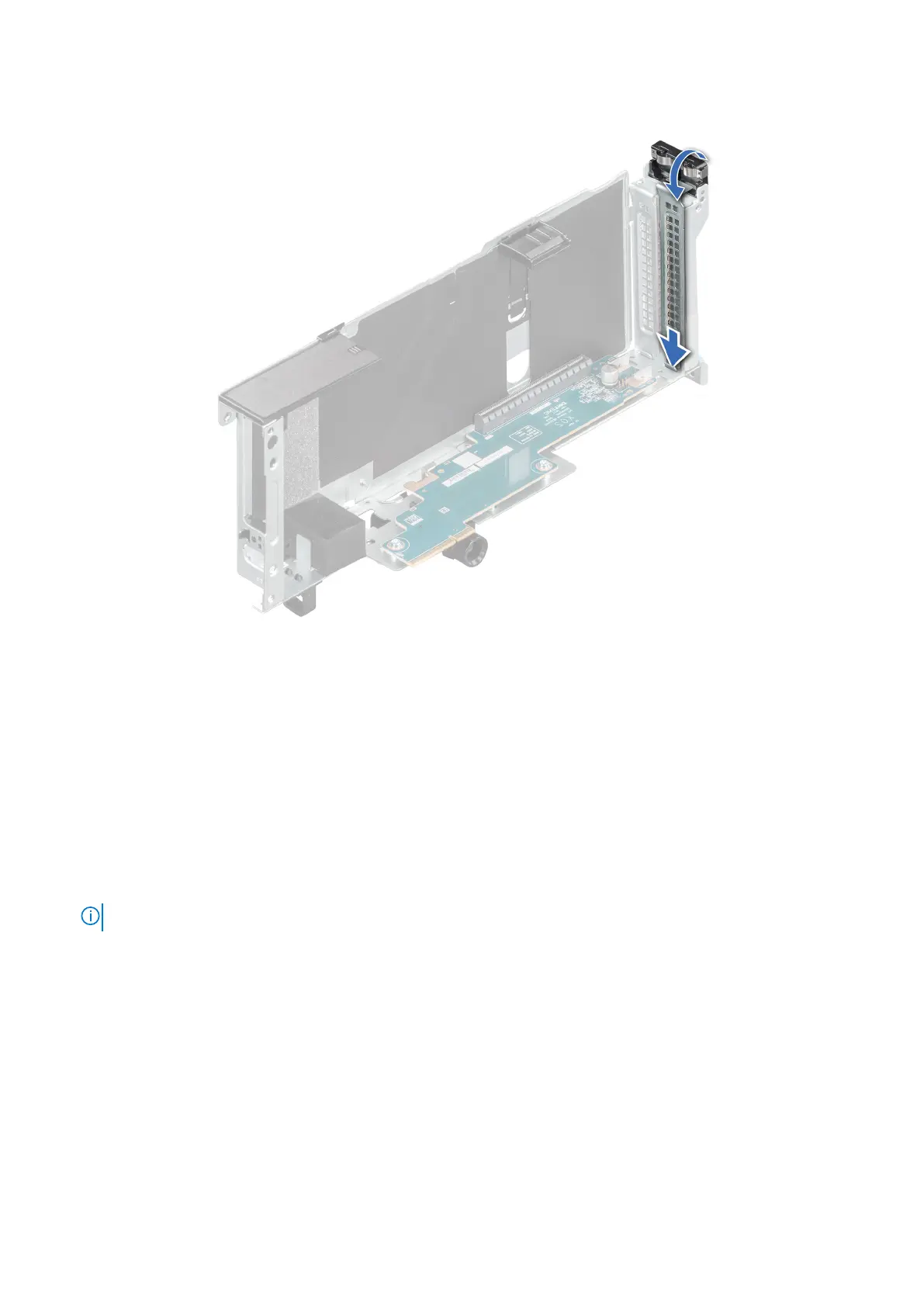

Figure 107. Installing the metal filler bracket
Next steps
1. Replace the GPU.
Installing a GPU
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. If installing a new expansion card, unpack it and prepare the card for installation.
NOTE: For instructions, see the documentation accompanying the card.
4. Remove the GPU air shroud top cover
Steps
1. To install the GPU on Riser 1:
a. Align the connector on the GPU with the connector on the riser.
b. Insert the GPU into the riser until it is fully seated.
c. Close the expansion card holder latch.
d. Press the black card holder latch on the GPU and riser to secure the GPU card to the riser.
e. Connect the GPU power cable to the GPU card.
Installing and removing system components
133

Dell EMC PowerEdge R7525 Specifications

General

Form Factor	2U Rack
Processor	Up to two AMD EPYC 7002 or 7003 Series processors, up to 64 cores per processor
Memory	32 DDR4 DIMM slots, up to 4TB
Storage	Up to 24x 2.5" SAS/SATA/NVMe drives, or 12x 3.5" SAS/SATA drives
RAID Controller	PERC H345
Power Supply	1100W Platinum
PCIe Slots	Up to 8 x PCIe Gen4 slots
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Microsoft Windows Server
