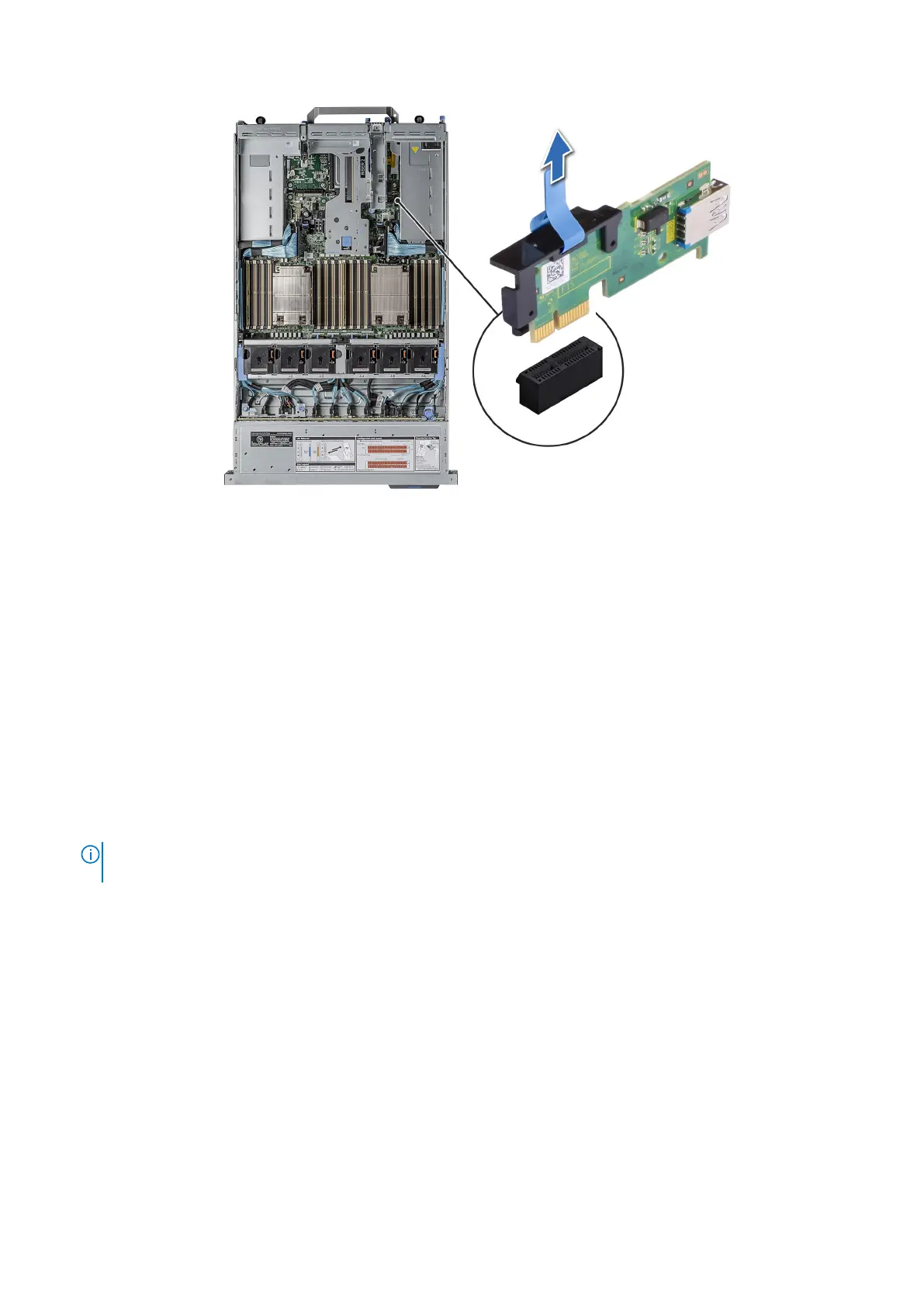

Figure 132. Removing the internal USB card
Next steps
1. Replace the internal USB card.
Installing the internal USB card
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the expansion card risers.
Steps
1. Connect the USB key to the internal USB card.
NOTE:
Ensure to install the internal USB card in the IDSDM/USB card slot and not in the J_R3_PCIE_PWR connector
slot.
2. Align the internal USB card with the connector on the system board and press firmly until the internal USB card is seated.
152
Installing and removing system components
