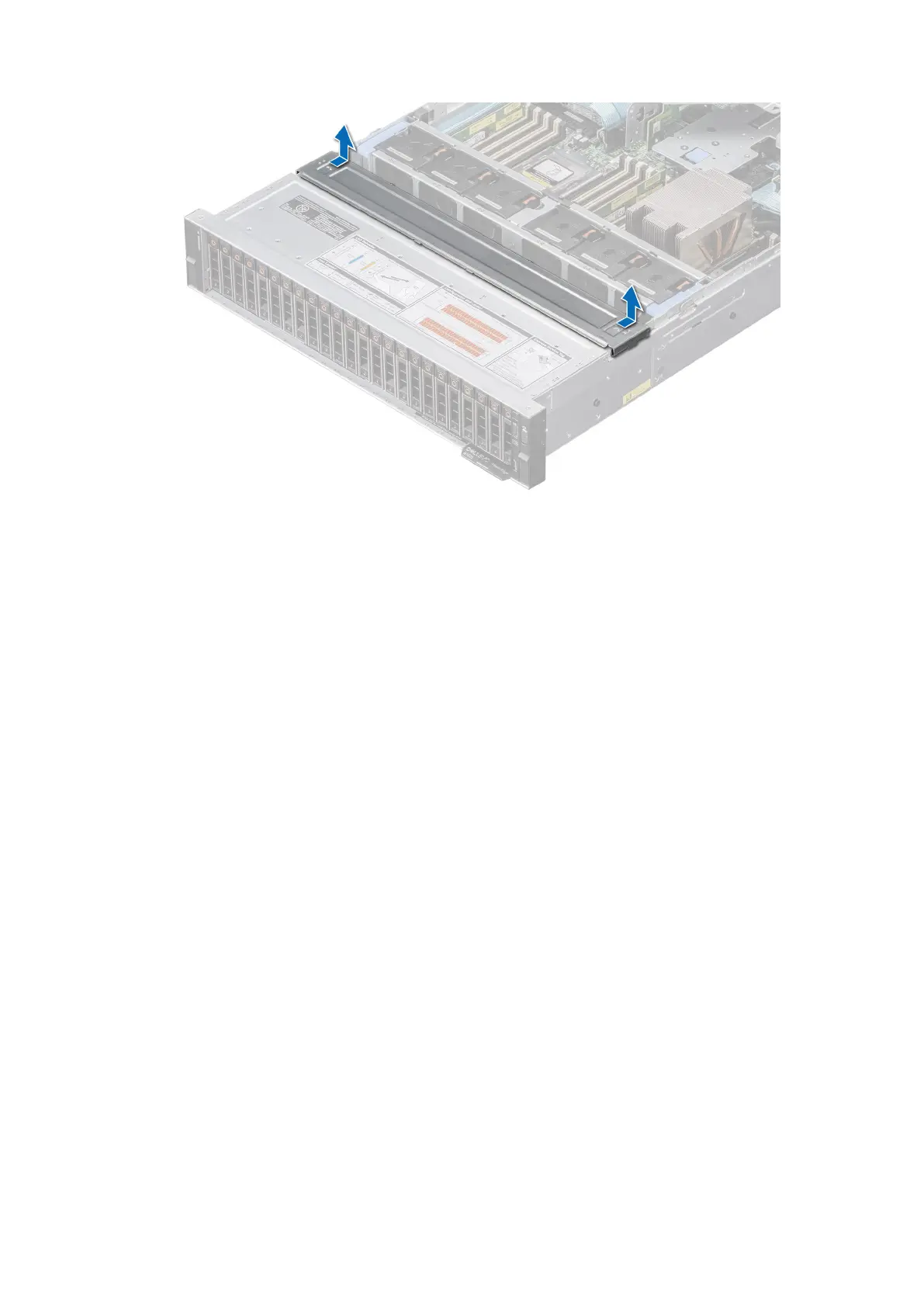

Figure 35. Removing the drive backplane cover
Next steps
1. Replace the drive backplane cover.
Installing the drive backplane cover
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
Steps
1. Align the drive backplane cover with the guide slots on the system.
2. Slide the drive backplane cover to the front of the system until the drive backplane cover fits into place.
40
Installing and removing system components

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dell EMC PowerEdge R7525 and is the answer not in the manual?

Dell EMC PowerEdge R7525 Specifications

General IconGeneral
Form Factor2U Rack
ProcessorUp to two AMD EPYC 7002 or 7003 Series processors, up to 64 cores per processor
Memory32 DDR4 DIMM slots, up to 4TB
StorageUp to 24x 2.5" SAS/SATA/NVMe drives, or 12x 3.5" SAS/SATA drives
RAID ControllerPERC H345
Power Supply1100W Platinum
PCIe SlotsUp to 8 x PCIe Gen4 slots
Operating System SupportRed Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Microsoft Windows Server
