Dell EMC PowerEdge R7525 Service Manual

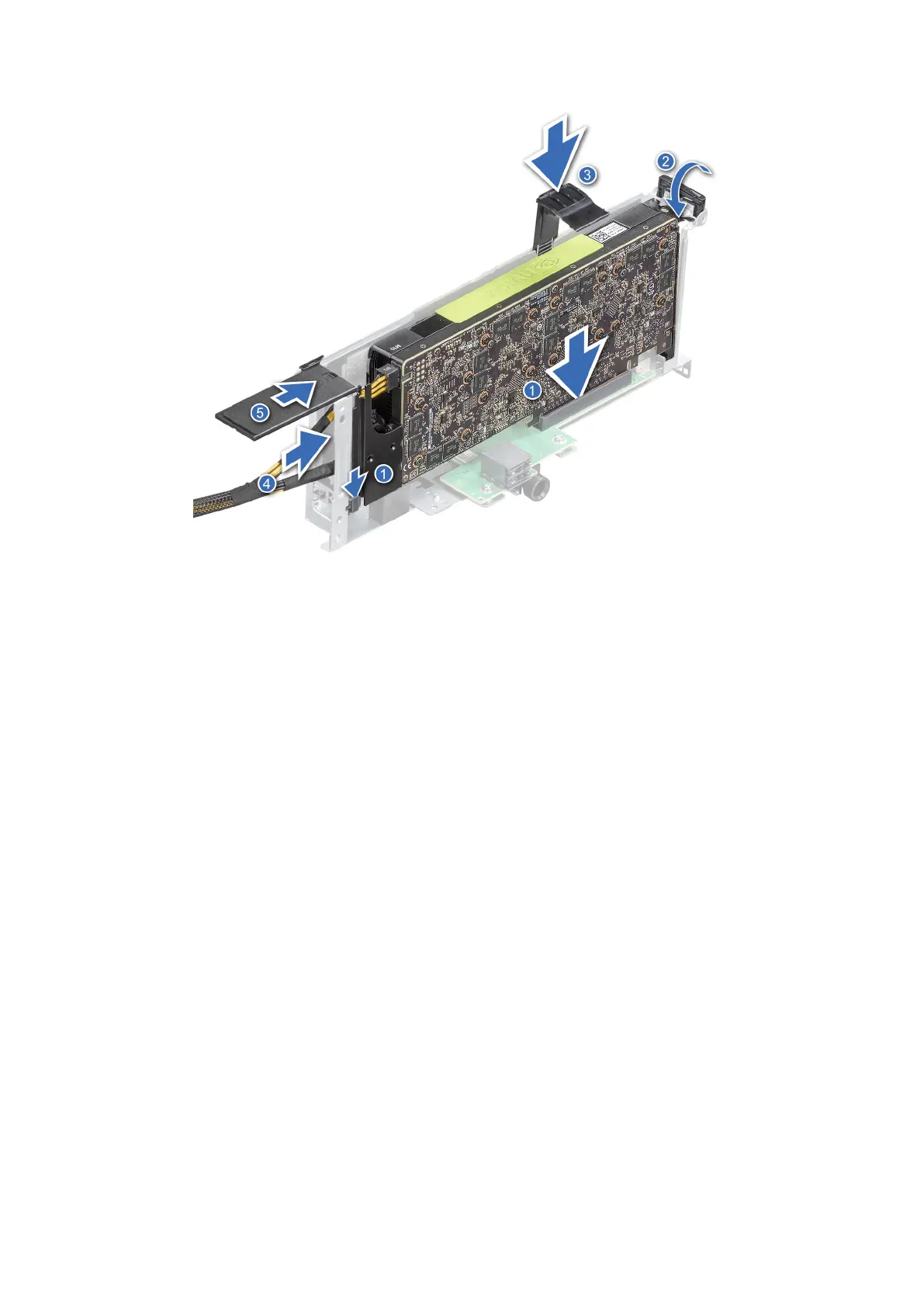

Figure 109. Installing GPU on Riser 3 and Riser 4
Next steps
1. If removed, install the GPU air shroud .
2. Install the GPU air shroud top cover.
3. Install the full length expansion card riser.
4. Follow the procedure listed in After working inside your system.
5. Install any device drivers required for the card as described in the documentation for the card.
Optional serial COM port
Removing the serial COM port
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove expansion card riser.
4. Disconnect the serial COM port cable from the connector on the rear I/O board.
Steps
1. Open the latch on the expansion card riser and slide the serial COM port out of the expansion card riser.
Installing and removing system components
135

Dell EMC PowerEdge R7525 Specifications

General

Form Factor	2U Rack
Processor	Up to two AMD EPYC 7002 or 7003 Series processors, up to 64 cores per processor
Memory	32 DDR4 DIMM slots, up to 4TB
Storage	Up to 24x 2.5" SAS/SATA/NVMe drives, or 12x 3.5" SAS/SATA drives
RAID Controller	PERC H345
Power Supply	1100W Platinum
PCIe Slots	Up to 8 x PCIe Gen4 slots
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Microsoft Windows Server
