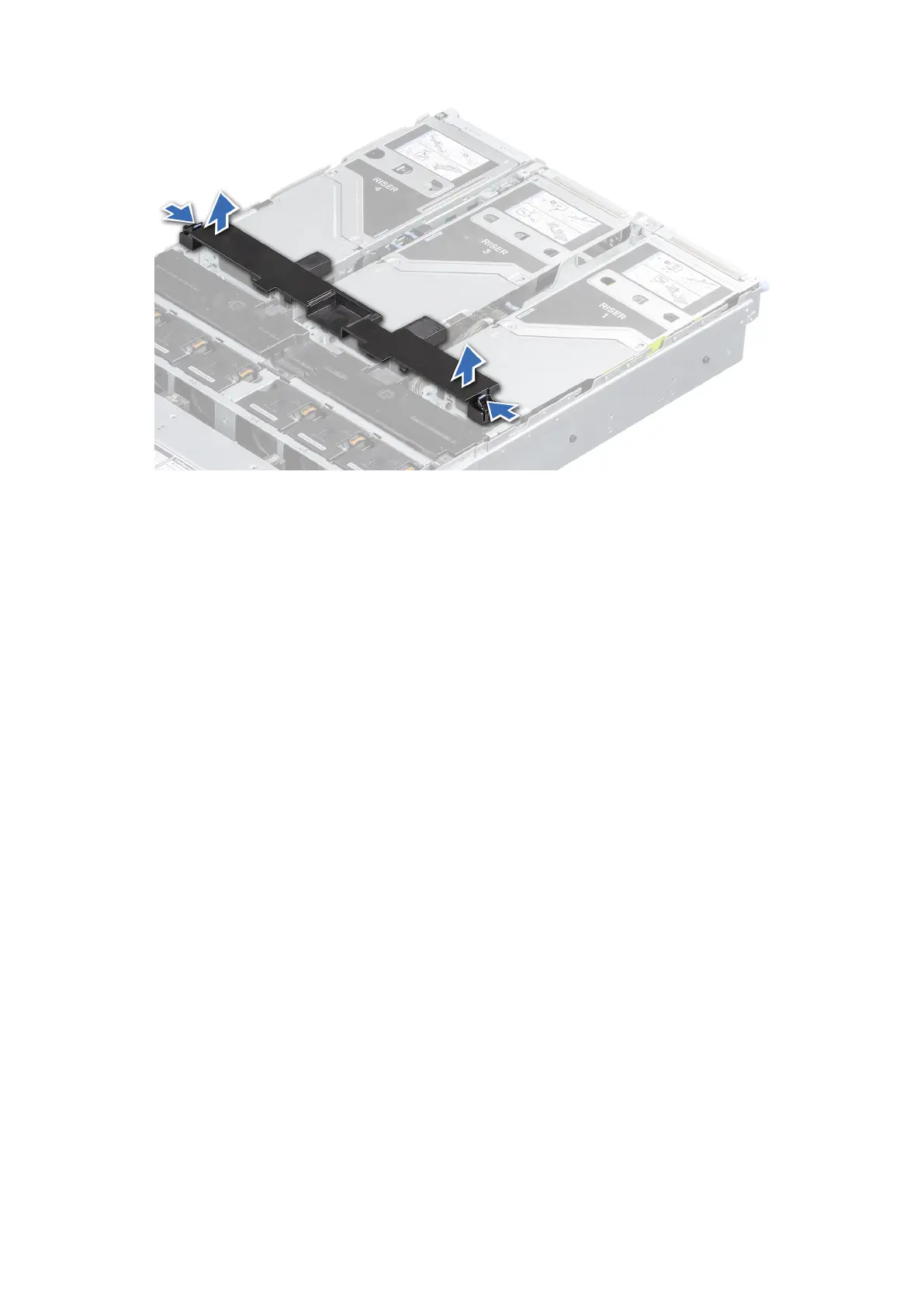

Figure 45. Removing the GPU air shroud top cover
Next steps
1. Replace the GPU air shroud top cover.
Installing the GPU air shroud top cover
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
1. Align the tabs on the top cover with the slots on the GPU air shroud.
2. Lower the top cover into the GPU air shroud until it is firmly seated.
50
Installing and removing system components
