Dell EMC PowerEdge R7525 Service Manual

Installing the serial COM port
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove expansion card riser.
4. Disconnect the serial COM port cable from the connector on the rear I/O board.
Steps
1. Open the latch on the expansion card riser and remove the filler bracket from the expansion card riser (Riser 3).

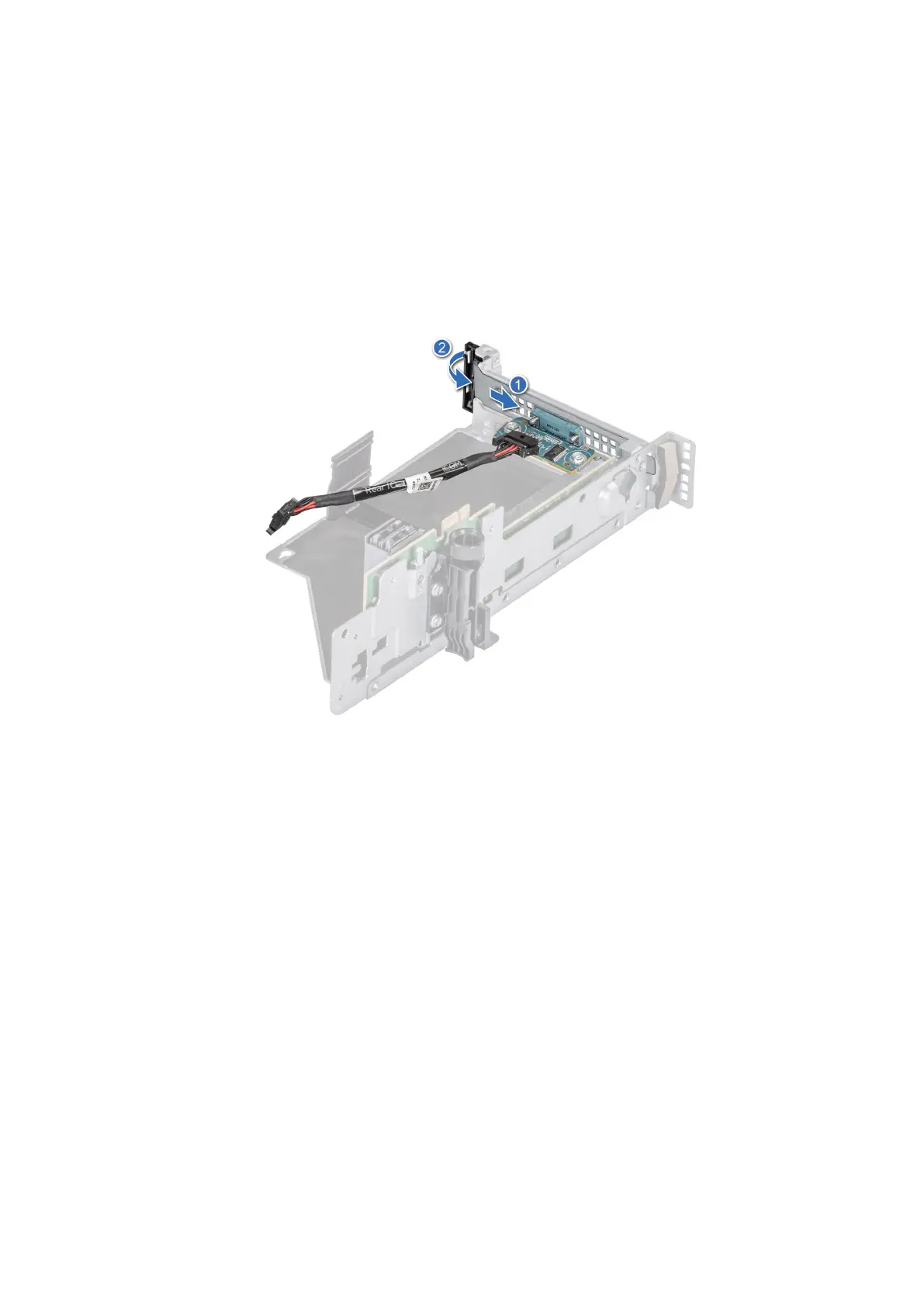

Figure 112. Installing the Serial COM port
2. Slide the serial COM port into the expansion card riser.
3. Connect the serial COM port cable to the serial port.
Installing and removing system components
137

Dell EMC PowerEdge R7525 Specifications

General

Form Factor	2U Rack
Processor	Up to two AMD EPYC 7002 or 7003 Series processors, up to 64 cores per processor
Memory	32 DDR4 DIMM slots, up to 4TB
Storage	Up to 24x 2.5" SAS/SATA/NVMe drives, or 12x 3.5" SAS/SATA drives
RAID Controller	PERC H345
Power Supply	1100W Platinum
PCIe Slots	Up to 8 x PCIe Gen4 slots
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Microsoft Windows Server
