Next steps
1. If removed, install the GPU air shroud .
2. Install the GPU air shroud top cover.
3. Follow the procedure listed in After working inside your system.
4. Install any device drivers required for the card as described in the documentation for the card.
Removing a GPU
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. If applicable, disconnect the cables from the expansion card.
4. Remove the GPU air shroud top cover
5. Remove the full length expansion card riser.
Steps
1. Open the expansion-card latch, and remove the metal filler bracket away from the riser.

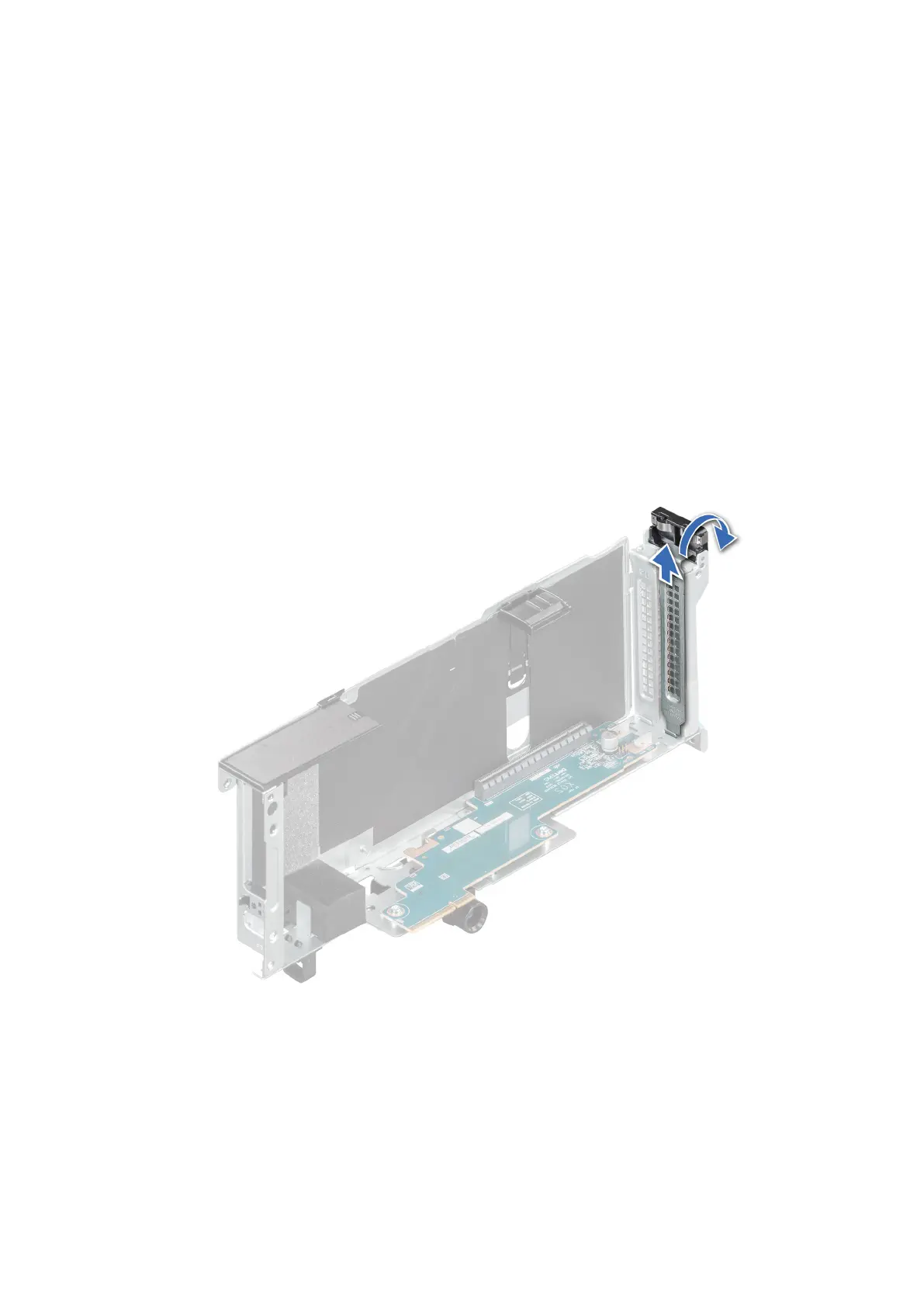

Figure 104. Removing the metal filler bracket
2. To remove the GPU from Riser 1:
a. Disconnect the GPU power cable from the GPU card.
b. Press the button, and pull the black card holder before removing the GPU card from the riser.
c. Open the expansion card holder latch on the riser.
d. Hold the GPU card by the edges and pull the card until the card edge connector disengages from the GPU card
connector on the riser.
130
