Next steps
1. Replace the full length expansion card riser.
Installing the full length expansion card risers
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. If removed, install the GPU into the expansion card risers.
Steps
1. To install the full length expansion card Risers 1A and 3A:
a. Connect the GPU cable to the system board.
b. Holding the edges or the touch points, align the holes on the expansion card riser with the guides on the system board.
c. Lower the expansion card riser into place and press the touch points until the expansion card riser connector is fully
seated on the system board connector.
d. Tighten the captive screws on the risers and system if any.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.

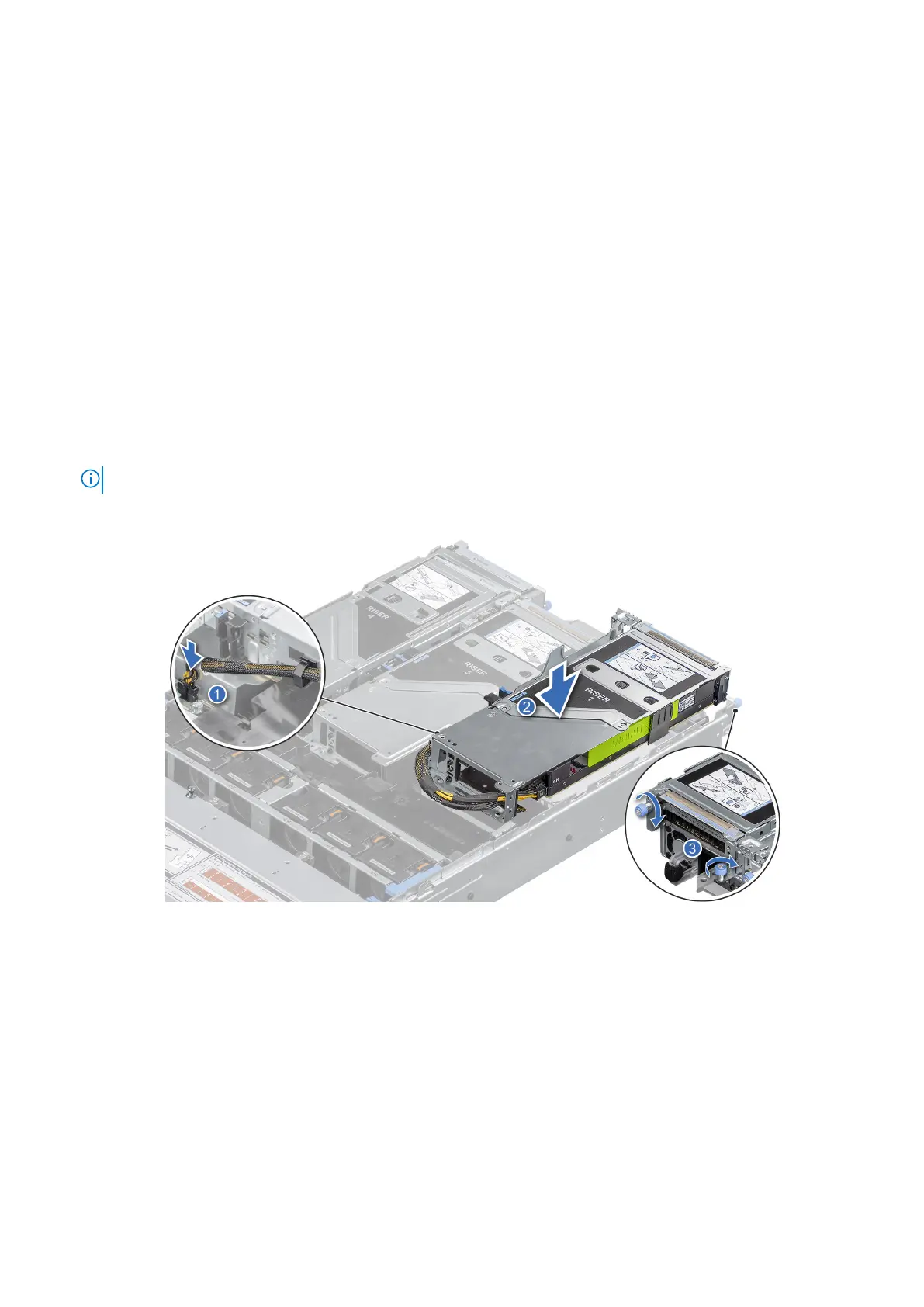

Figure 101. Installing the expansion card riser (Riser 1A)
128
Installing and removing system components

Dell EMC PowerEdge R7525 Specifications

General

Form Factor	2U Rack
Processor	Up to two AMD EPYC 7002 or 7003 Series processors, up to 64 cores per processor
Memory	32 DDR4 DIMM slots, up to 4TB
Storage	Up to 24x 2.5" SAS/SATA/NVMe drives, or 12x 3.5" SAS/SATA drives
RAID Controller	PERC H345
Power Supply	1100W Platinum
PCIe Slots	Up to 8 x PCIe Gen4 slots
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Microsoft Windows Server
