Table 3. Left control panel
Item Indicator, button, or
connector
Icon Description
the virtual Keyboard, Video, and Mouse (KVM) viewer and
virtual Kernel-based Virtual Machine (KVM), on a supported
mobile device. For more information, see the Integrated Dell
Remote Access Controller User's Guide at www.dell.com/
poweredgemanuals
NOTE: For more information about the indicator codes, see the System diagnostics and indicator codes section.

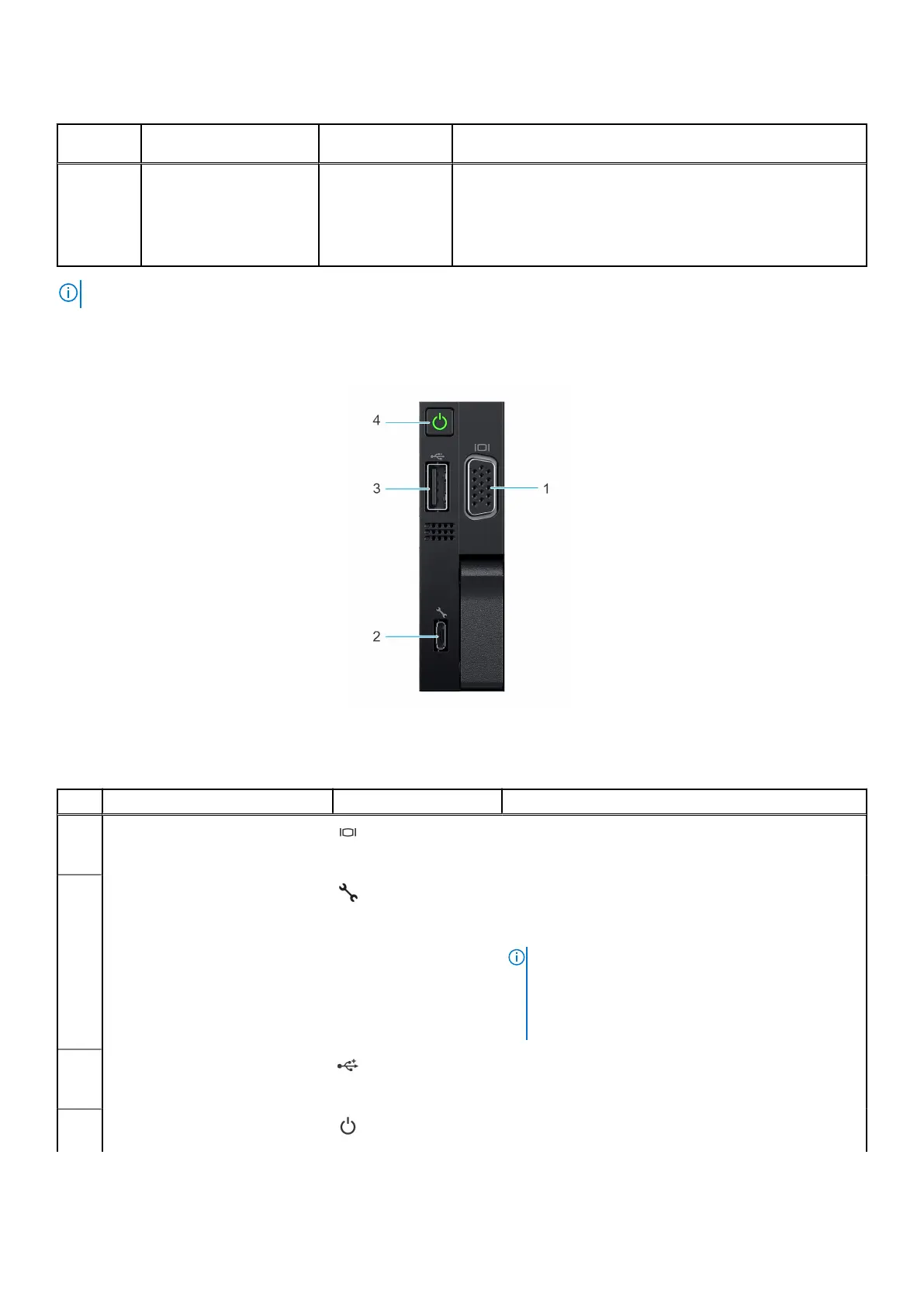

Right control panel view
Figure 8. Right control panel view
Table 4. Right control panel (continued)
Item Indicator or button Icon Description
1 VGA port Enables you to connect a display device to the
system. For more information, see the www.dell.com/
poweredgemanuals section.
2
iDRAC Direct port (Micro-AB
USB)
The iDRAC Direct port (Micro-AB USB) enables you to
access the iDRAC Direct Micro-AB features. For more
information, see the iDRAC User's Guide available at
https://www.dell.com/idracmanuals .
NOTE: You can configure iDRAC Direct by using
a USB to micro USB (type AB) cable, which
you can connect to your laptop or tablet. Cable
length should not exceed 3 feet (0.91 meters).
Performance could be affected by cable quality.
3
USB 2.0-compliant port The USB port is a 4-pin connector and 2.0-compliant.
This port enables you to connect USB devices to the
system.
4
Power button Indicates if the system is powered on or off. Press the
power button to manually power on or off the system.
12 System overview
