Dell EMC PowerEdge R7525 Service Manual

Table 4. Right control panel
Item Indicator or button Icon Description
NOTE: Press the power button to gracefully shut
down the ACPI-compliant operating system.
NOTE: For more information on the ports, see the www.dell.com/poweredgemanuals section.
Rear view of the system

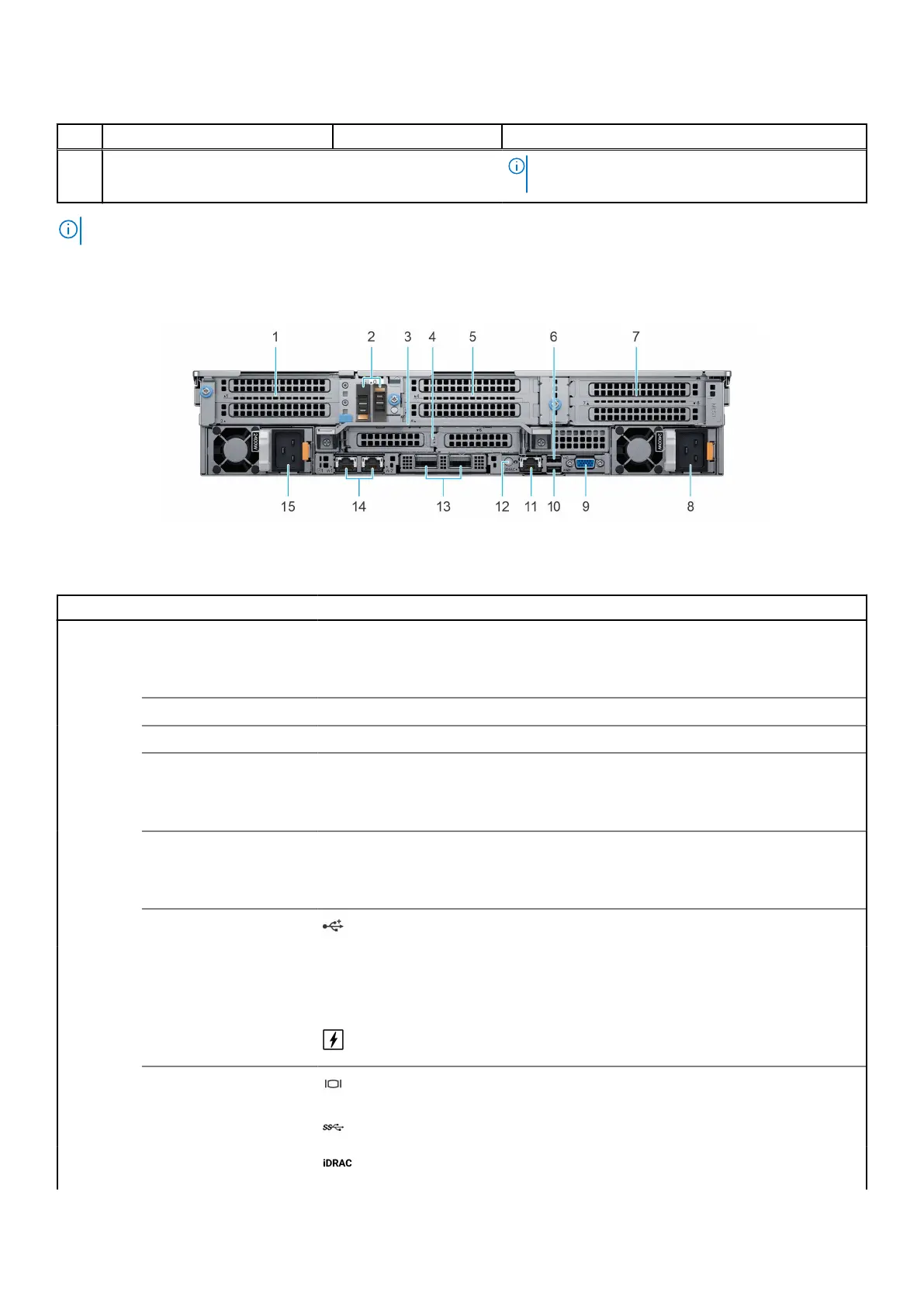

Figure 9. Rear view of the system
Table 5. Rear view of the system
Item Ports, panels, or slots Icon Description
1 PCIe expansion card riser
1 (slot 1 and slot 2)
N/A The expansion card riser enables you to connect PCI Express
expansion cards. For more information on the expansion
cards that are supported on your system, see www.dell.com/
poweredgemanuals section.
2
BOSS S2 Card (optional) N/A This slot supports the BOSS S2 module
3
Rear Handle N/A To lift the system.
4
PCIe expansion card riser
2 (slot 3 and slot 6)
N/A The expansion card riser enables you to connect PCI Express
expansion cards. For more information on the expansion
cards that are supported on your system, see www.dell.com/
poweredgemanuals section.
5
PCIe expansion card riser
3 (slot 4 and slot 5)
N/A The expansion card riser enables you to connect PCI Express
expansion cards. For more information on the expansion
cards that are supported on your system, see www.dell.com/
poweredgemanuals section.
6
USB 2.0 port (1) This port is USB 2.0-compliant.
7 PCIe expansion card riser
4 (slot 7 and slot 8)
N/A The expansion card riser enables you to connect PCI Express
expansion cards. For more information on the expansion
cards that are supported on your system, see www.dell.com/
poweredgemanuals section.
8 Power supply unit (PSU
2)
For more information about the PSU configurations, see the
www.dell.com/poweredgemanuals section.
9
VGA port Enables you to connect a display device to the system. For more
information, see the www.dell.com/poweredgemanuals section.
10 USB 3.0 port (1) This port is USB 3.0-compliant.
11 iDRAC dedicated port Enables you to remotely access iDRAC. For more information, see
the iDRAC User's Guide at www.dell.com/poweredgemanuals
System overview 13

Dell EMC PowerEdge R7525 Specifications

General

Form Factor	2U Rack
Processor	Up to two AMD EPYC 7002 or 7003 Series processors, up to 64 cores per processor
Memory	32 DDR4 DIMM slots, up to 4TB
Storage	Up to 24x 2.5" SAS/SATA/NVMe drives, or 12x 3.5" SAS/SATA drives
RAID Controller	PERC H345
Power Supply	1100W Platinum
PCIe Slots	Up to 8 x PCIe Gen4 slots
Operating System Support	Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Microsoft Windows Server
