Steps

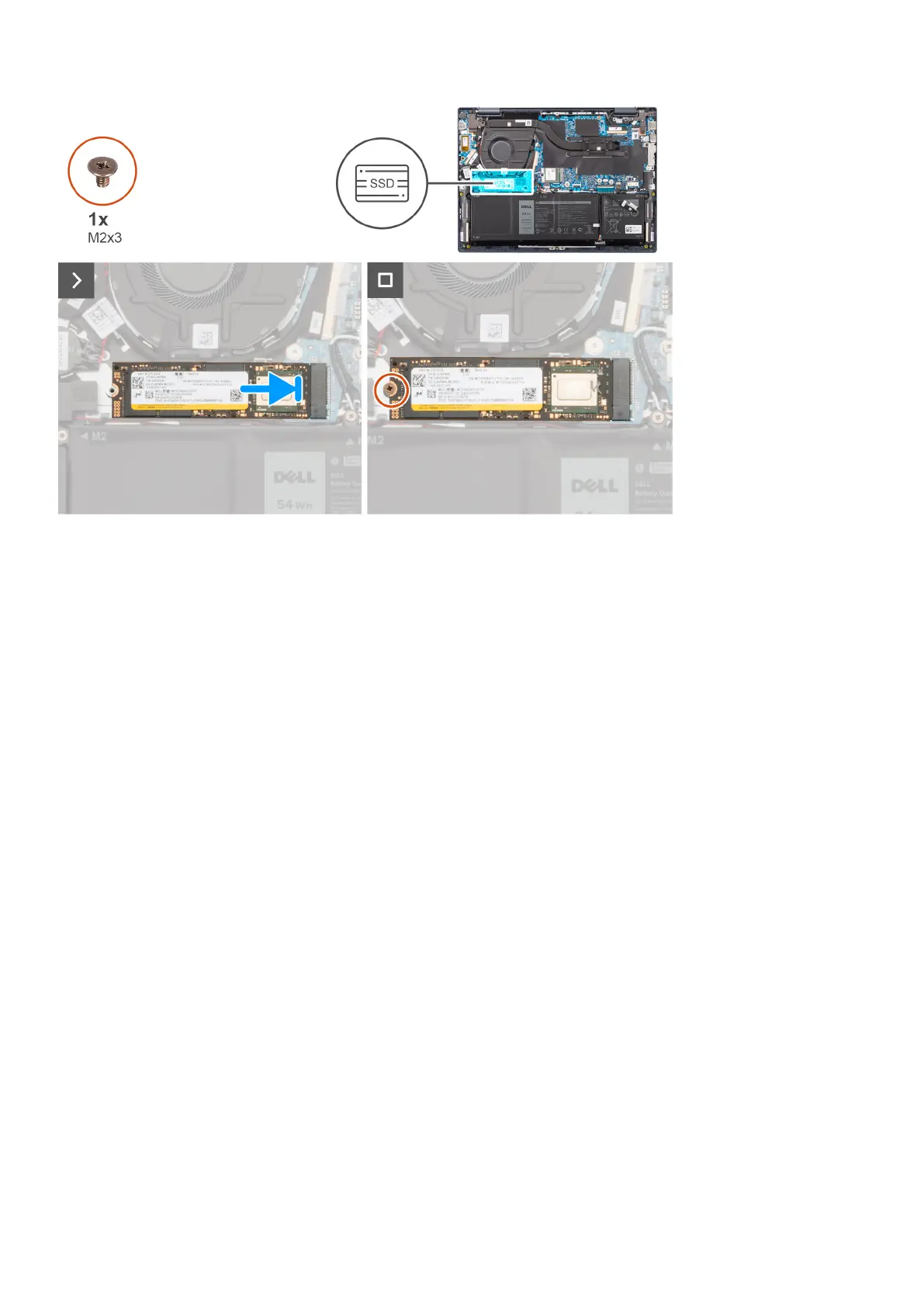

1. Align the notch on the M.2 2280 solid-state drive to the tab on the M.2 card slot on the system board.
2. At an angle, slide and place the M.2 2280 solid-state drive into the M.2 card slot on the system board.
3. Replace the screw (M2x3) to secure the M.2 2280 solid-state drive bracket to the palm-rest and keyboard assembly.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Wireless card
Removing the wireless card
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following images indicate the location of the wireless card and provide a visual representation of the removal procedure.
