Steps

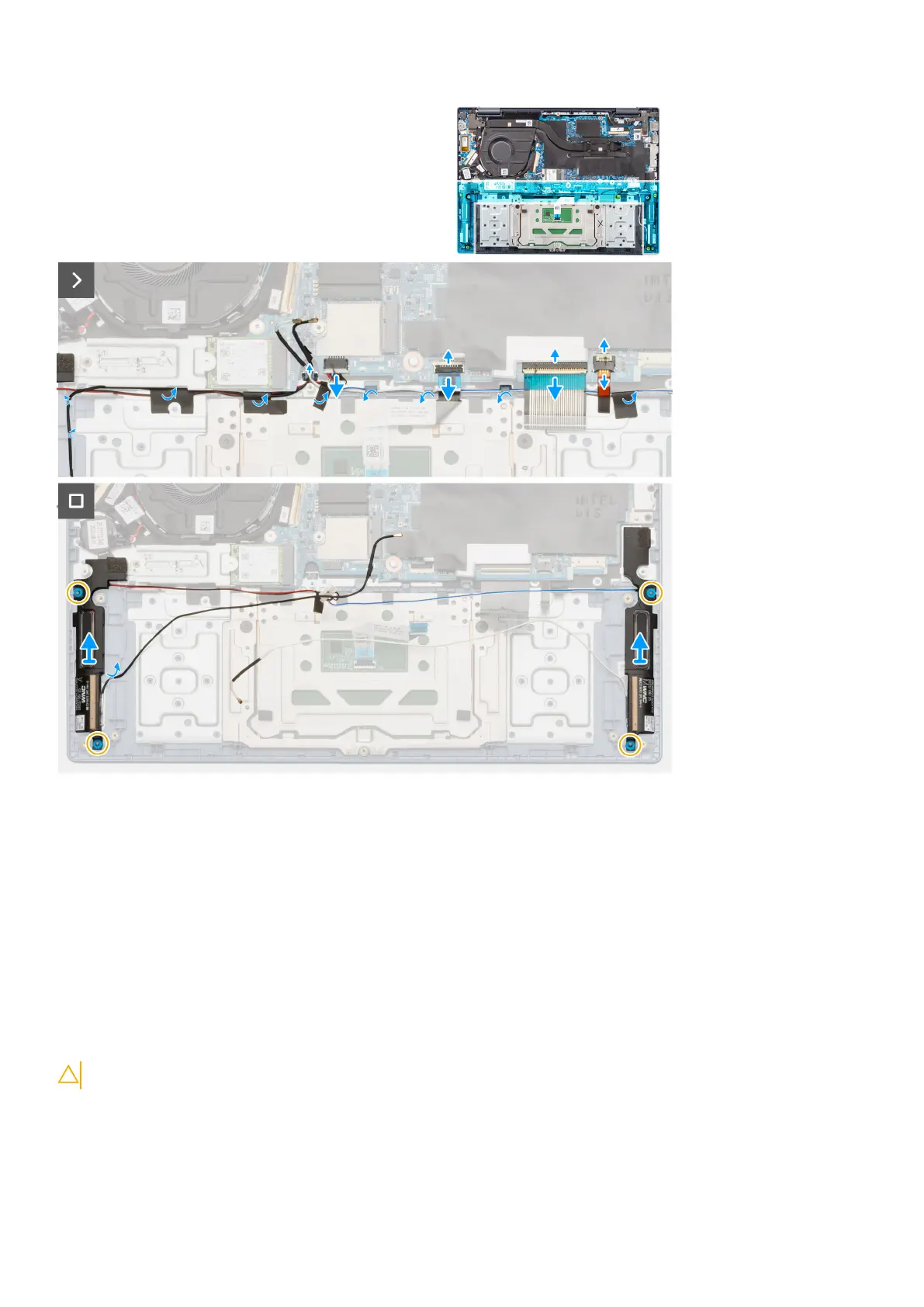

1. Open the latch and disconnect the touchpad cable from the connector on the system board.
2. Open the latch and disconnect the keyboard cable from the connector on the system board.
3. Open the latch and disconnect the keyboard-backlight cable from the connector on the system board.
4. Peel back the tapes that secure the speaker cables and the wireless-antenna cables to the palm-rest and keyboard assembly.
5. Disconnect the speaker cable from the connector on the system board.
6. Unroute and remove the wireless-antenna cables and the speaker cables from the routing guides on palm-rest and keyboard
assembly.
7. Lift the speakers, along with the speaker cables and the wireless-antenna cables, off the palm-rest and keyboard assembly.
Installing the speakers
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
56
Removing and installing Field Replaceable Units (FRUs)
