Steps

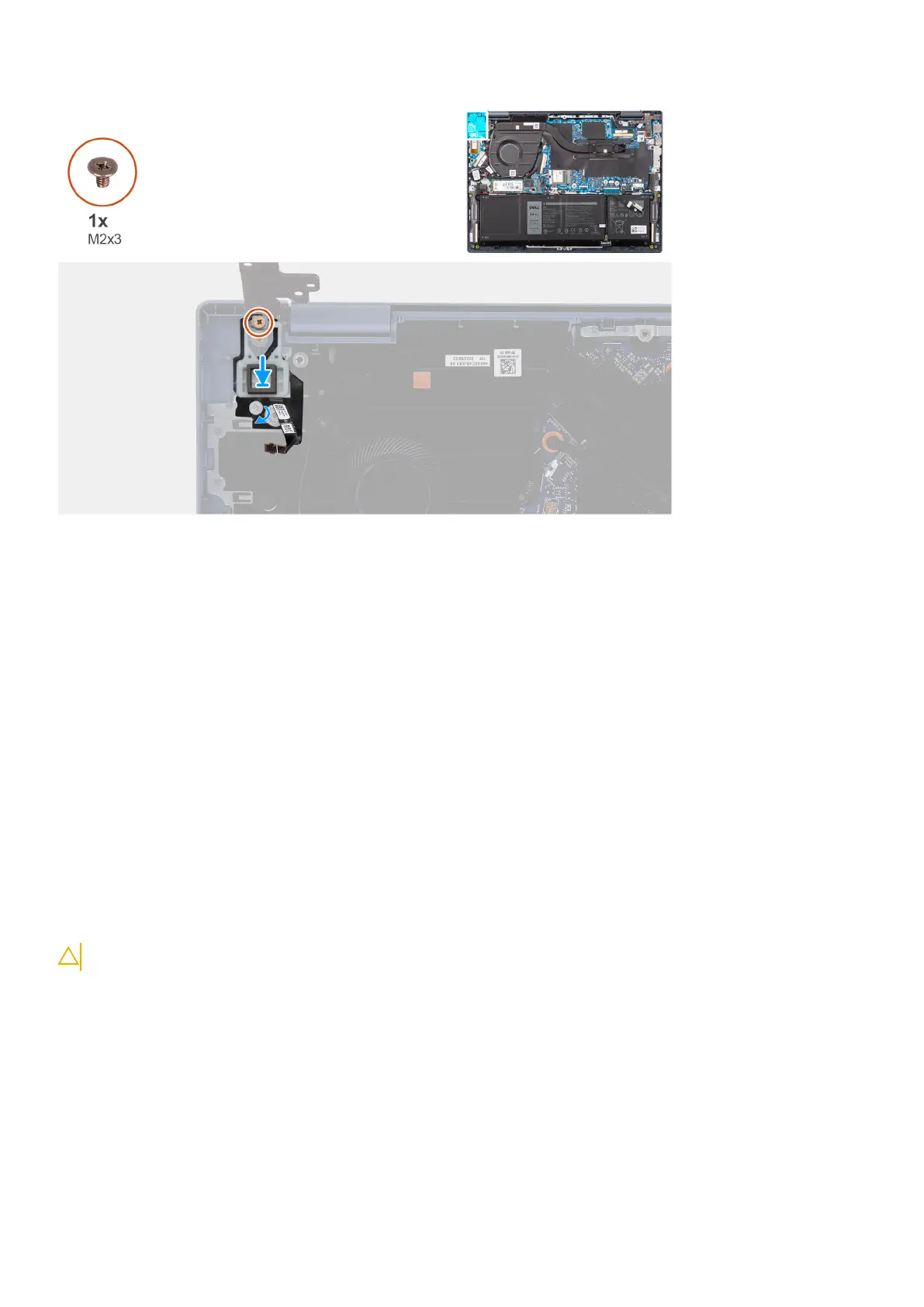

1. Place the power button with optional fingerprint reader in the slot on the palm-rest and keyboard assembly.
2. Align the screw hole on the power button with optional fingerprint reader to the screw hole on the palm-rest and keyboard
assembly.
3. Replace the screw (M2x3) to secure the power button with optional fingerprint reader to the palm-rest and keyboard
assembly.
4. Adhere the tape to secure the fingerprint reader flexible printed circuits cable to the palm-rest and keyboard assembly.
Next steps
1. Install the I/O daughter-board.
2. Install the I/O daughter-board cable.
3. Install the base cover.
4. Follow the procedure in After working inside your computer.
Display assembly
Removing the display assembly
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following images indicate the location of the display assembly and provide a visual representation of the removal procedure.
Removing and installing Field Replaceable Units (FRUs)
71
